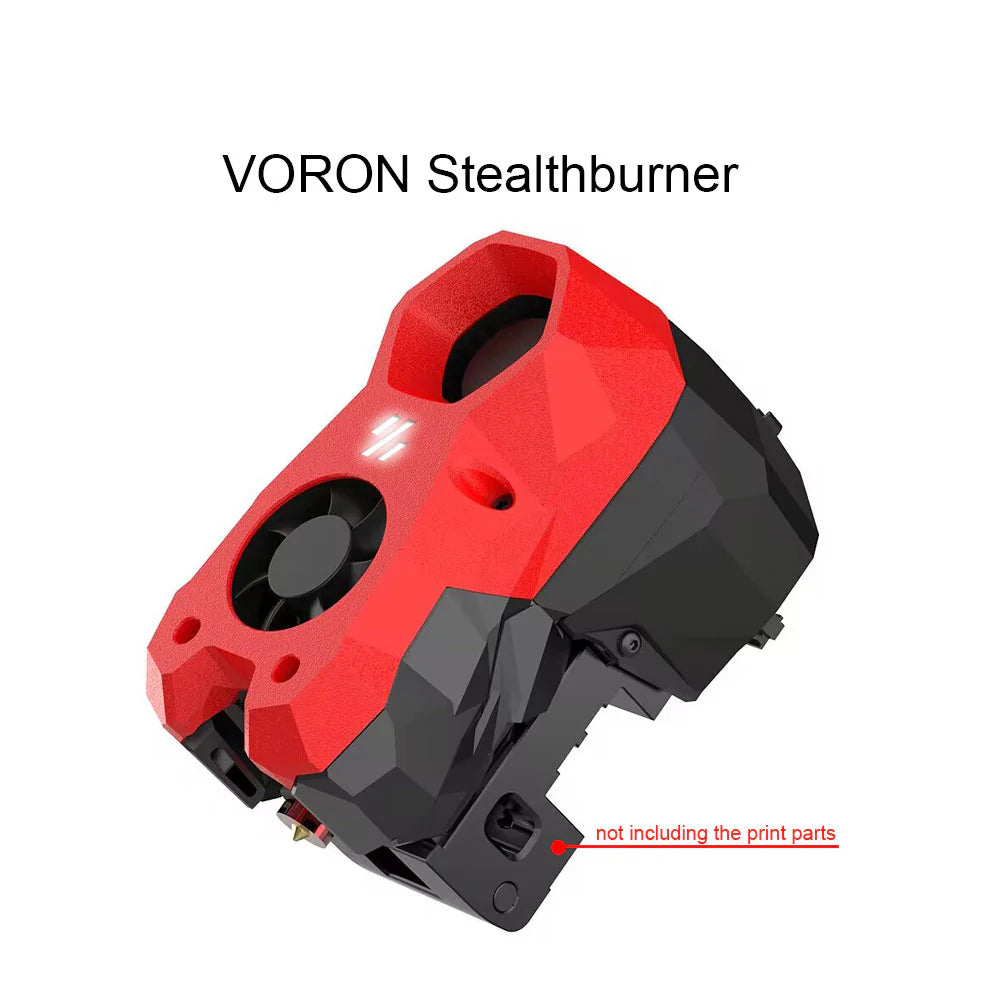

FYSETC VORON Stealth burner Toolhead kit

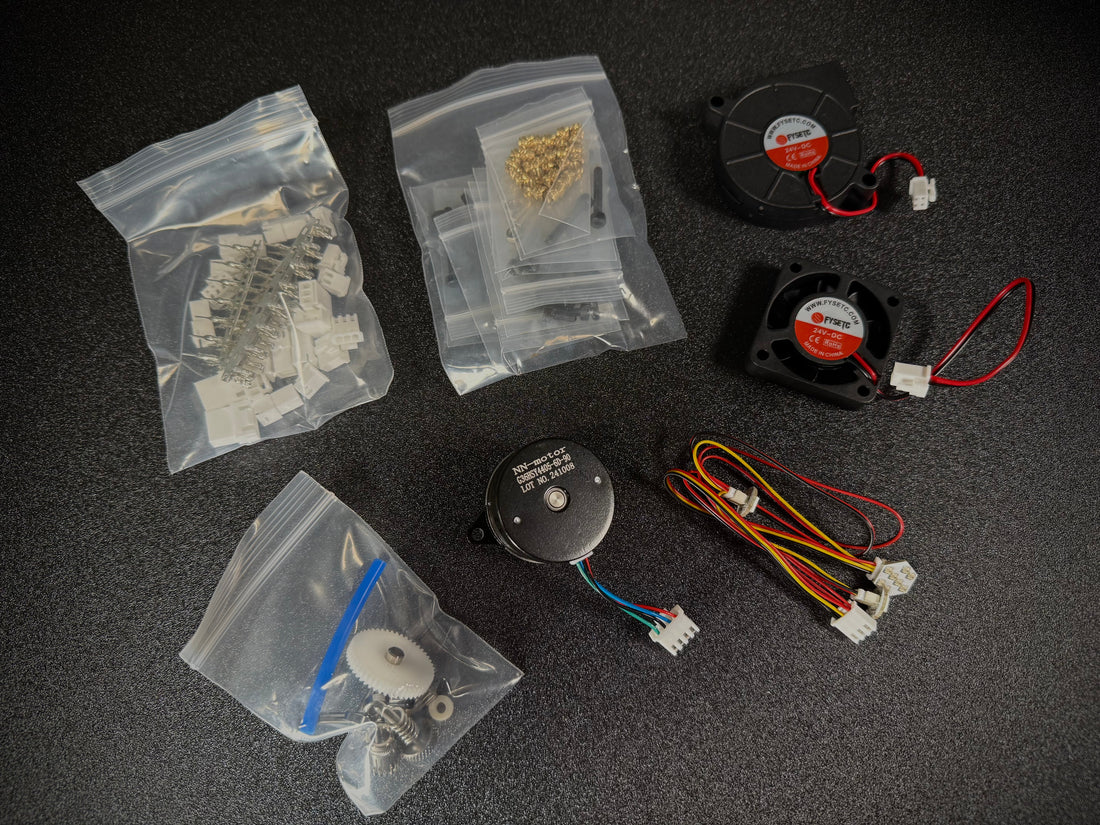

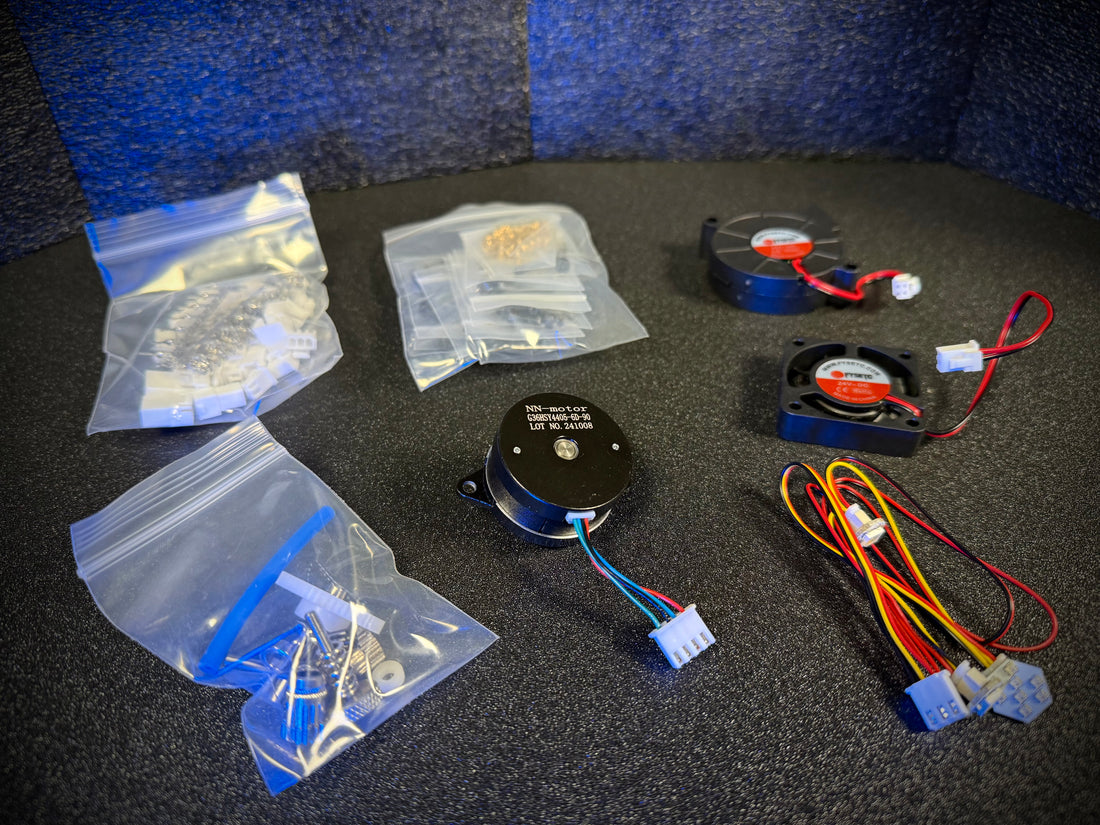

This hardware kit comes with all the hardware needed to build a stealth burner toolhead, just add your printed parts.

Specifications:

1. Compatible Models:

   • VORON 2.4

   • VORON Trident

   • VORON Switchwire

   • VORON 1.8

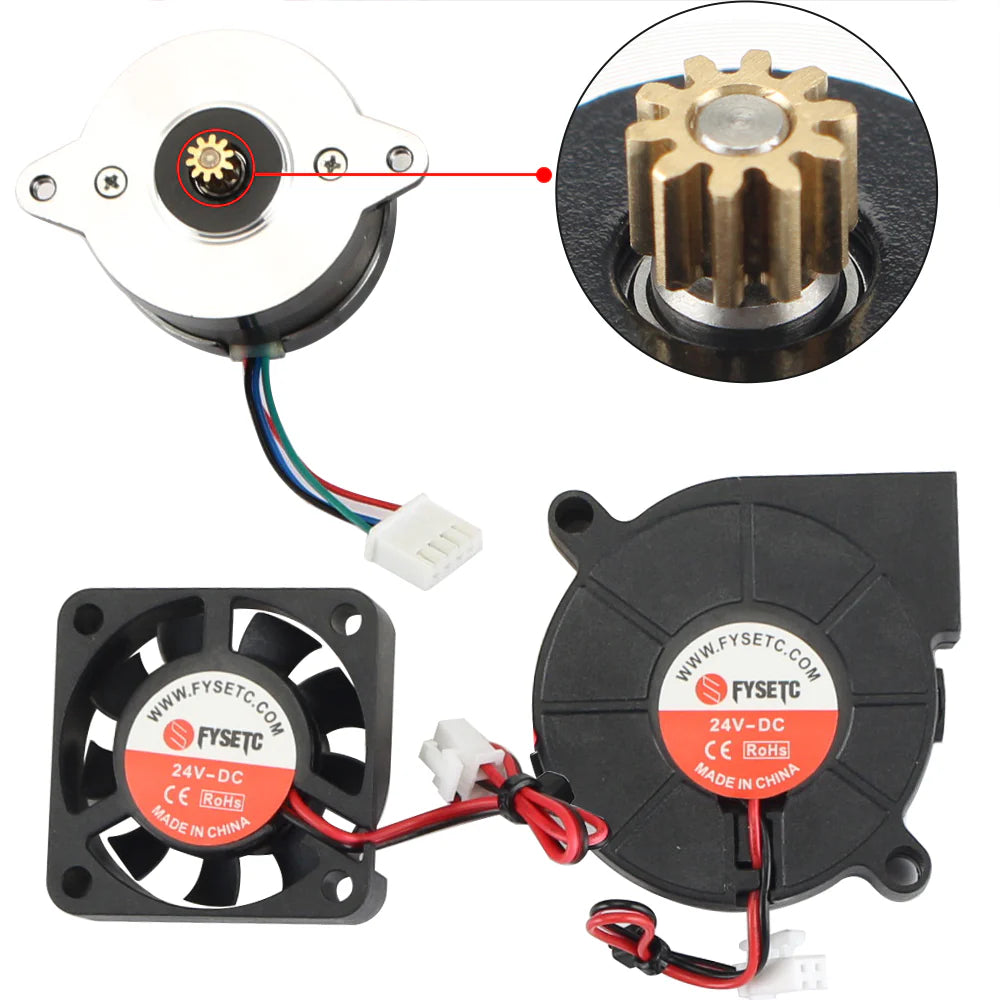

2. Fans are 24V
3. Extruder motor: Rated current 1A, 1.8 Degrees Class F insulation Holding torque 110nM

4. Official Information:

   • STL Files: Voron GitHub - Stealthburner Beta



5. Firmware Settings:
   When using this kit, you will need to modify your firmware as follows:




   rotation_distance: 22.0 # Bondtech 5mm Drive Gears gear_ratio: 50:10 # Stealthburner Gear Ratio

   After updating the gear ratio, please recalibrate the rotation_distance for best result

Notes:

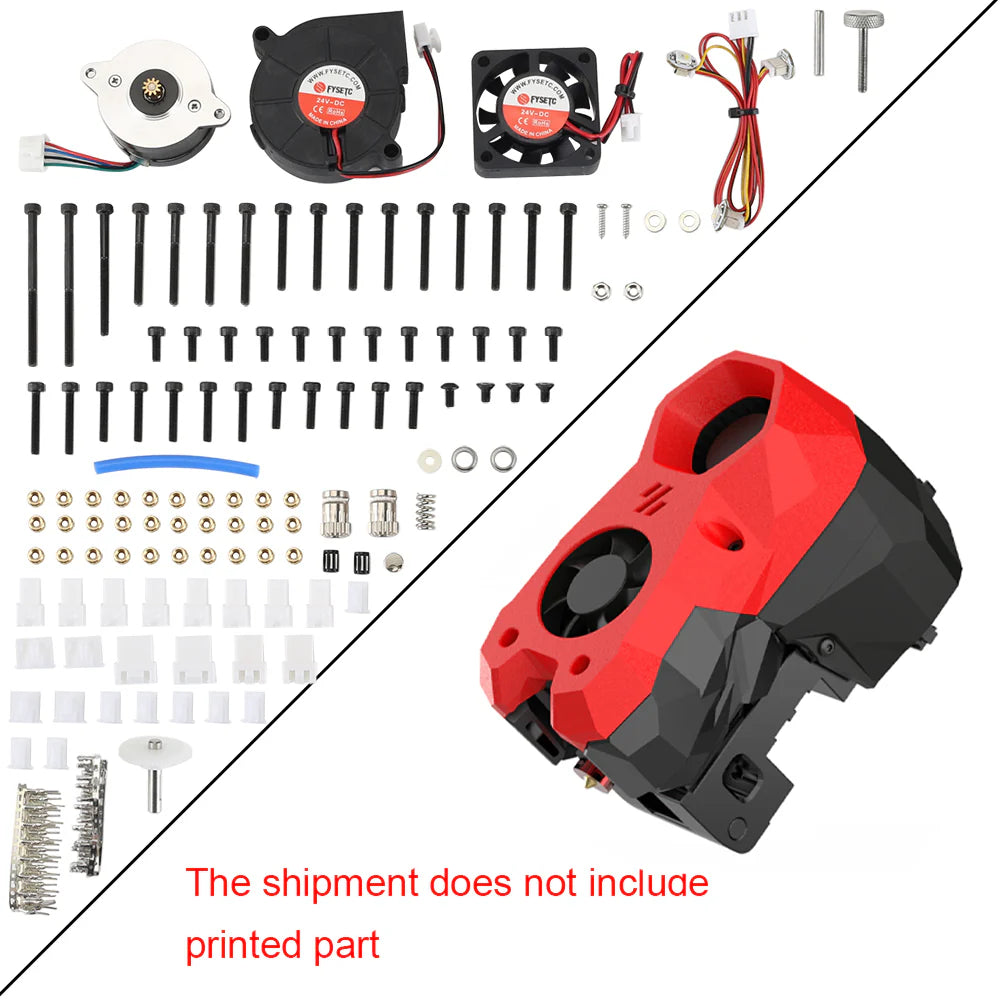

• This kit does not include:

  • Printed parts


  • Hotend or thermistor, only the hardware shown on the pictures is included.

• Important about LEDs:
  The LED beads included are custom and differ from the standard Voron design.
  You will need to print compatible parts specifically for these LEDs.
  Download the compatible STL files here:
  FYSETC Voron Stealthburner Kit Files
