Voron 2.4 R2 (Rev D) 3D Printer Kit by LDO

$1,299.99 Sale Save
Size 300mm With E3D voron Revo HF Touch screen & Pi 4B (Rev D)
Color black
Sale Save

Pre-order available

Voron 2.4 R2 (Rev D) 3D Printer Kit

The Voron 2.4 (also known as the v2.4) is the flagship 3D printer model by Voron Design, featuring a core XY motion system, quad-gantry leveling, and belted Z-axis for lightning-fast speeds and unparalleled quality.

LDO's latest Voron 2.4 kit is now updated to Rev D, including new exciting features and upgrades at a lower price. Building a v2.4 has never been easier!

NEW! Rev D Changes for June 2024

  1. Octopus board upgraded to LDO Leviathan board - In addition to 5x TMC2209 drivers, this new board features 2x TMC5160 HV compatible drivers for your A & B motors and is ready for 48V upgrades (sold separately)

  2. Nitehawk SB Toolhead - No more wire chains, LDO's latest kit includes the latest USB toolhead board for a cleaner and faster setup.

  3. Bondtech Integrated Drive Gear Assembly (IGDA) - One of the best extruder gears available in the market

  4. LED Lighting - Upgraded to COB LED strip

  5. Quality of life upgrades - Pre-installed magnet sheet on the metal bed, printed parts (for LDO mods), and pre terminated wiring all around.

Whether you're a seasoned pro or just starting out, the latest Voron 2.4 R2 (Rev D) 3D Printer Kit is the perfect machine for pushing the boundaries of what's possible in 3D printing. Get yours today and experience the future of making.

Rev D Batch Information

  • Batch 1 300 mm - Preorder still available, expected to arrive soon. Can be tracked UPS 1Z2X322V0316007972
  • Batch 1  350 mm - sold out can be tracked UPS 1Z2X322V0316007972
  • Batch 2 350 mm -  now  open for preorder, ships to Fabreeko Late August and arrives mid to late september.

🔥Special Deals🔥

Bundle the following items with your kit for a special discount. Just add them to your cart and the discount will be automatically applied.

What you need to source

Features

  • New for June 2024: (Rev D) now includes LDO Leviathan Board, LDO Nitehawk toolhead board, Bondtech IGDA, pre-installed bed magnet and included printed parts for LDO-specific mods (z endstop & other misc parts)
  • E3D Revo High-Flow Extruder with 60W heater.
  • Clockwork 2 motor included.
  • Complete panel set for enclosed printing.
  • LDO bed heater - Edge-to-edge heating pre-installed and wired ready to go!

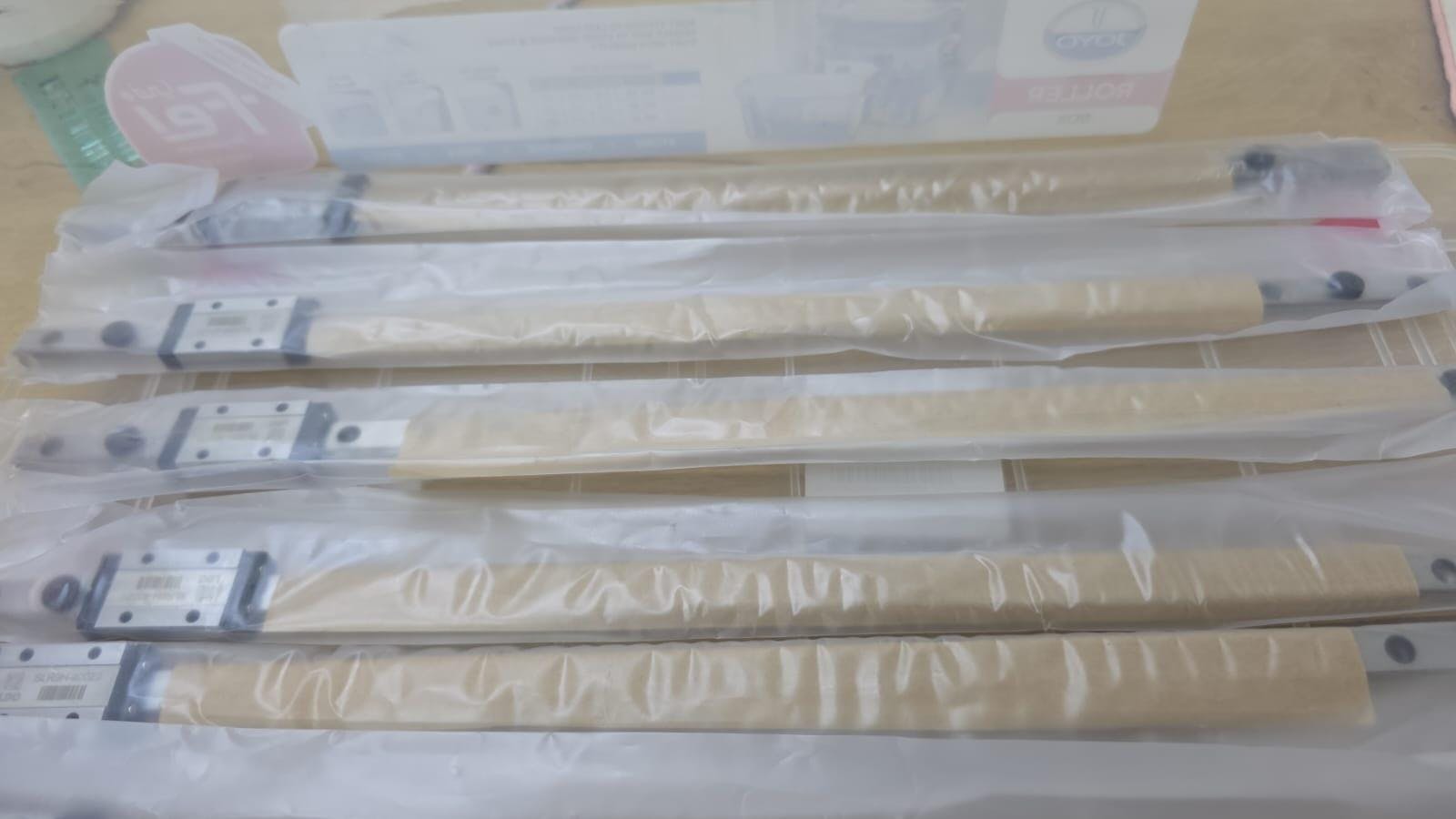

  • Stainless Steel Linear Rails- 12H size rails for X axis included. No more worrying about rusty rails. Remember toproperly lubricate your linear rails!
  • NiteHawk USB toolhead PCB - This toolhead board simplifies wiring by moving to 1 USB cable (included) from the toolhead to the MCU. it also adds many other upgrades like build-in accelerometer and multiple fan connections.
  • Brass Heatset Insert Tool We've included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check LDO's Heatset Insert Tool Guidefor more information.
  • Input Shaper Tool - We threw in a toolkit that includes all the necessary parts to help you perform input shaper calibration, hassle free.
  • Pre-cut & Pre-wired- Our kit includes all necessary wiring: cut to the right length and pre-crimped or soldered to their respective parts. See instructions in LDO's detailed wiring guide.
  • Raspberry PI 4B with included heatsink.
  • LED Lighting - Bring lighting to your Voron with included LED strips and all necessary wiring!
  • Nevermore Filter - We include parts for an optional internal circulation filter: theNevermore Micro V5 by 0ndsk4 (carbon pellets not included due to shipping restrictions).
  • Klicky Mod - Instead of the included Omron inductive probe, We also provide the parts to build your machine using the optionalKlicky modby jlas1.
  • Small Tools- We include a small set of hex wrenches for all the fasteners used in the build (Preparing your own set of good quality hex wrenches is still recommended). Also included is a small flat head screwdriver that is useful in a surprising number of situations.
  • 2mm Drill Bit- Metric drill bits may not be very common in some parts of the world, so we included one. Use it to ream the filament path in your printed extruder parts.

Guides

  • Printed Parts Guide- Are you planning on printing parts before the kit arrives? Check this guide to see which parts to print/replace/omit.
  • Wiring Guide- We created this supplementary guide to go along with the included cable kit. We recommend reading it ahead of time, as some cable routing is required while you assemble the mechanical components.
  • Tuning Guide- Wehighlyrecommend reading over this very detailed guideby Ellis to help print the best possible looking parts.

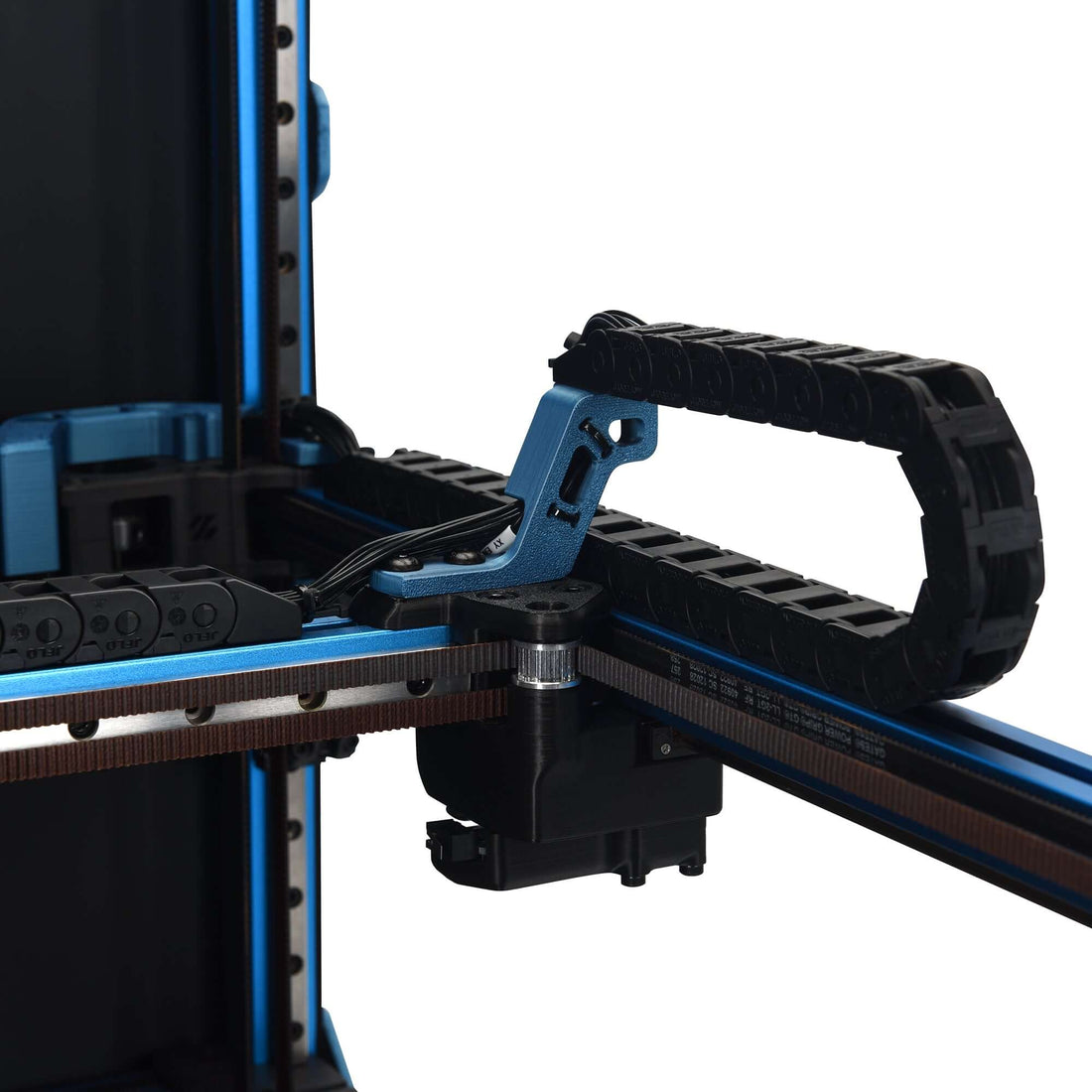

  • Cable Chain Guide- See this guide for tips on our included cable chains (also known as drag chains).
  • UK2.5 Terminal Guide- See this guide for tips on using the UK2.5 terminals included in our kits.

More information

  • Join Voron on Discord:https://discord.gg/voron. The community is very active and the users are very helpful on the#voron_2_questionschannel.
  • Since printed parts are NOT included with the kit, you can buy them separately with ourVoron Print It Forward programif you are unable to print them for yourself.  They will provide the essential parts for a very reasonable cost to get your printer working.
  • Download Fusion 360 and get a free license to view the3D model of the printer. The 3D model is a very useful reference when you encounter anything in the manual that is ambiguous or unclear.
  • Check outNero 3DandSteve Build's YouTube channels, both are part of the Voron team and have tons of useful videos for building Voron 3D printers.
  • Print aVoron Cube, then print aSteppy!
  • Get a serial numberonce you finish building your Voron.

Questions? Join our discord, where you can chat with other builders, ask questions and gather information to help you finish your kit faster.
