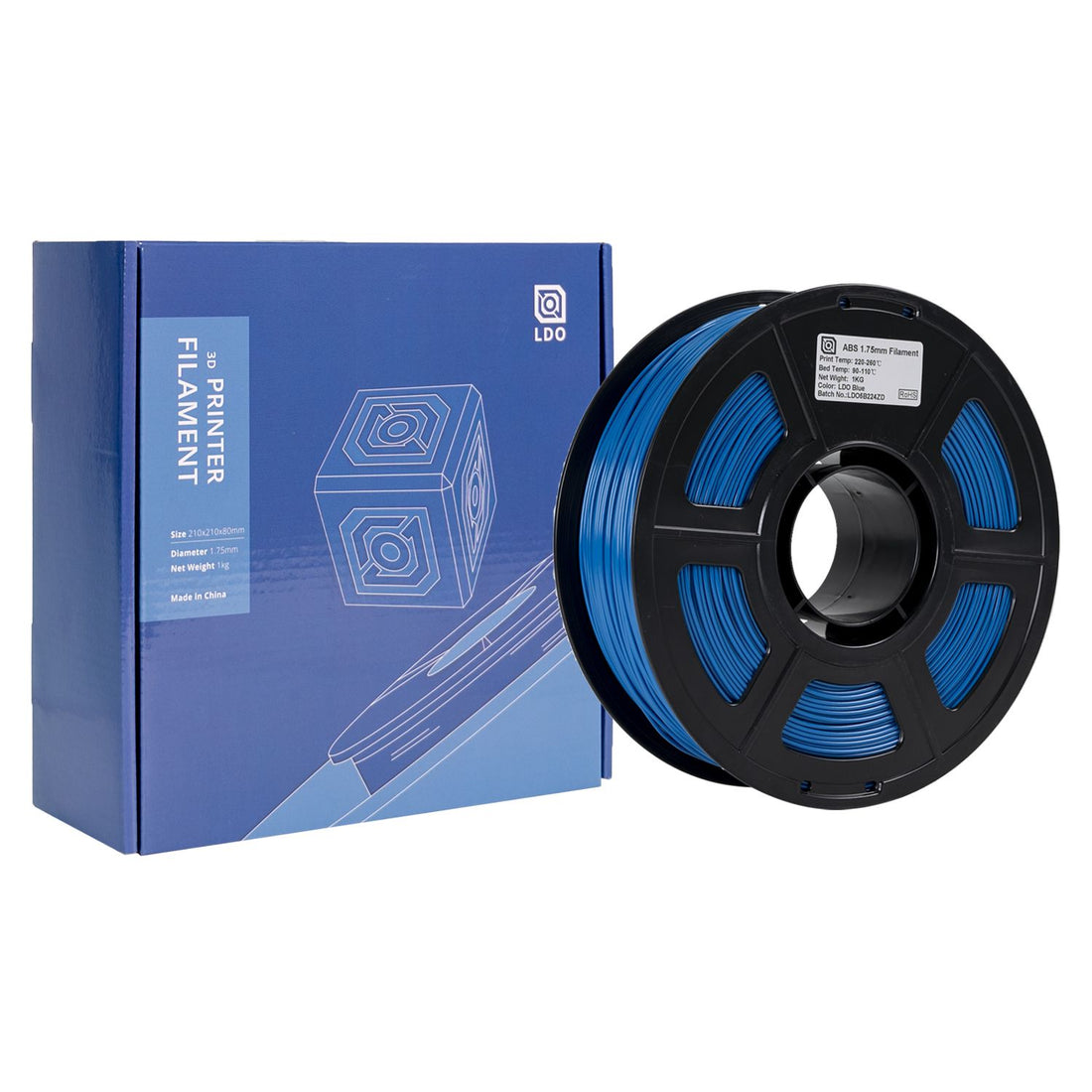

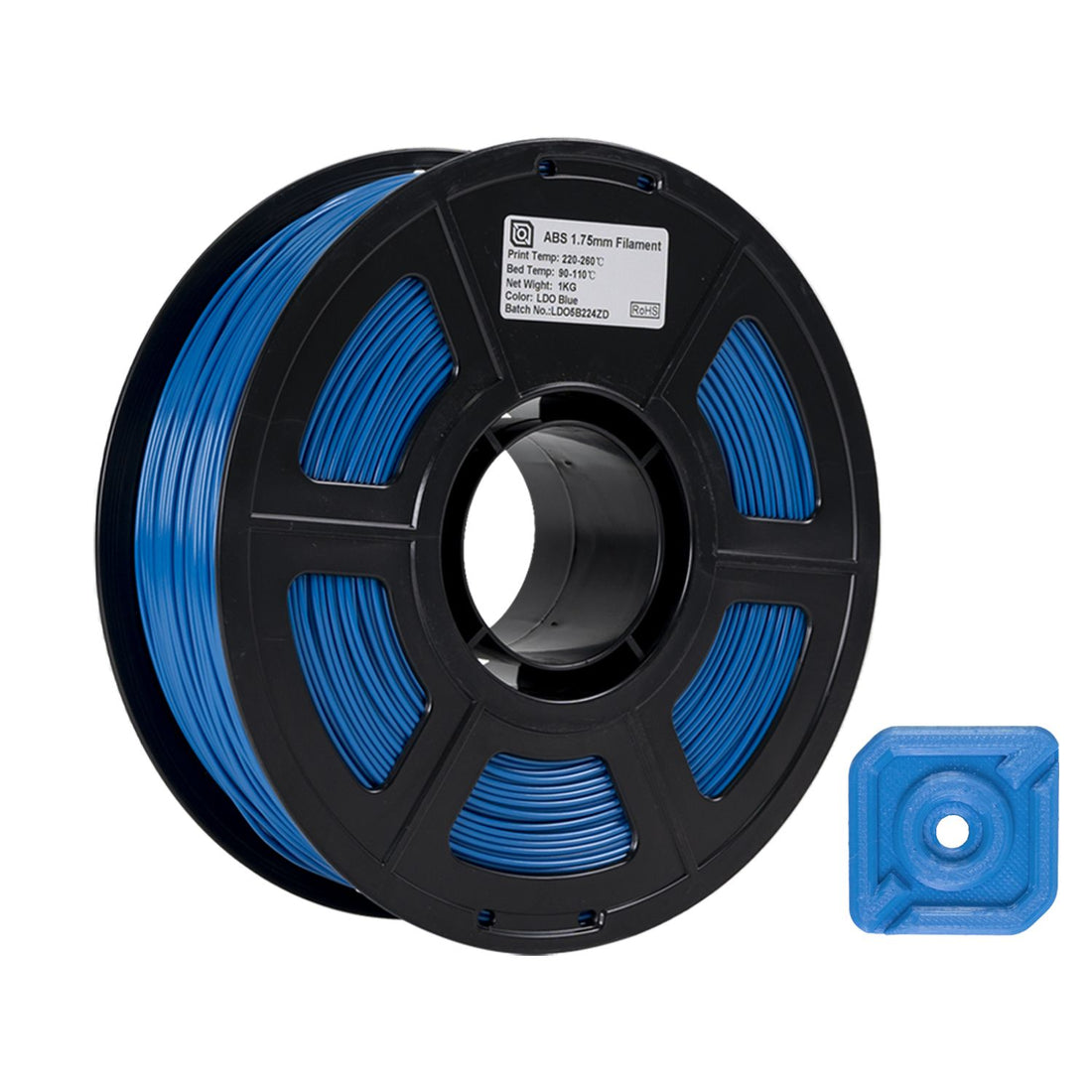

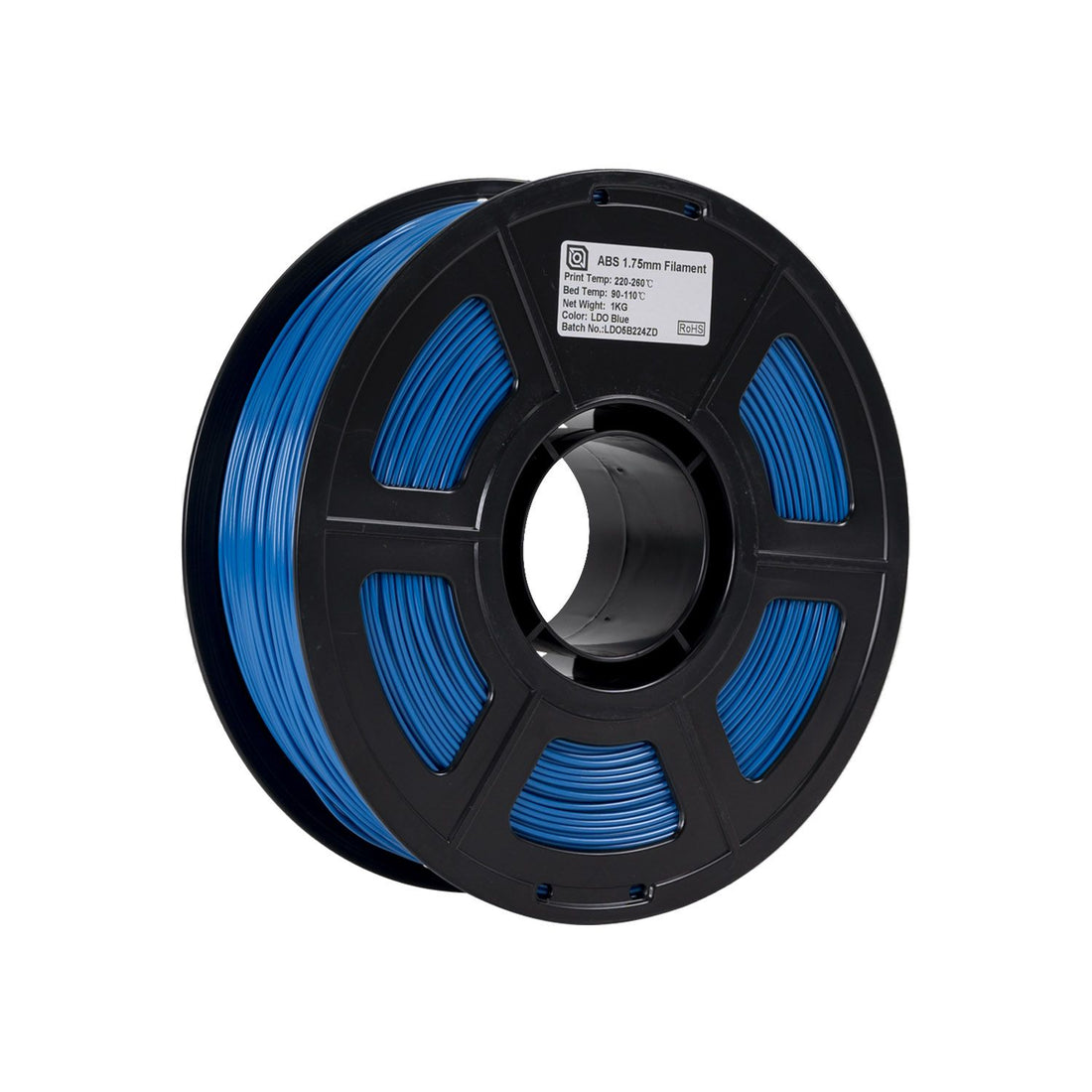

LDO ABS Filament (AMS friendly) - Blue
LDO ABS Filament (AMS friendly) - Blue
LDO ABS Filament - Blue
Precision & Durability for Demanding Applications
LDO's high-performance ABS 3D printer filament - designed for professionals who demand strong, durable, and reliable 3D printed parts. Spool is friendly with AMS and MMU systems, so your multi-material 3D prints come out perfect every time.
This filament has great layer adhesion, making prints strong and impact-resistant. This is ideal for functional prototypes or end-use parts.
The 1.75mm filament diameter is kept within a tight range of ±0.02mm. This ensures smooth and steady extrusion for perfect prints every time. Plus, with a heat deflection temperature of 97°C, your parts will keep their shape and work well in high-heat areas.
Features
- Excellent inter-layer adhesion Enhances the strength, durability, and shock resistance of printed parts.
- Industry-leading tolerances Precise 1.75mm ± 0.02mm diameter for consistent extrusion and high-quality prints.
- High heat resistance Heat deflection temperature of 97°C keeps 3D printed parts in their shape, even in high-heat areas.
Suggested Print Settings
We print this filament with the following general settings:
- Toolhead: 255C
- Bed: 100C
- Chamber Temp: 50-70C
- Fan Speed: 25% minimum (depending on the printer)
Print Profiles (coming soon)
- Bambu X1 & P1
- Voron V2.4 (clockwork 2 & Rapido)
- Voron V2.4 (Galileo 2 & Rapido)
- more to come
Note: these profiles will provide a good starting point. PA and flow tests are suggested if you want to really dial in your print quality.
Spec Sheet
Property |
Unit |
Test Standard |
Typical Value |
---|---|---|---|
Density |
g/m3 |
ISO 1183 |
1.06 |
Melt Flow Index (220°C,10Kg) |
g/10min |
ISO 1133 |
5 |
Melting Point |
°C |
DSC |
215 |
Tensile Strength at Yield |
MPa |
ISO527-2/50 |
46 |
Tensile Strain |
% |
ISO527-2/50 |
2.5% |
Bending Strength |
MPa |
ISO178 |
69 |
Flexural Modulus |
MPa |
IS0178 |
2350 |
Notched Izod Impact |
KJ/m? |
ISO180-A |
19 |
Shrinkage Rate |
% |
ISO294-4 |
0.4-0.7 |
Heating Deflection Temperature |
°C |
ISO 75-2/A |
97 |
Flammability |
/ |
UL-94 |
PASS |
Carbon Emission |
Ug/g |
VDA277 |
25.0 |
Filament Specs: |
|
||
Diameter |
1.75 +-0.02mm |
||
Suggested Printing Temperature |
|
260°C |
|
Suggested Heatbed Temperature |
90-110°C |
||
Suggested Printing Speed |
30-100mm/s |
||
Printing Condition |
Closed chamber is necessary. 50-70 °C is recommended. |
