4010 Axial fan by HoneyBadger

$9.99 Sale Save
4010 Axial fan by HoneyBadger

4010 Axial fan by HoneyBadger

$9.99 Sale Save
Sale Save

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

What is it:

After careful testing and multiple rounds of samples we are ready to release our HoneyBadger P-Series fans. These 4010 Axial fans have a durable fan motor and high static pressure which can take on any modern toolhead Type. This fan features a Rotor lock alarm via a 3rd wire (yellow) that will output a Vin (24v) signal when the fan stops spinning, this feature is still being integrated into Klipper to allow for an emergency stop in case of fan failure or print collision that stops the fan. More information on this will be release soon.

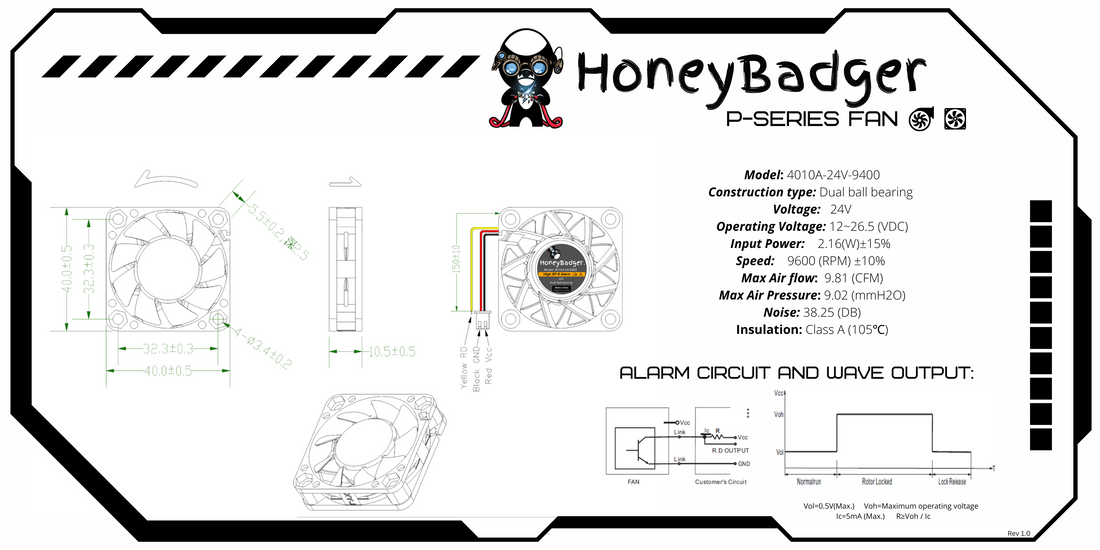

Specs:



  • Model: 4010A-24V-9400

  • Construction type: Dual ball bearing

  • Voltage: 24V

  • Operating Voltage: 12~26.5 (VDC)

  • Input Power: 2.16(W)±15%

  • Speed: 9600 (RPM) ±10%

  • Max Air flow: 9.81 (CFM)

  • Max Air Pressure: 9.02 (mmH2O)

  • Noise: 38.25 (DB)

  • Insulation: Class A (105℃)

Note:

Depending on the installation and component choices you might have to tweak your Fan_speed in order to avoid back flow
