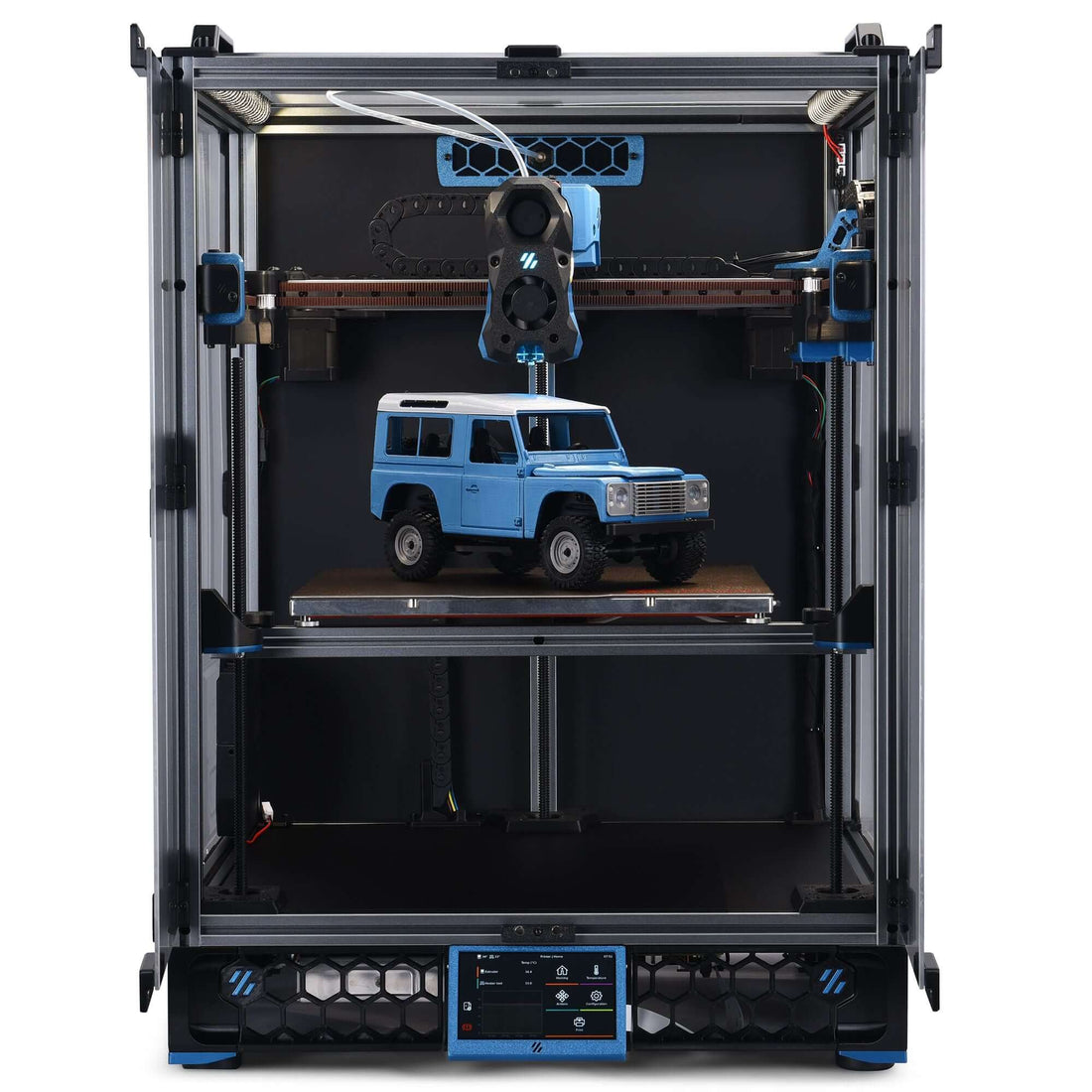

Voron Trident (Rev D) 3D Printer Kit by LDO
Voron Trident (Rev D) 3D Printer Kit by LDO
Voron Trident (Rev D) 3D Printer Kit by LDO

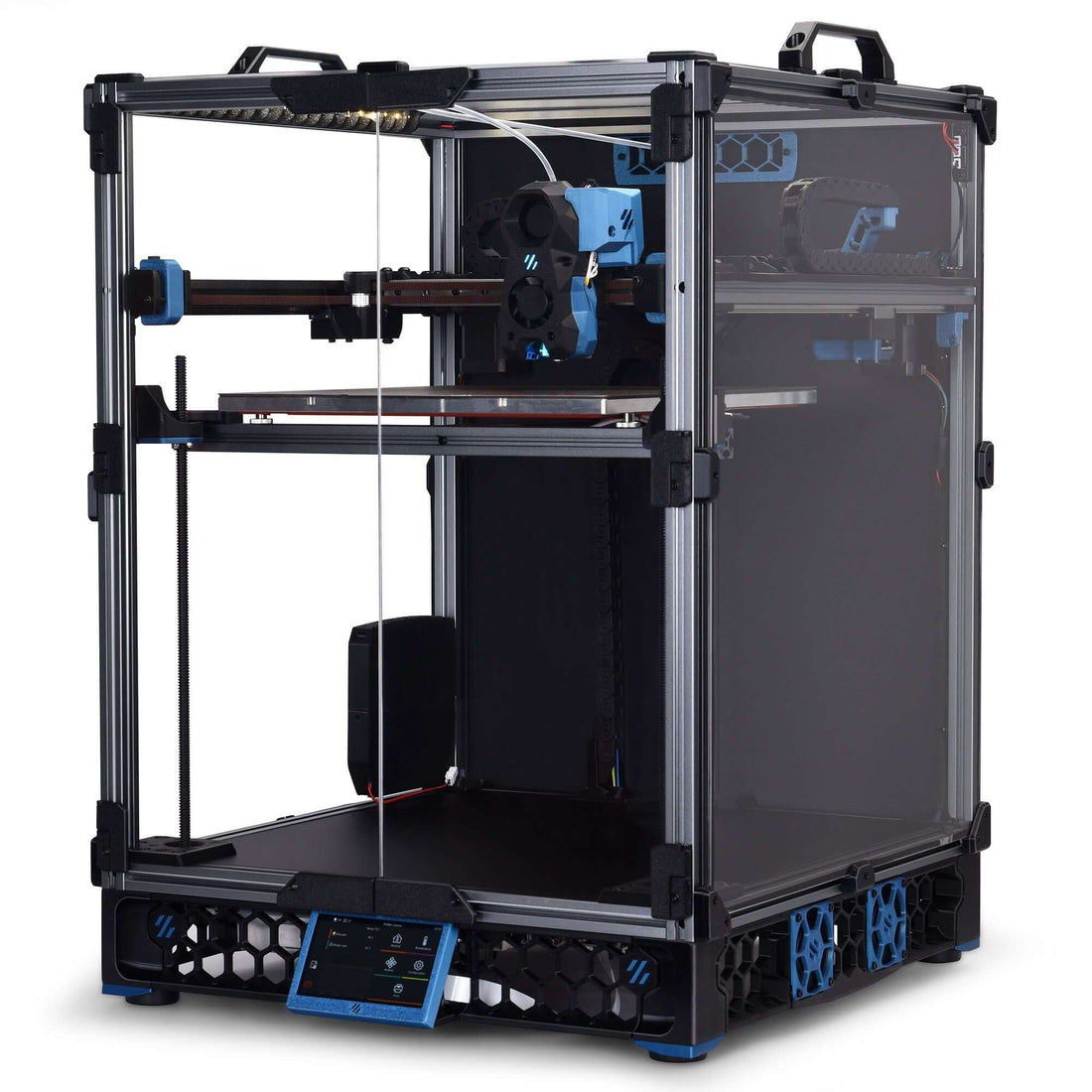

Voron Trident (Rev D) 3D Printer Kit side profile view

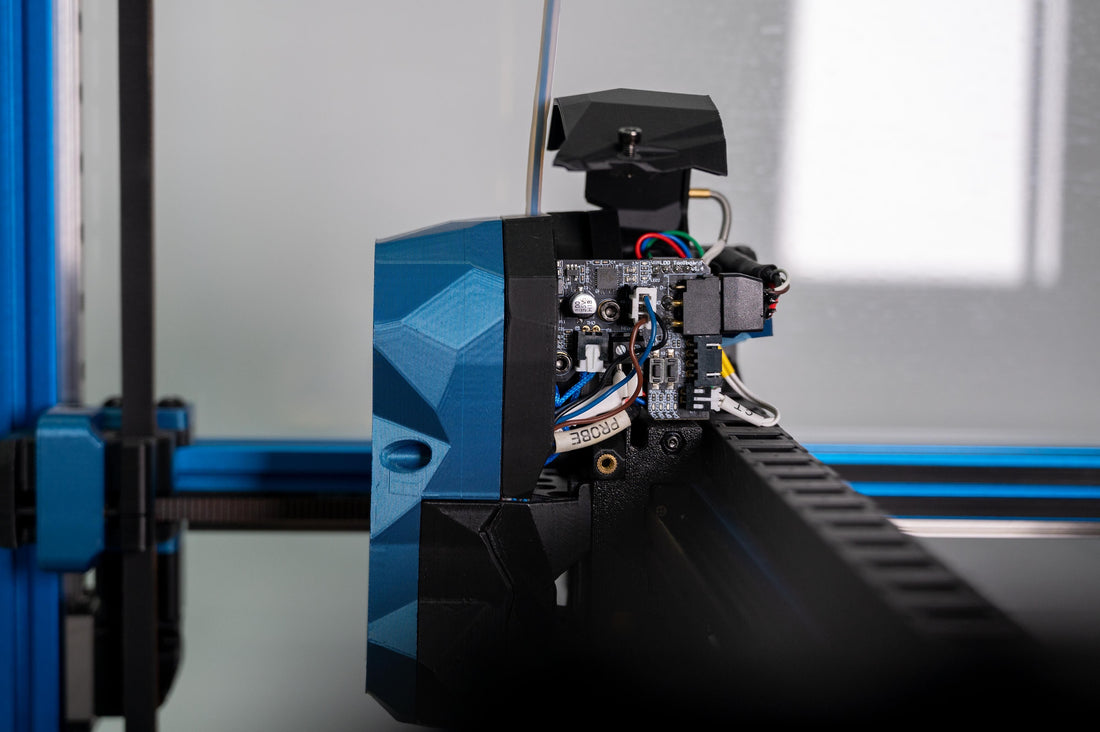

Voron Trident 3D with blue Stealthburner toolhead and integrated PCB

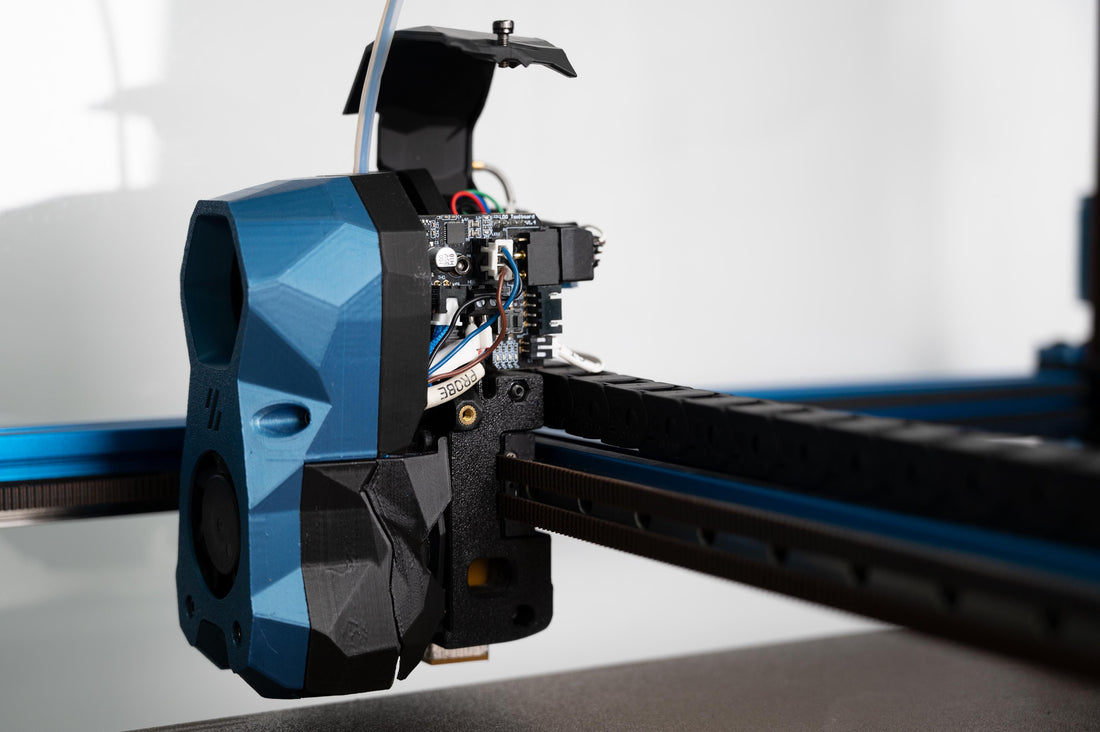

Side view of Voron Trident Stealthburner in blue with integrated toolhead PCB

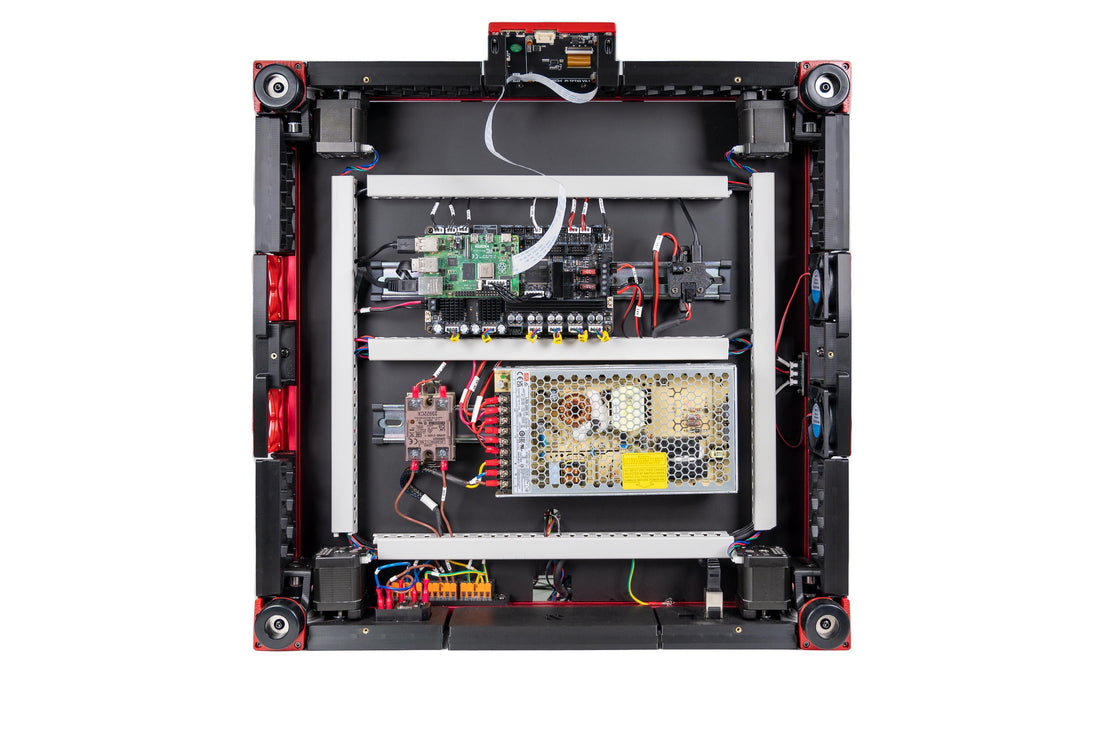

Electronics mounted beneath Voron Trident 3D printer

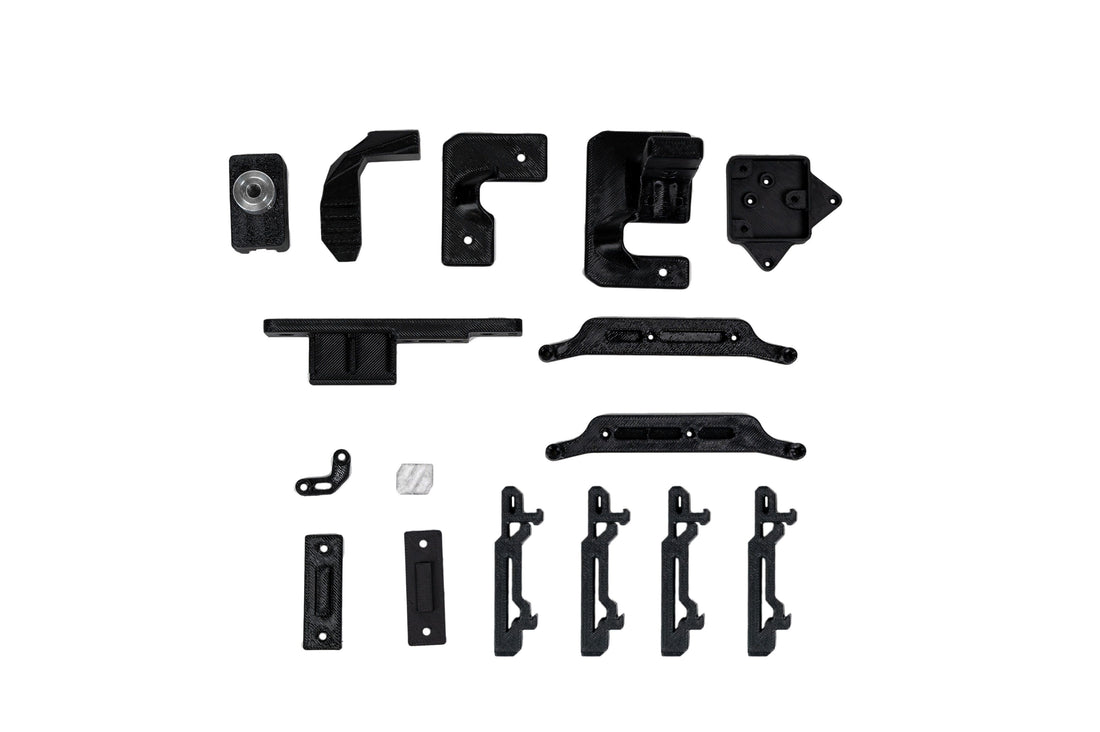

Assorted black plastic components included in the Voron Trident 3D Printer Kit - top view

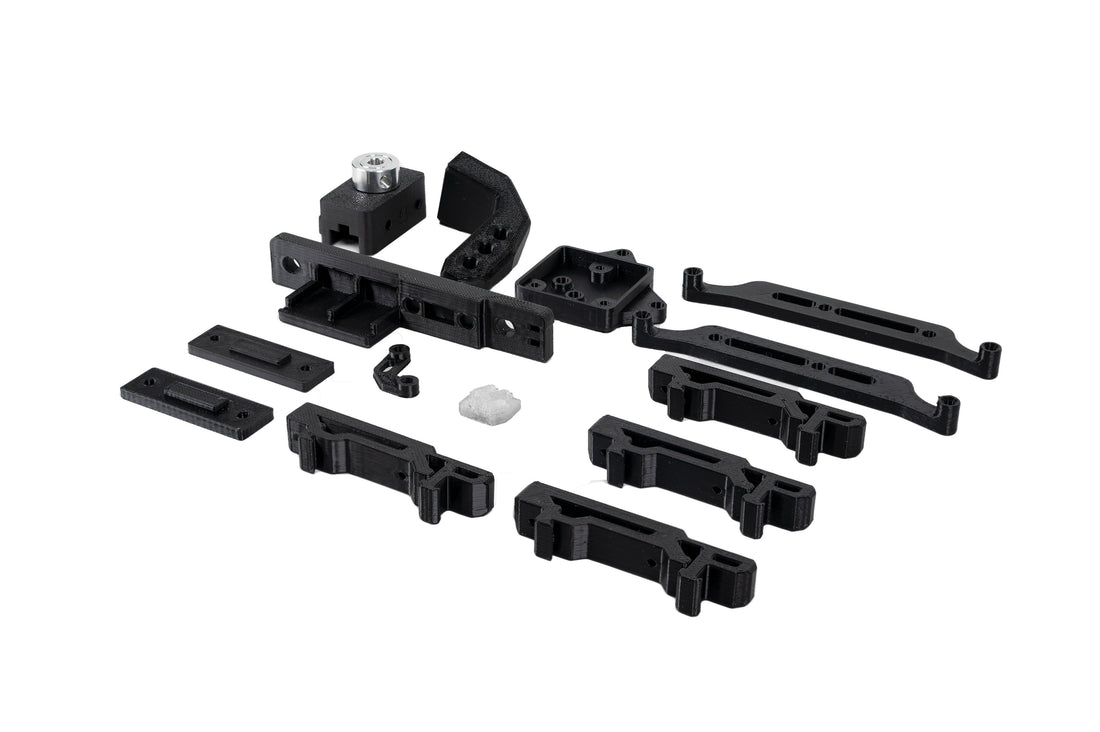

Assorted black plastic components included in the Voron Trident 3D Printer Kit - isometric view

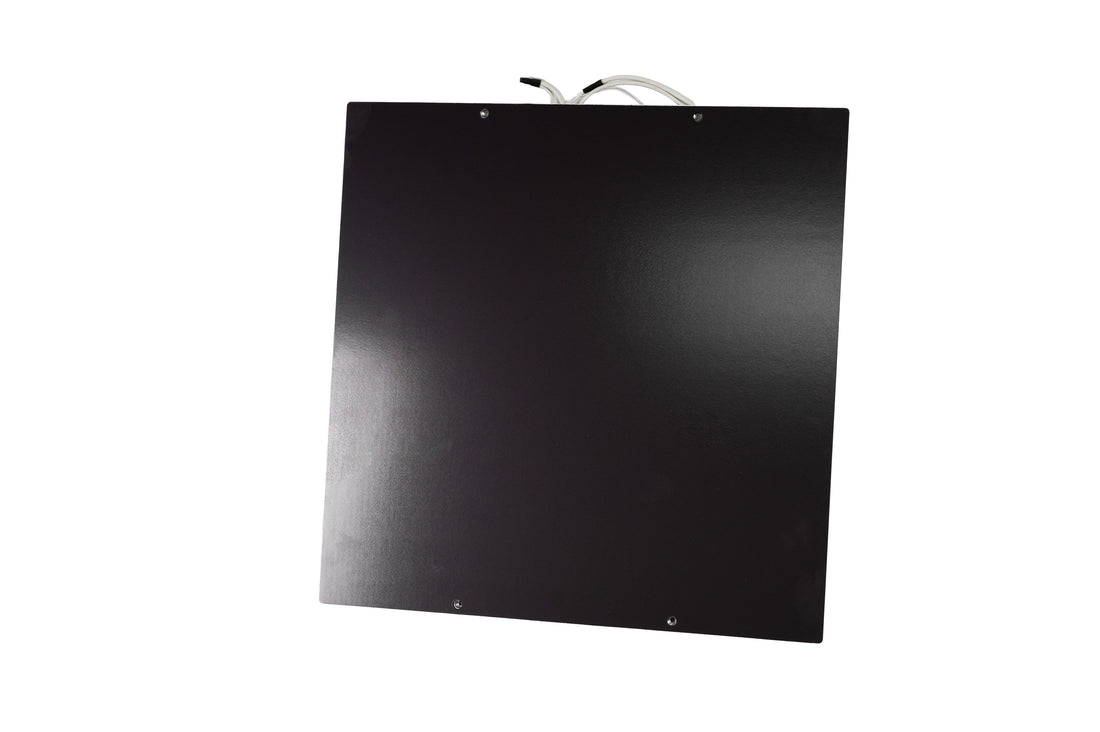

Metal build plate for Voron Trident 3D Printer with pre-attached magnet
Voron Trident (Rev D) 3D Printer Kit by LDO
Voron Trident (Rev D) 3D Printer Kit by LDO
Voron Trident (Rev D) 3D Printer Kit by LDO
Voron Trident (Rev D) 3D Printer Kit side profile view
Voron Trident 3D with blue Stealthburner toolhead and integrated PCB
Side view of Voron Trident Stealthburner in blue with integrated toolhead PCB
Electronics mounted beneath Voron Trident 3D printer
Assorted black plastic components included in the Voron Trident 3D Printer Kit - top view
Assorted black plastic components included in the Voron Trident 3D Printer Kit - isometric view
Metal build plate for Voron Trident 3D Printer with pre-attached magnet
LDO Voron Trident build video by Steve Builds.

Voron Trident (Rev D) 3D Printer Kit by LDO

$1,169.99 Sale Save
Size 250 mm
Frame Color Black

Item is in stock Only 2 left in stock Item is out of stock Item is unavailable

Voron Trident (Rev D) 3D Printer Kit by LDO

LDO's latest Voron Trident kit (Rev D) adds new features and upgrades. Available in black, blue or gray.



NEW! Rev D Changes for 2024

  1. Octopus board replaced for LDO Leviathan board - 5x TMC2209 drivers and 2x TMC5160 HV-compatible drivers for your A & B motors and is ready for 48V upgrades.

  2. Nitehawk SB Toolhead - No more wire chains, LDO is moving their kits to USB toolhead boards for a cleaner and faster setup.

  3. Bondtech Integrated Drive Gear Assembly (IGDA) - one of the best extruder gears available on the market.

  4. LED Lighting - Upgraded to COB LED strip

  5. Quality of life upgrades - Pre-installed magnet sheet on the metal bed, printed parts (for LDO mods), and pre terminated wiring all around.



🔥Special Deals🔥

Bundle the following items with your kit for a special discount. Just add them to your cart and the discount will be automatically applied.

  • 25% off Extrusion Backers:  Titanium
  • Upgrade the E3D Revo HF hotend to a Phaetus rapido HF for just $9.99. Just add it to cart!

LDO Voron Trident Features

  • New for June 2024: (Rev D) now includes Raspberry Pi 4B, LDO Leviathan Board, LDO Nitehawk toolhead board, Bondtech IGDA, pre-installed bed magnet and included printed parts for LDO-specific mods (z endstop & other misc. parts).
  • E3D Revo High-Flow Extruder with 60W heater.
  • Raspberry PI 4B with included heatsink.
  • Clockwork 2 motor included.
  • LDO bed heater- Edge-to-edge heating pre-installed and wired ready to go!
  • Stainless Steel Linear Rails - No more worrying about rusty rails. Remember to properly lubricate your linear rails!
  • NiteHawk USB toolhead PCB- this toolhead simplifies wiring by moving to 1 usb cable (included) from the toolhead to the MCU. it also adds many other upgrades like build int accelerometer and multiple fan connections.
  • Brass Heatset Insert Tool - We've included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease!
  • Input Shaper Tool- We threw in a toolkit that includes all the necessary parts to help you perform input shaper calibration, hassle free.
  • Pre-cut & Pre-wired - Our kit includes all necessary wiring: cut to the right length and pre-crimped or soldered to their respective parts. See instructions in LDO's detailed wiring guide.
  • Touch Screen Display - We've replaced the standard 12864 LCD with an IPS Capacitive Touch Display to use with KlipperScreen.
  • LED Lighting - Bring lighting to your Voron with included LED strips and all necessary wiring!
  • Nevermore Filter - We include parts for an optional internal circulation filter: the Nevermore Micro V5 by 0ndsk4 (carbon pellets not included due to shipping restrictions).
  • Klicky Mod - Instead of the included Omron inductive probe, We also provide the parts to build your machine using the optional Klicky mod by jlas1.
  • Small Tools - We include a small set of hex wrenches for all the fasteners used in the build (Preparing your own set of good quality hex wrenches is still recommended). Also included is a small flat head screwdriver that is useful in a surprising number of situations.
  • 2mm Drill Bit - Metric drill bits may not be very common in some parts of the world, so we included one. Use it to ream the filament path in your printed extruder parts.

What you need to source

Guides

  • HoneyBadger bed heater install guide - Step by step guide for a perfect edge to edge heater install
  • Printed Parts Guide (LDO supplement) - Are you planning on printing parts before the kit arrives? Read our supplementary print guide to see which parts to print/replace/omit.
  • Wiring Guide - We created this supplementary wiring guide to go along with the included cable kit. We recommend reading the guide ahead of time: Some cable routing is required while you assemble the mechanical components.
  • Tuning Guide - We highly recommend reading over this very detailed guide by Ellis to help print the best possible looking parts.
  • Cable Chain Guide - See this guide for tips on our included cable chains (also known as drag chains).
  • UK2.5 Terminal Guide - See this guide for tips on using the UK2.5 terminals included in our kits.

More info

  • Join Voron on Discord: https://discord.gg/voron. The community is very active on Discord and the users are very helpful on the #voron_1_trident_questions channel.
  • Since printed parts are NOT included with the kit, it is recommended get them from through the Voron Print It Forward program if you are unable to print them for yourself.  They will provide the essential parts for a very reasonable cost to get your printer working.
  • Download Fusion 360 and get a free license to view the 3D model of the printer. The 3D model is a very useful reference when you encounter anything in the manual that is ambiguous or unclear.
  • Check out Nero 3D and Steve Build's Youtube channels, both are part of the Voron team and have tons of useful videos for building Vorons.
  • Print a Voron Cube, then print a Steppy!
  • Get a serial number once you finish building your Voron.

Questions? Join our discord, where you can chat with other builders, ask questions and gather information to help you finish your kit faster.

Backed by our 45-day no questions asked return policy.
