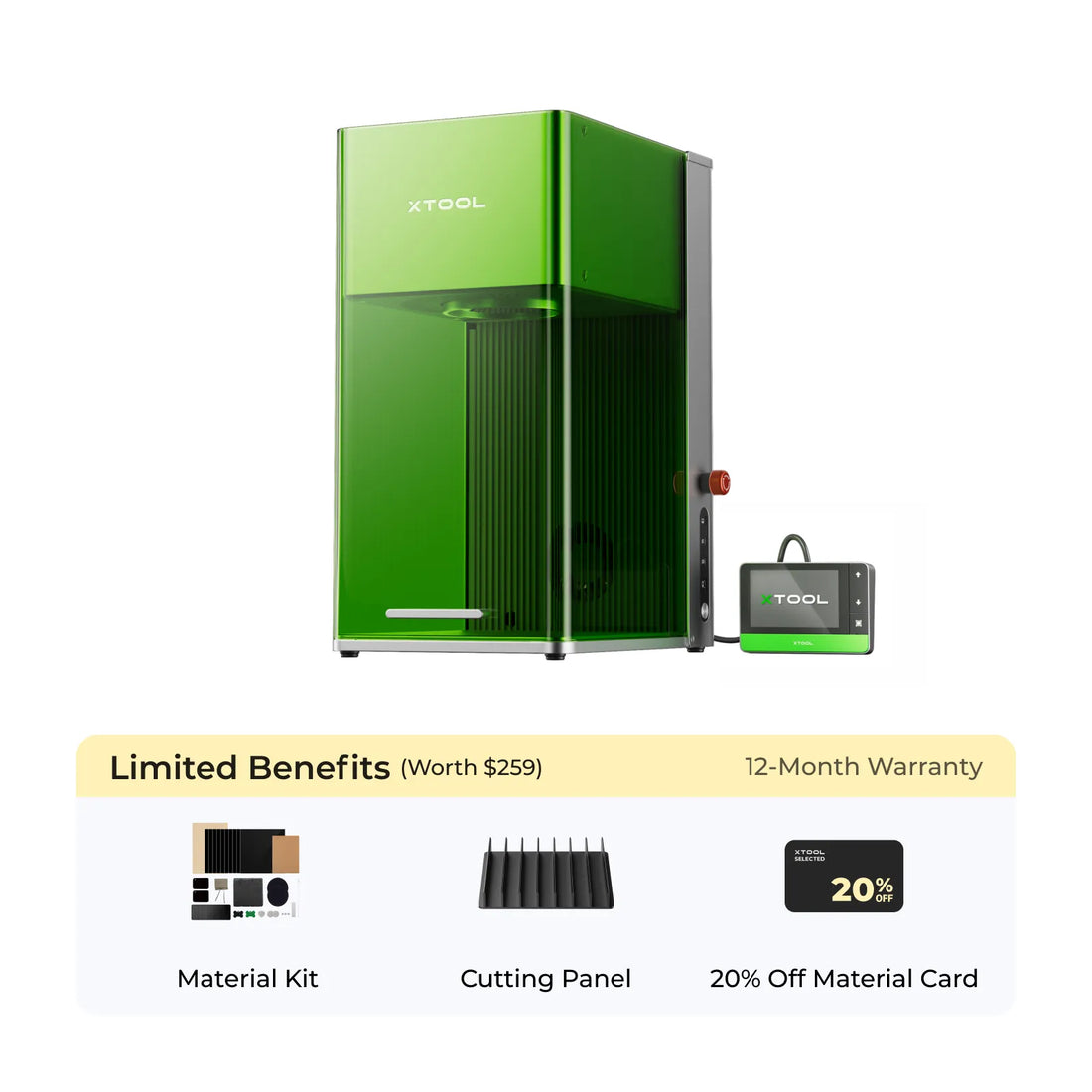

xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver

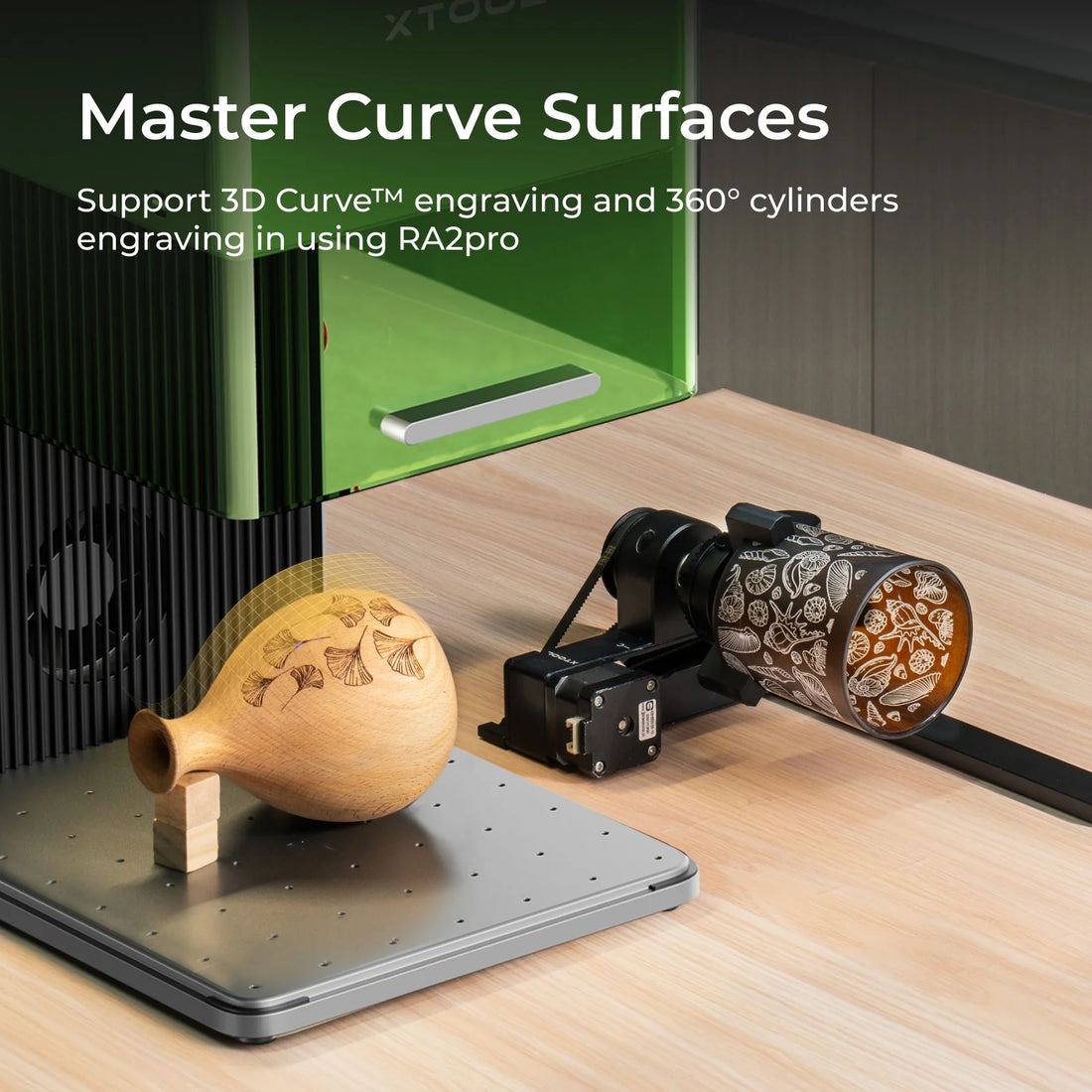

The xTool F1 Ultra 20W Fiber & Diode Dual Engraver is a premium desktop laser engraver/cutter that fuses a 20W diode laser with a 20W fiber laser, all in one unit. This true dual-laser system greatly expands material capabilities – the 455nm diode handles wood, acrylic, leather, etc., while the fiber laser can directly engrave metals (steel, aluminum, gold, etc.) with high clarity. The F1 Ultra is built for speed and detail: it can galvo-engrave at up to 10,000 mm/s, enabling rapid production or intricate detailing on large batches . It also introduces advanced features like 3D curved surface engraving (maintaining focus across uneven surfaces) and even color engraving on stainless steel via fiber laser oxidation . Despite industrial-level power, the F1 Ultra remains a desktop unit (about 10.75″ × 14.69″ × 19.37″ in size) with a fully enclosed protective lid for safe operation in home or workshop settings . A built-in high-resolution camera system provides live previews for precise alignment, and autofocus ensures optimal laser focus on every job . In short, the F1 Ultra is a versatile, professional-grade laser engraver for makers who need to work with both organics and metals at high speed.

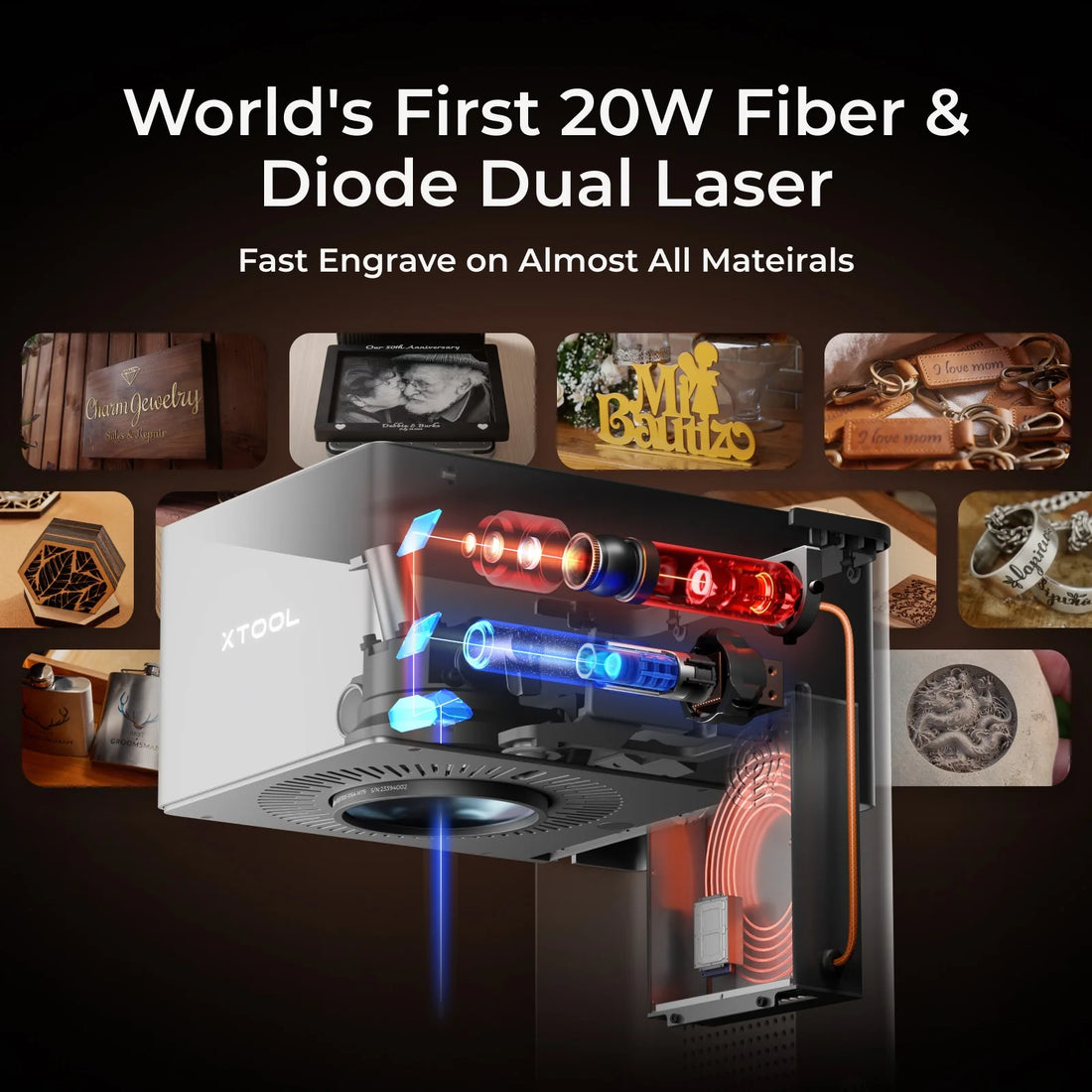

• Dual 20W Lasers (Diode + Fiber): Equipped with a 20W 455 nm diode laser and a 20W infrared fiber laser, the F1 Ultra automatically switches between them to accommodate different materials . For example, you can cut wood or acrylic with the diode laser, then immediately engrave bare metal parts with the fiber laser – all in one job. This “two-in-one” laser design makes the F1 Ultra extremely flexible for makers and businesses that work with diverse materials.

• Lightning-Fast Galvo Engraving: Using galvo mirror scanning, the F1 Ultra achieves scanning speeds up to 10,000 mm/s (2.5× faster than the smaller F1). This means you can engrave designs in seconds – a leather patch in ~6 s, a metal business card in ~5 s, or a paper card in 1 s, as xTool notes . The motion system’s precision is exceptional, yielding crisp, high-resolution details (diode spot ~0.08×0.1 mm, fiber spot ~0.03×0.03 mm) . The F1 Ultra also features high-speed preview modes (24,000 mm/s outline projection) to quickly frame your design on the material .

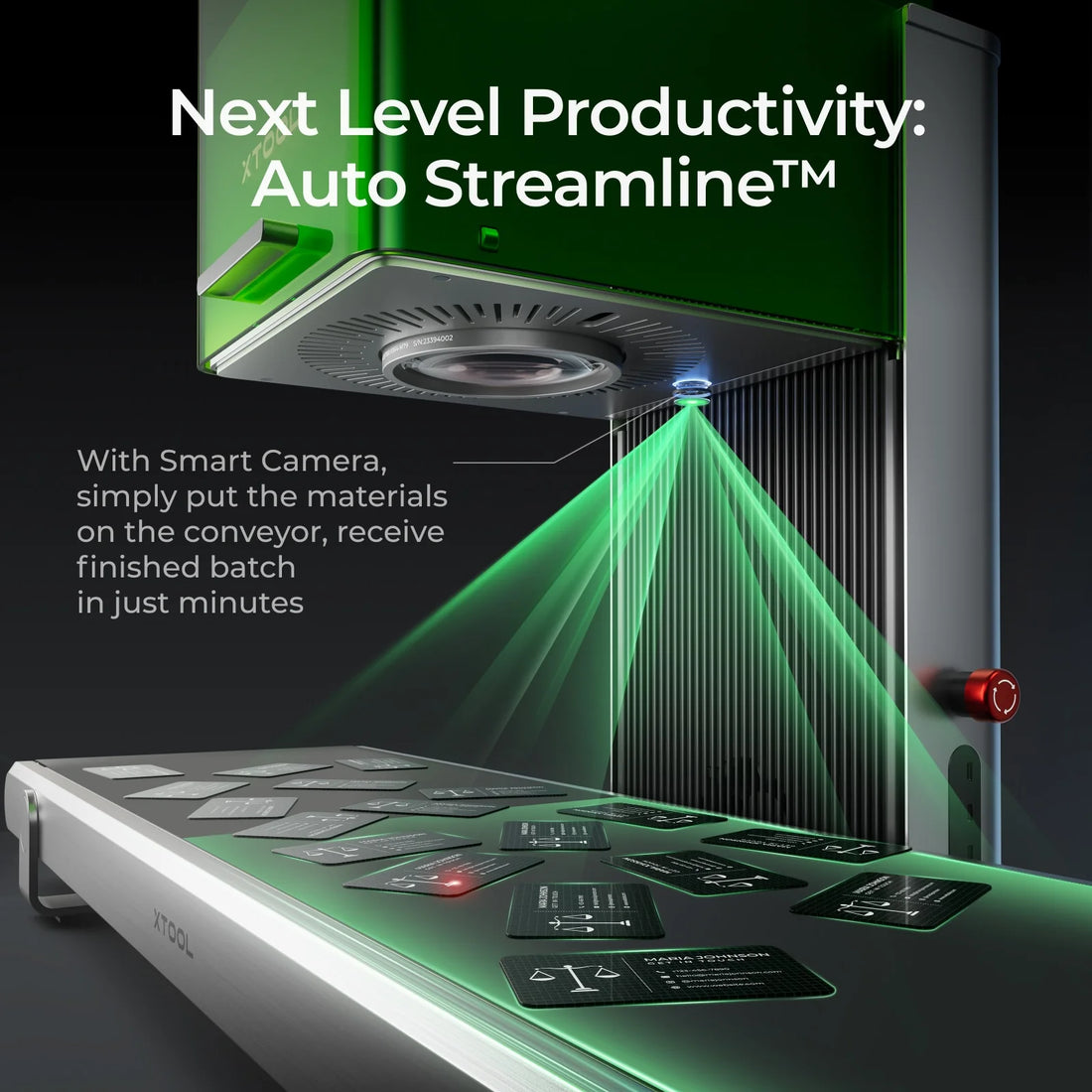

• Large Work Area & Expandability: The standard galvo engraving area is 8.66″ × 8.66″ (220 × 220 mm) , suitable for most plaques, signs, or batches of small items. For larger pieces, an optional conveyor belt extension can expand the working length to 19.68″ (500 mm) , enabling continuous engraving across long objects or boards. The machine’s internal z-axis can accommodate objects up to ~2″ tall by default, and with the lid open it can mark taller objects (or use rotary) using an optional riser stand.

• Safe, User-Friendly Design: The F1 Ultra is fully enclosed in a protective metal case with a tinted laser shield window, keeping laser radiation contained (Class I safety) and fumes minimized. It includes safety interlocks, emergency stop, and monitoring to prevent misuse. An internal exhaust fan is built in, and xTool offers external filtration units (e.g. Smoke Purifier or SafetyPro) for added safety . Operation is made easy via a top control panel and software connectivity – you can control it from a PC or even use the touchscreen panel for basic tasks. Wi-Fi and USB connectivity are supported for sending jobs , and the machine works with xTool Creative Space or LightBurn for powerful design and control options . Autofocus capability further simplifies use: the F1 Ultra automatically adjusts focus for perfect engraving, even on curved surfaces .

Technical Specifications: Laser Types: 455 nm Diode Laser (20 W) + 1064 nm Fiber Laser (20 W) . Work Area: 8.66″ × 8.66″ (220 × 220 mm); optionally ~19.7″ × 8.66″ with conveyor extension . Max Cutting Thickness: ~15 mm basswood, ~12 mm acrylic (with 20W diode laser) . Engraving Speed: up to 10,000 mm/s (galvo scanning) .

Machine Dimensions: ~10.75″ W × 14.7″ D × 19.4″ H (273 × 373 × 492 mm) . Machine Weight: ~14.7 kg (32.4 lbs) . Positioning/Accuracy: Galvanometer-based scanning (extremely high repeatability ~0.00025 mm) . Built-in Camera: Yes – dual 16 MP cameras (panoramic + close-up) for live preview and smart positioning .

Focus Control: Motorized Autofocus (software-controlled) . Safety Features: Fully enclosed design with safety lid (interlocked), class I operation when closed; emergency stop button; laser safety goggles provided for fiber laser use if working with lid open (class 4 when open). Optional fire safety alarm system available. Cooling: Internal cooling for diode and fiber modules (fiber laser source is fiber-coupled IR).

Supported Materials:

Engrave: Diode – wood, bamboo, leather, plastics, acrylic (opaque), coated metals, glass, stone, ceramic, etc. ; Fiber – all common metals (stainless steel, aluminum, brass, gold, silver, titanium, etc.) and many plastics .

Cut: Diode – wood, plywood/MDF, paper, fabric, leather, acrylic (up to a few mm) ; Fiber – thin metals like brass or aluminum sheets (less than 1 mm) .

Software: xTool Creative Space (proprietary, includes material library and image extraction features) or LightBurn (popular third-party laser software) . File Formats: SVG, DXF, JPG, PNG, BMP, etc. .

Connectivity: Wi-Fi, USB, (Ethernet via adapter) . Power: 24 V 11 A DC input (external power brick) . Warranty: 1 year limited warranty on the machine and laser modules.

Included Accessories: The standard xTool F1 Ultra package comes fully assembled with the dual lasers installed. In the box you’ll find the F1 Ultra machine, power supply, USB cable, and a tool kit. The machine includes an integrated overhead camera system and a built-in LED guidance pointer. Two sets of laser safety goggles are typically provided (especially for fiber laser use). A basic honeycomb or metal engraving plate may be included for supporting workpieces. Note: Due to the F1 Ultra’s specialized nature, it often ships with required components pre-installed (e.g. galvo head, lens) and ready to run after software setup.

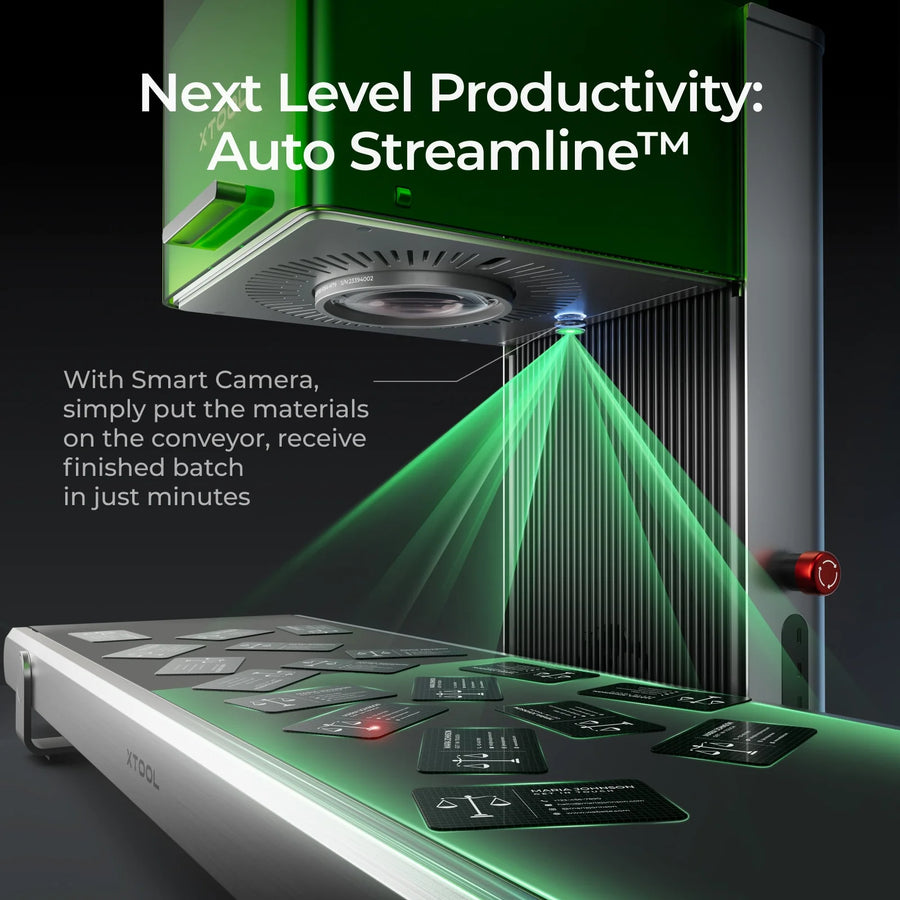

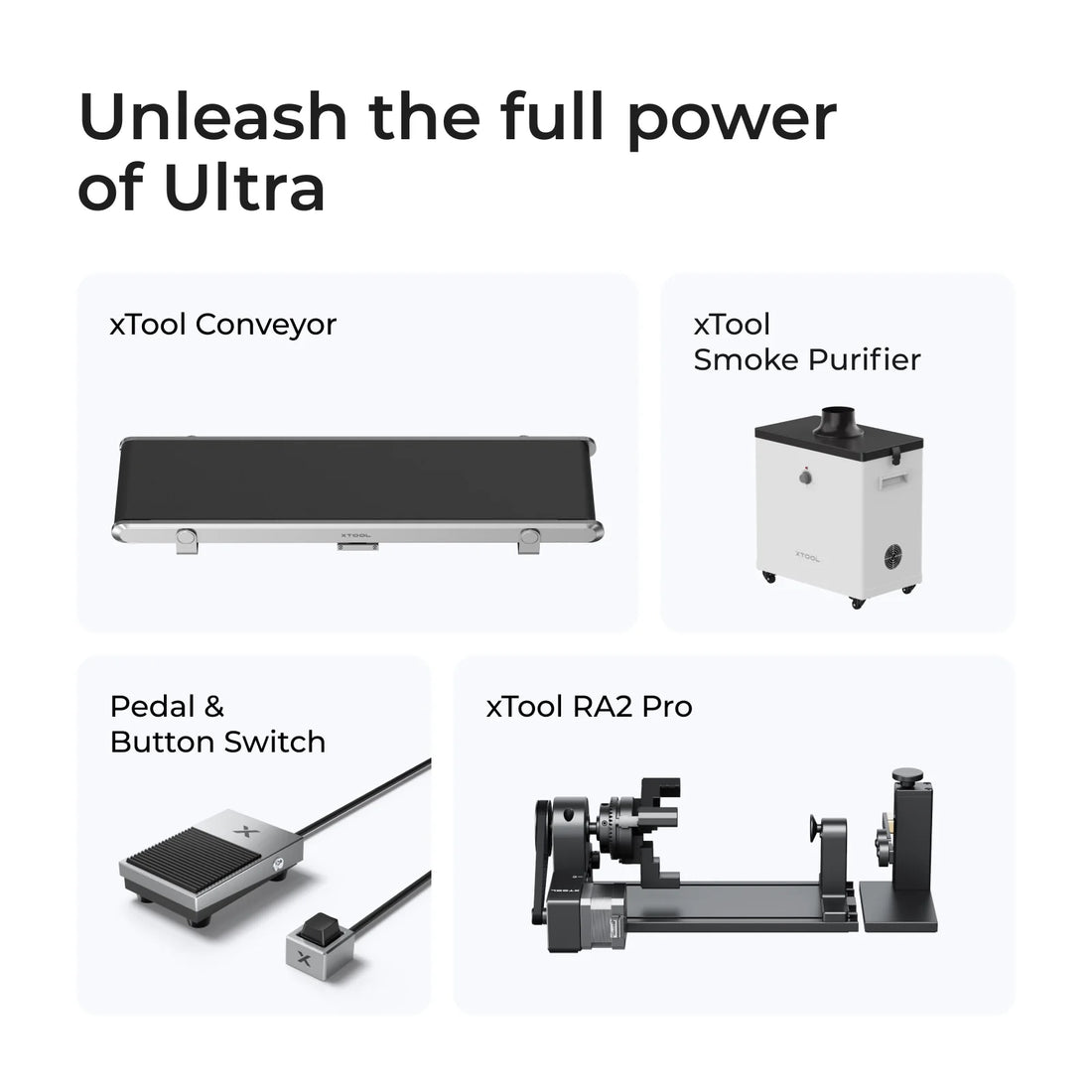

Optional Accessories: xTool offers several accessories to extend the F1 Ultra’s capabilities. A notable add-on is the F1 Ultra Conveyor belt extension, which attaches to the front opening and allows feeding long materials up to 500 mm (19.7″) through the engraver for passthrough engraving . For cylindrical objects, the RA2 Pro Rotary (with appropriate mount/riser) lets you engrave tumblers, rings, and other 360° objects – the F1 Ultra supports rotary engraving via this accessory . To handle fumes and particles, you can connect the xTool Smoke Purifier or the more advanced SafetyPro AP2 Air Purifier, which are external filtration systems designed for xTool lasers . Additionally, a Fire Safety Set (automatic fire alarm and cutoff) can be integrated for enhanced safety. These optional accessories ensure you can customize the F1 Ultra for automated workflows and safer operation in different environments.
