XTool F1 Portable Dual Laser Engraver

The xTool F1 Portable is a high-speed, compact laser engraver/cutter designed for mobility without sacrificing power. It combines a 10W 455nm diode laser with a 2W 1064nm infrared laser, allowing it to engrave and cut a wide range of materials with ultra-fine detail . Despite its small size (about 7.05″ × 9.25″ × 13.15″), it achieves blazing engraving speeds up to 4,000 mm/s thanks to an industrial-grade galvo system . The F1 Portable features a fully enclosed protective housing with a tinted safety shield and a convenient carry handle for easy transport . It offers flexible control via mobile app or computer, and includes a built-in exhaust fan for smoke . An optional slide-extension accessory can expand the engraving area for larger projects.

Key highlights include:

• Dual-Laser Technology: 10W blue diode + 2W IR laser in one machine – automatically switchable to tackle metals, plastics, wood, acrylic, etc. . For example, the diode laser can engrave wood, leather, coated metals, even stone or glass, while the IR laser marks metals and certain plastics .

• Ultra-Fast, High Precision: Galvo scanning delivers engraving speeds up to 4,000 mm/s, with motion precision of 0.00199 mm and repeatability of 0.000248 mm . This means you can etch ultra-fine details (e.g. 0.08×0.06 mm diode spot) quickly and accurately . Cutting performance is also robust – up to 8 mm basswood or 6 mm black acrylic in one pass .

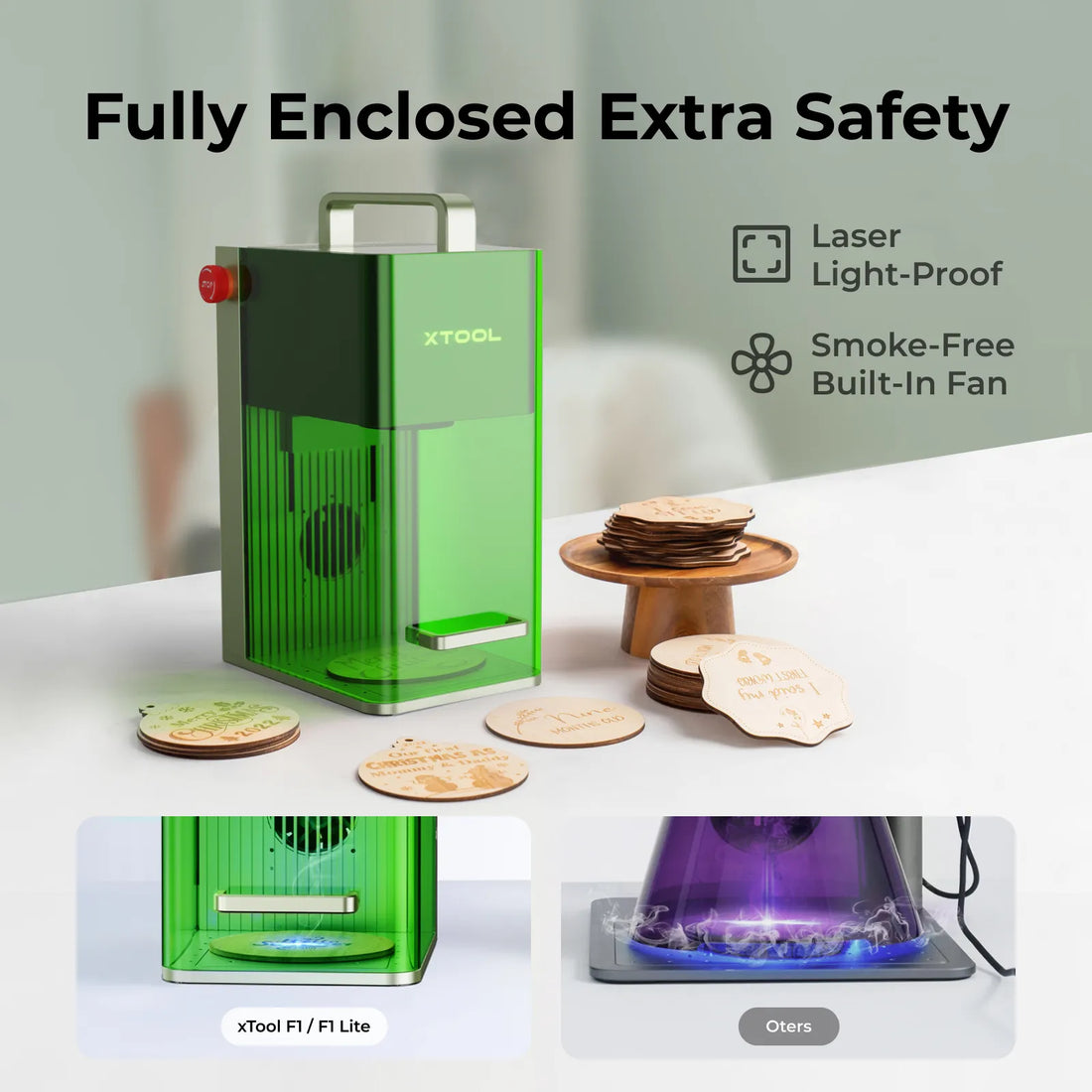

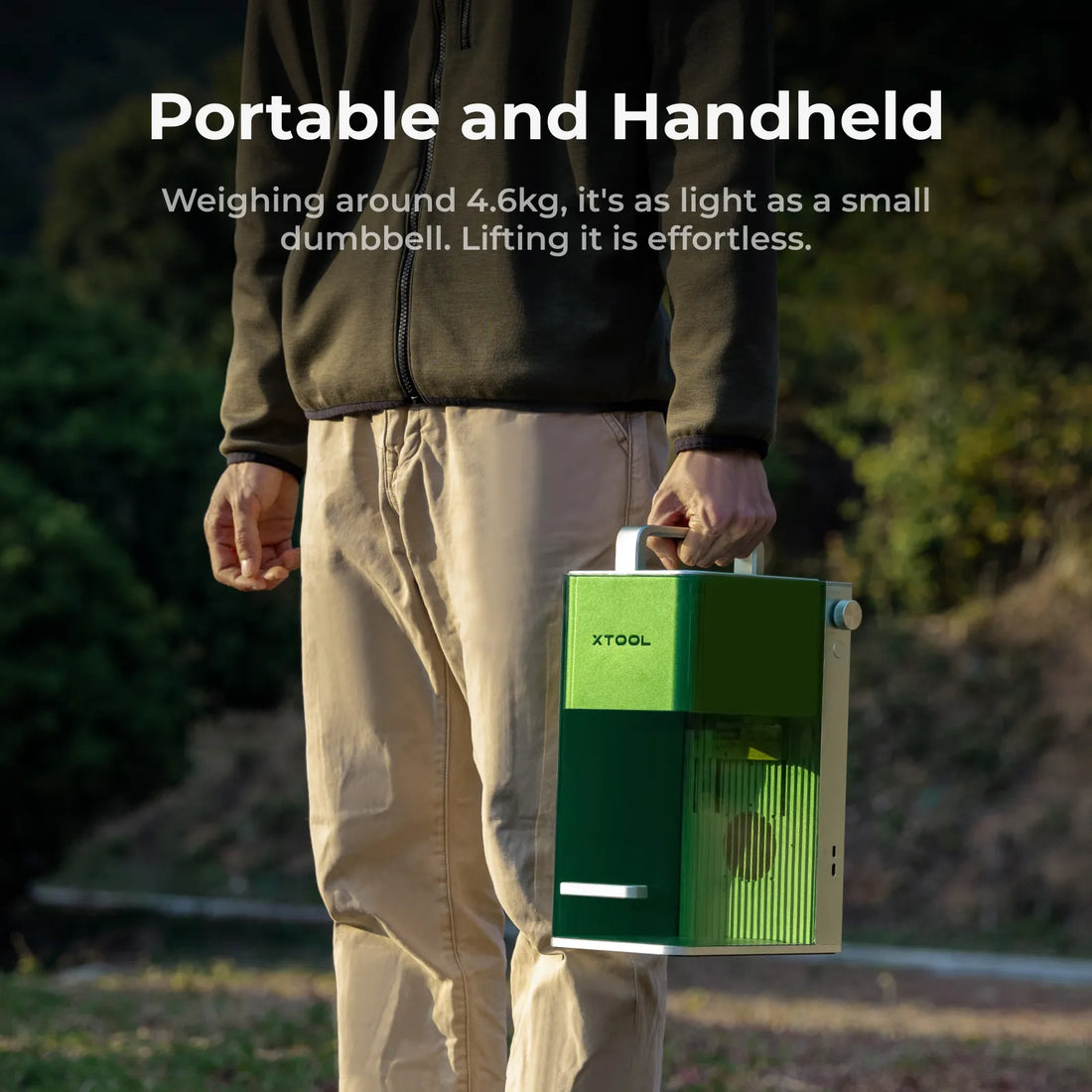

• Portable & Enclosed Safety Design: Weighing just 4.6 kg, the F1 Portable is easy to carry and set up . The integrated safety cover blocks laser light and contains fumes, making it a Class 1 safe system for use in various environments. It also has protective sensors for safe operation (the cover can automatically shut off the laser when opened) and an optional external air purifier for extra fume filtration .

• Flexible Controls & Software: Connect via Wi-Fi or USB and operate the F1 using the xTool Creative Space software (compatible with Windows, macOS, iOS/Android) or third-party programs like LightBurn . You can even control it from a phone or tablet, and the machine supports outline and rectangle preview modes at high speed for accurate job framing .

Technical Specifications: Laser Type: 455 nm diode (10 W) + 1064 nm IR (2 W) . Work Area: 4.53″ × 4.53″ (115 × 115 mm); expandable to 15.74″ × 4.53″ (400 × 115 mm) with optional slide extension . Machine Dimensions: ~7.05″ (W) × 9.25″ (D) × 13.15″ (H) . Machine Weight: ~4.6 kg . Max Engraving Speed: 4,000 mm/s . Max Cutting Depth: ~8 mm (basswood), 6 mm (acrylic) per pass . Accuracy: 0.002 mm positioning, 0.00025 mm repeatability .

Safety: Fully enclosed class I design (integrated shield), safety interlock, built-in exhaust fan.

Supported Materials:

Engraving: diode laser – wood, leather, paper, fabric, bamboo, painted/coated metals, ceramics, glass, stone, etc.; IR laser – bare metals (steel, aluminum, etc.), certain plastics, black acrylic .

Cutting: diode laser – wood, paper/cardstock, leather, fabric, MDF, dark opaque acrylic, etc..

Software Compatibility: xTool Creative Space; also supports SVG/DXF/JPG/PNG and other common file types .

Connectivity: USB or Wi-Fi connection to PC or mobile.

Power Supply: 24 V 5A DC input . Warranty: 12 months manufacturer warranty .

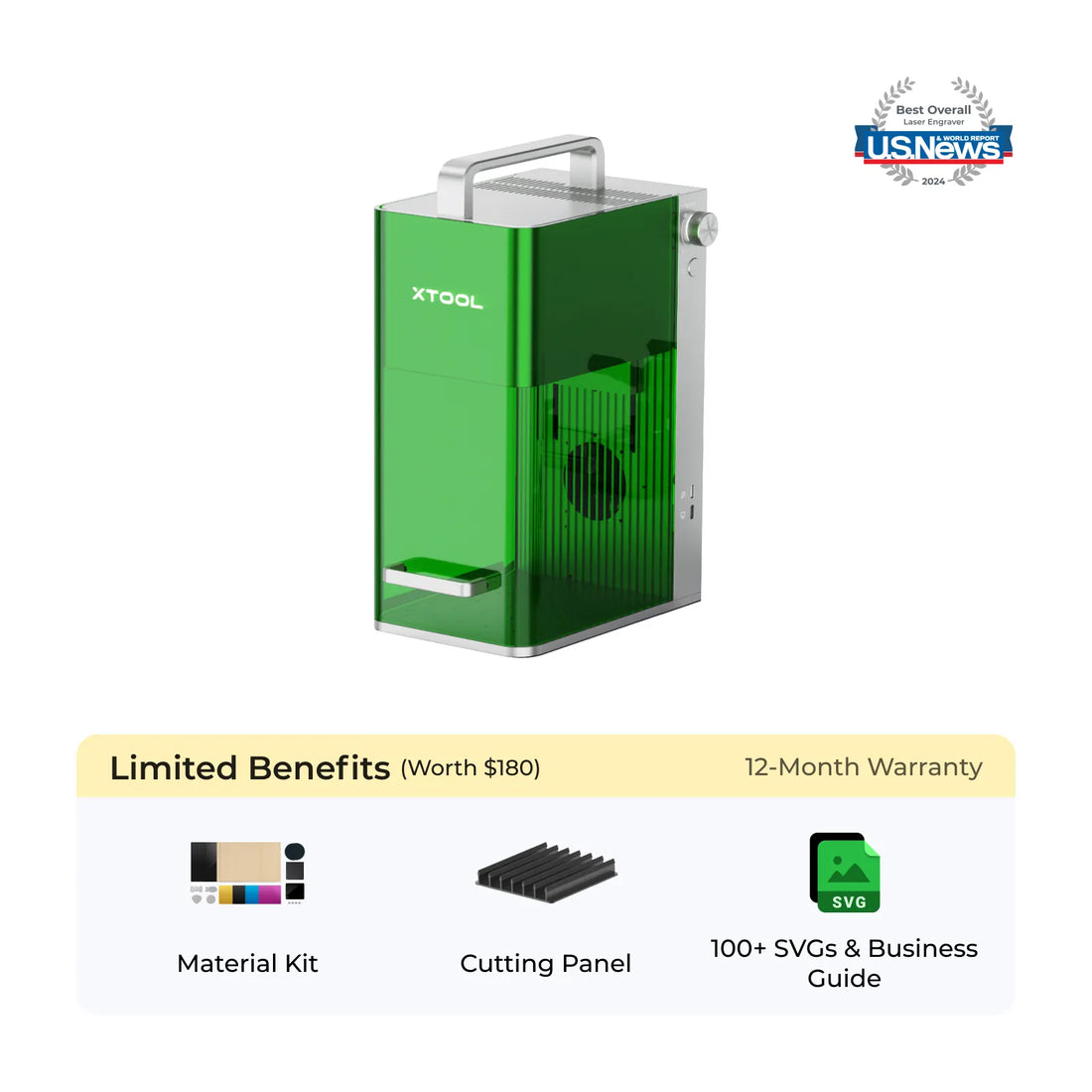

Included Accessories: The standard F1 Portable package includes the pre-assembled F1 dual-laser machine, power adapter, and necessary cables. It also comes with an attached foldable shield cover and built-in exhaust fan for immediate use . (A carrying handle is integrated into the design for portability.) A basic toolkit and user manual are provided to help you get started.

Optional Accessories: Users can enhance the F1 Portable with add-ons. Notably, a Slide Extension rail is available to increase the x-axis engraving length to 400 mm for linear objects . For cylindrical objects like tumblers, the F1 supports the xTool RA2 Pro Rotary attachment (with an adapter) to enable rotary engraving . To maintain air quality, you can attach the xTool Desktop Air Purifier, a 3-stage filtration unit that removes smoke and odors when cutting/engraving . Additionally, a custom xTool F1 Rolling Hard Case is offered for secure transport – featuring a shock-resistant shell and foam slots for the F1 and its parts (ideal for mobile makers). All these accessories allow you to tailor the F1’s capabilities to your needs.

Bundle Options:

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.
• Free Cutting Panel ($30)
• Slide Extension: Extend 4X working area.
• Free 100+ SVGs & Business Guide

F1 Deluxe Bundle

Contains xTool F1, Free Material Kit ($50), Free Cutting Panel ($30), Slide Extension, RA2 Pro, Desktop Air Purifier, and Free 100+ SVGs & Business Guide

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.
• Free Cutting Panel ($30)
• Slide Extension: Extend 4X working area.
• RA2 Pro: Process 99% curved objects with 4 in 1 rotary.
• Desktop Air Purifier: Process at home with 99.97% purification rate.
• Free 100+ SVGs & Business Guide

F1 Lite + RA2 Pro

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.
• Free Cutting Panel ($30)
• RA2 Pro: Process 99% curved objects with 4 in 1 rotary.
• Free 100+ SVGs & Business Guide

F1 Lite Deluxe Bundle

• Free Material Kit ($50): Basswood, black acrylic, stainless steel business card, and more.
• Free Cutting Panel ($30)
• Slide Extension: Extend 4X working area.
• RA2 Pro: Process 99% curved objects with 4 in 1 rotary.
• Desktop Air Purifier: Process at home with 99.97% purification rate.
• Free 100+ SVGs & Business Guide
