What is it:

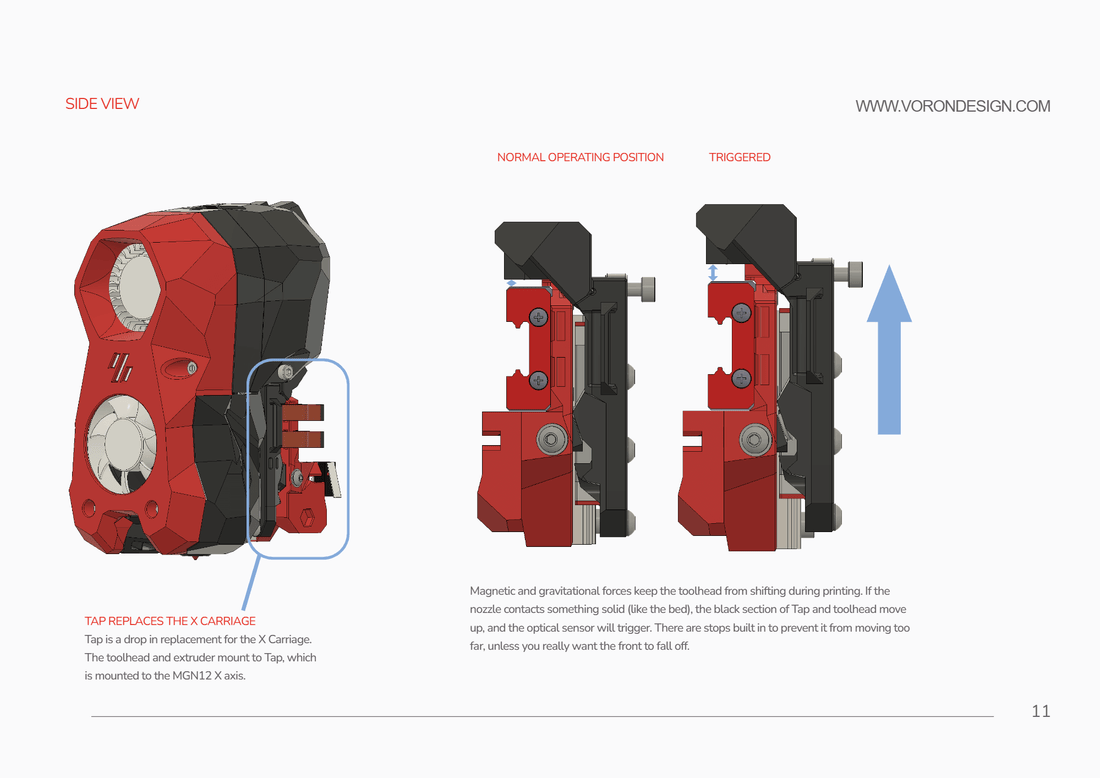

Tap is a drop-in replacement for the X carriage which includes a nozzle probe mechanism. For Voron Trident and V2 printers. This kit includes everything you need to install it, minus printed parts.
Specs:
-
Hardware 1 50 mm MGN9 Rail see cutting guide, Ends deburred, overall length +/- 1 mm Hardware 1 MGN-9H Carriage Medium preload (Z1) is preferred, but regular preload will work. Carriage must be removable from rail. Hardware 2 6 mm x 3 mm magnet 6 mm diameter, 3 mm tall cylinders. N52 strength preferred, N35 or higher strength required. Hardware 11 M3 Heatset Insert Standard Voron spec 4.7 mm diameter inserts Hardware 3 H3 Hex Nut ISO 4032 Hardware 8 M3 Washer DIN 125, 7mm outer diameter, 0.5 mm thickness Hardware 2 M3 x 20 SHCS Socket head cap screw Hardware 3 M3 x 16 SHCS Socket head cap screw Hardware 3 M3 x 12 SHCS Socket head cap screw Hardware 1 M3 x 6 SHCS Socket head cap screw Hardware 2 M3 x 6 FHCS Flat head cap screw. MUST BE MAGNETIC. No stainless, may be black oxide or zinc coated. Hardware 2 M3 x 12 BHCS Button Head Cap Screw Hardware 2 M3 x 8 BHCS Button Head Cap Screw Hardware 10 M3 x 6 BHCS Button Head Cap Screw Hardware 2 M3 x 50 BHCS/SHCS Button or Socket Head Cap Screw, fully threaded
Screws are black oxide
