AC power inlet R-3014s

$9.99 Sale Save
AC power inlet  R-3014s
AC power inlet  R-3014s
AC power inlet  R-3014s
AC power inlet  R-3014s

AC power inlet R-3014s

$9.99 Sale Save
Style Pre crimped and with fuse

Item is in stock Only 1 left in stock Item is out of stock Item is unavailable

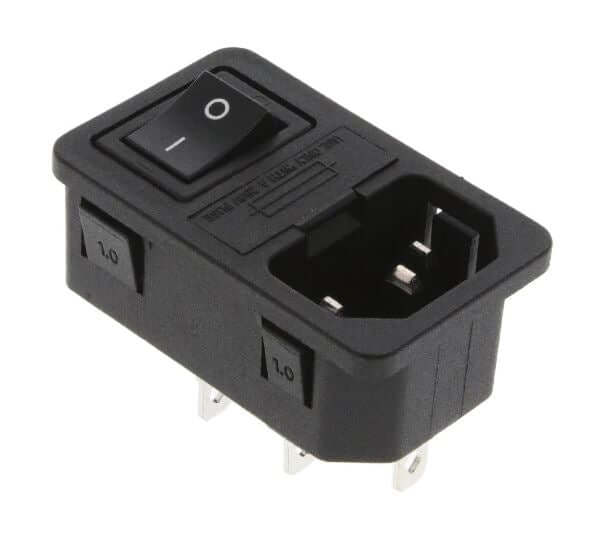

Fused power inlet for Voron printers

Standard: IEC 60320 C14
Rating: 15A 250V AC / 10A 250V AC
Insulation Resistance: 100MΩ 500V DC / 1 minute
Dielectric Strength: 2000V AC / 1 minute
Housing Material: Thermoplastic 94V-2~V-0

Backed by our 45-day no questions asked return policy.

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
0%
(0)
50%
(1)
0%
(0)
J
Josh
Not Great

Pros: switches both hot and neutral.

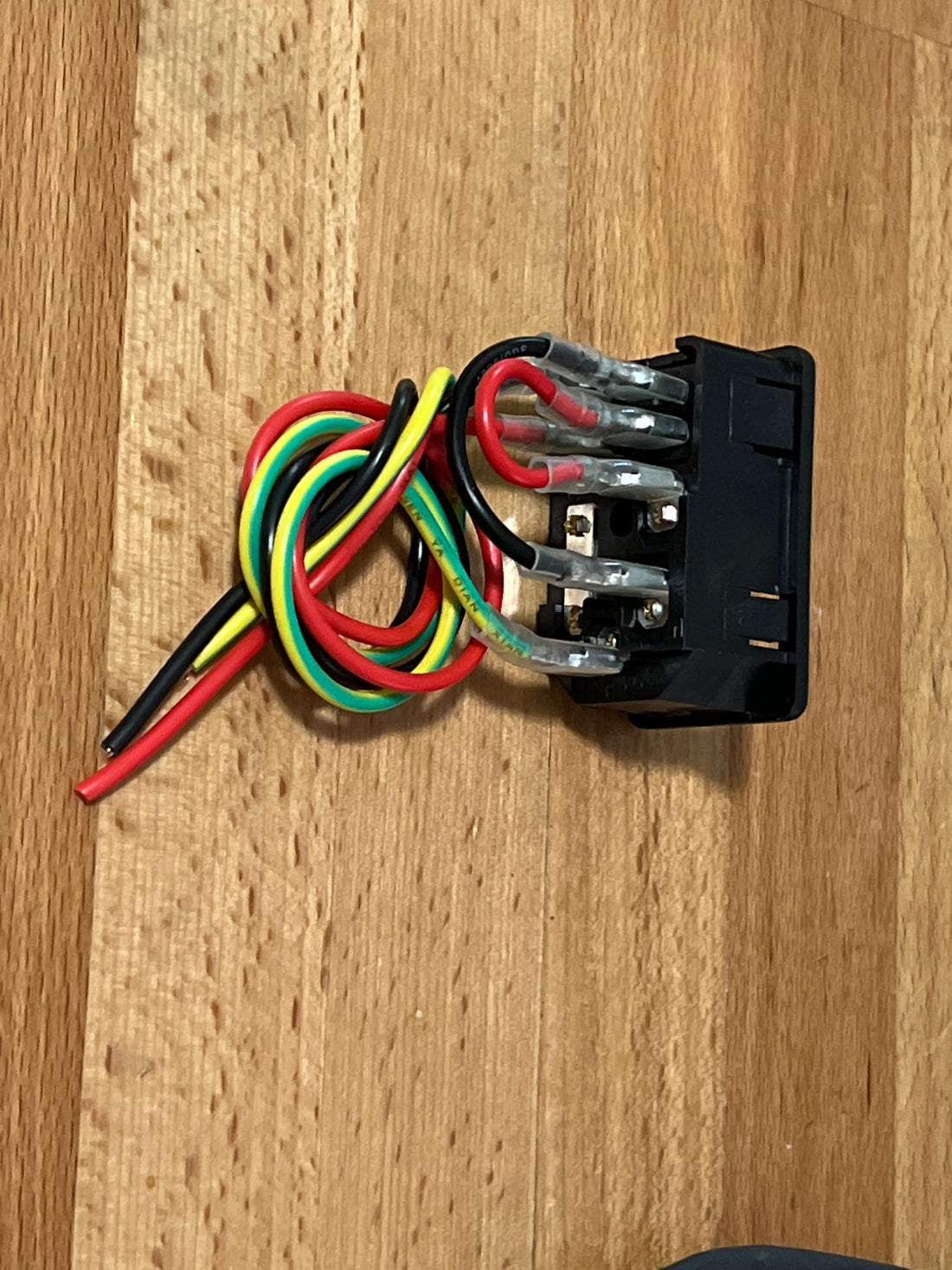

Cons: Tabs are 0.71mm thick, thinner than Ender 3 inlet which uses standard 0.81mm tabs. Included wires are not thick enough for use in 3D printer. Voron recommends 16 gauge. 16 gauge is also what Ender 3 uses for mains wiring. This inlet comes with 20–22-gauge wire. It's far too thin. It doesn't come with a wiring diagram, and the lack of one is confusing because the included wires are incorrectly color coded for the US market. Live/hot wires should be black, and neutral wires should be white. This includes red wires on live and black wires on neutral. I hooked it up backwards until I checked for continuity and realized I had been deceived.

Hi there, thank you for taking the time to leave a review for our AC power inlet R-3014s. We apologize for any inconvenience you experienced with our product. We appreciate your feedback and we will definitely take it into consideration for future improvements. As for your specific concerns, we understand that you were not satisfied with the thickness of the tabs and the included wires.

We want to assure you that we only use high-quality materials for our products and this particular one will be pulled from our inventory until it meets that mark.

In regards to the wiring diagram, we apologize for the confusion and we will make sure to include one in the future. We want to make things right for you, so we will be happy to refund your order.

We value your satisfaction and we hope to have the opportunity to serve you better in the future. Thank you for choosing Fabreeko.

Y
Young

As advertised and ahead of schedule.
