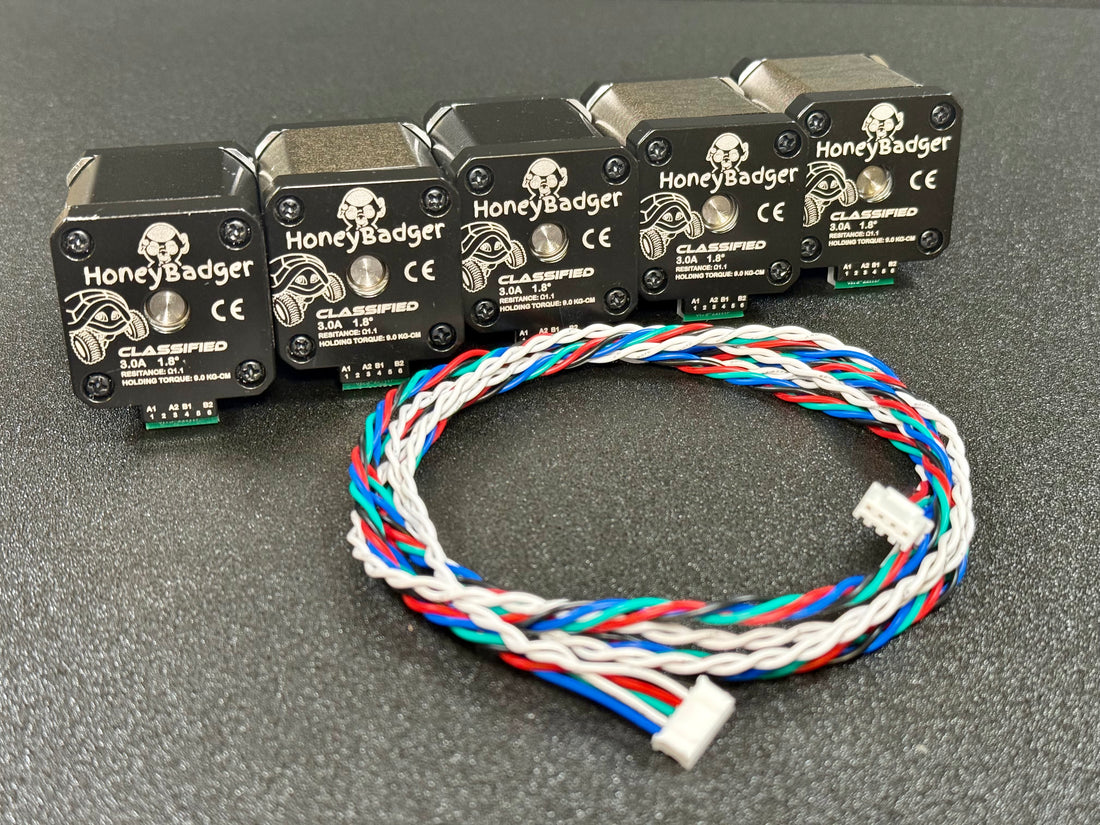

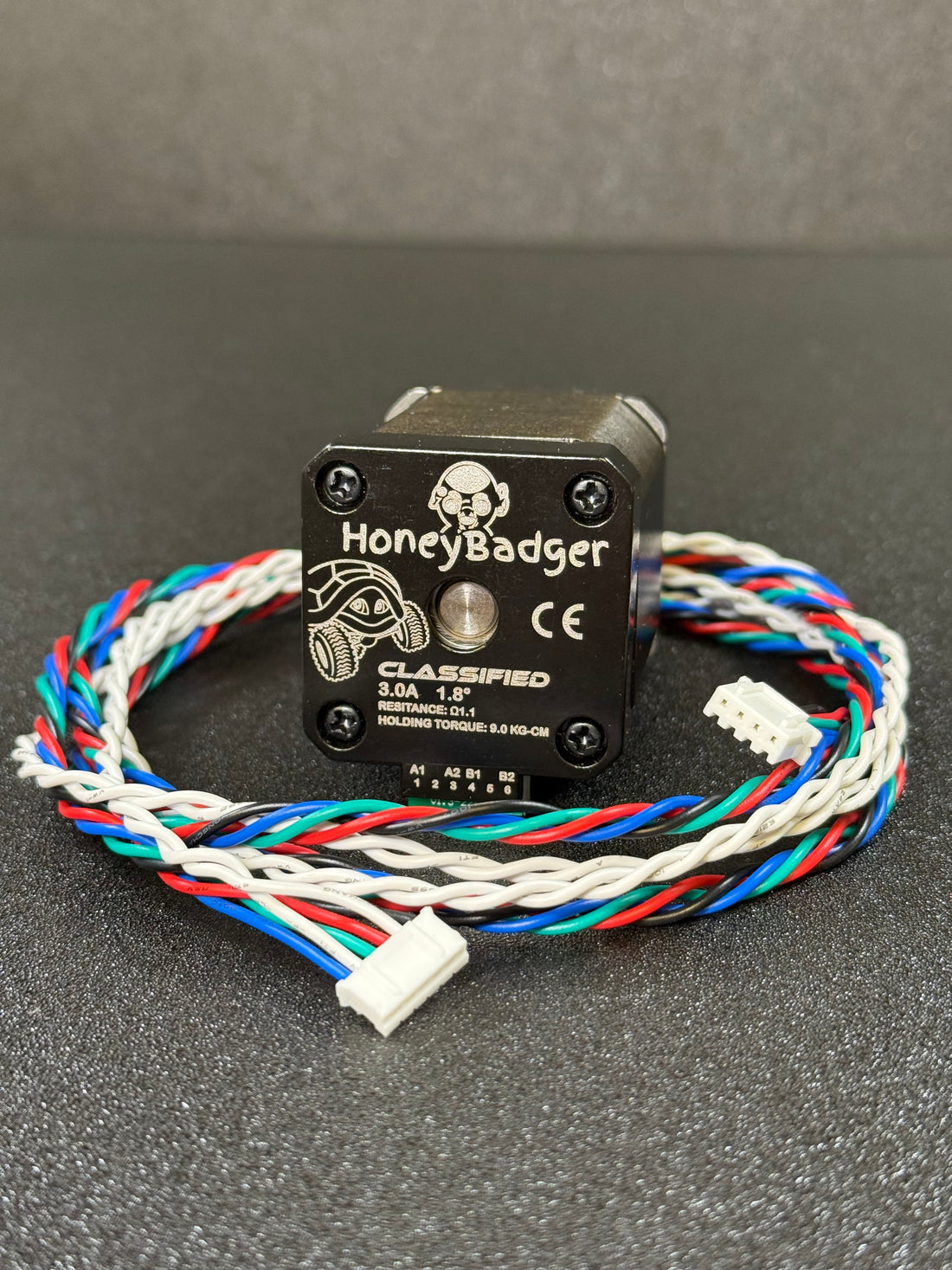

Nema 17 2.5A RMS rated Classified steppers by HoneyBadger
Open beta of our new 60mm long 2.5 RMS amp rated motors, with 8mm thick shafts (requires 8mm pulleys located here) NSK bearings and 55 mm shaft length.
Specs:
- 2.5-2.85 amps RMS with 5160 steppers
- 1.1 Ohnms resistance
- 8mm thick 55mm long shaft
- 60mm long body with standard Nema 17 motor body
- holding torque 9.0kg-cm
- 1.8 degree stepper
- built in Thermistor (10k NTC 3435 beta)
- Wiring pairs: A1 Black A2 Green B1 Red B2 Blue
- Fep Cables with extensions 1M long (1,000 MM)
- High temperature rated
Notes:
for thermistor settings please use this
[thermistor 10K NTC]
temperature1: 25
resistance1: 10000
beta: 3435
Backed by our 45-day no questions asked return policy.
