Mercury One kit for ender 5/pro core XY conversion built to BOM+ specifications using complete stainless steel bolts, stainless steel linear rails, and motors.
For more info on the Mercury one project click here

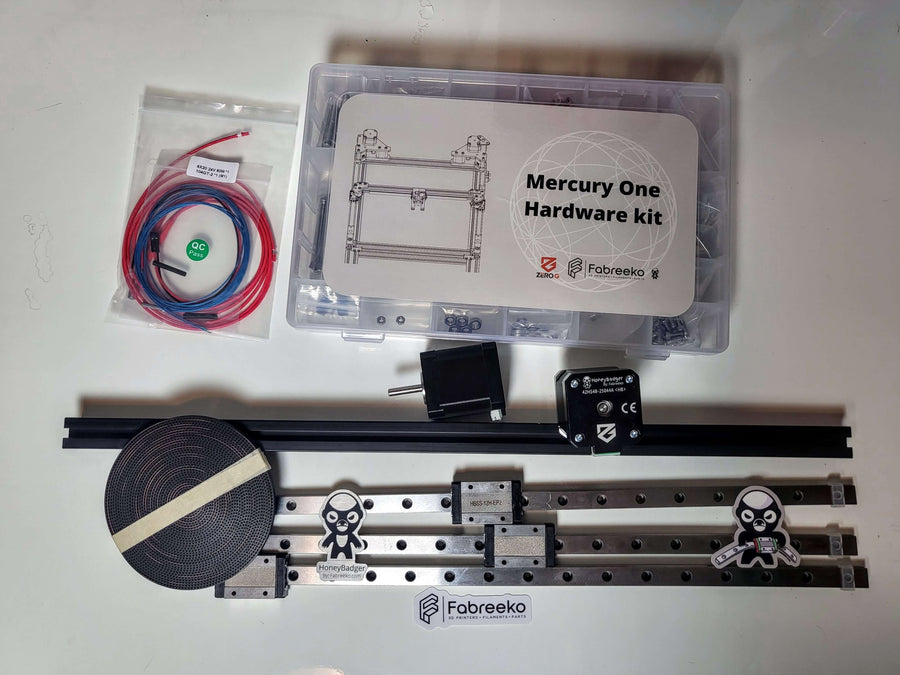

kit includes the following:
- HoneyBadger MGN12H stainless steel linear rails 330mm or 450mm x3
- HoneyBadger Nema 17 1.8 degrees 48mm body motors x2
- Stainless steel screws:
| Bolt | M5X50 | ISO 4762 / DIN 912 | 8 |
| Bolt | M5X25 | ISO 4762 / DIN 912 | 6 |
| Bolt | M5X20 | ISO 4762 / DIN 912 | 3 |
| Bolt | M5X16 | ISO 4762 / DIN 912 | 2 |
| Bolt | M5X12 | ISO 4762 / DIN 912 | 2 |
| Bolt | M5X10 | ISO 4762 / DIN 912 | 7 |
| Bolt | M3X30 | ISO 4762 / DIN 912 | 1 |
| Bolt | M3X25 | ISO 4762 / DIN 912 | 2 |
| Bolt | M3X20 | ISO 4762 / DIN 912 | 7 |
| Bolt | M3X16 | ISO 4762 / DIN 912 | 2 |
| Bolt | M3X8 | ISO 4762 / DIN 912 | 30 |
| Shim ring | M5x10x1 | DIN 988 | 21 |
| Washer | M3 | ISO 7089 / DIN 125 | 2 |
| Nuts | M3 Hexnut | ISO 4033 / DIN 934 | 1 |
| Nuts | M5 Hexnut | ISO 4033 / DIN 934 | 4 |
| T-Nuts | M3 | T-Nut for 2020 | 18 |
| T-Nuts | M5 | T-Nut for 2020 | 20 |
- 370mm Black extrusion x1
- M3x5x4 mm Heat inserts x 200
- Omron D2F-5L microswitch
- 50w 24v heater x1
- 104-GT2 thermistor x1
- extra screws
- motion kit using Gates belts
-
Motion 5x30mm Precision dowel pin 10 Motion F695-2RS 5*13*4 Mm Flange bearing 20 Motion 2GT Pulley 20tooth width 7mm bore 5mm with teeth2 Motion 2GT 20T Idler For 6mm belt 2 Motion GATES-LL-2GT 5M-6MM-2GT 6 meter Extrusion 370mm/500mm 20x20 1
Revision history:
V1.0 Initial release
V1.1 all pulleys and idlers changed to black
V1.2 Bearings changed to HoneyBadger bearings and packed externally
V1.3 Ender 5 pro rails changed to 330mm to account for bigger beds <Now shipping>
