LGX® Lite Large Gears eXtruder

$69.99

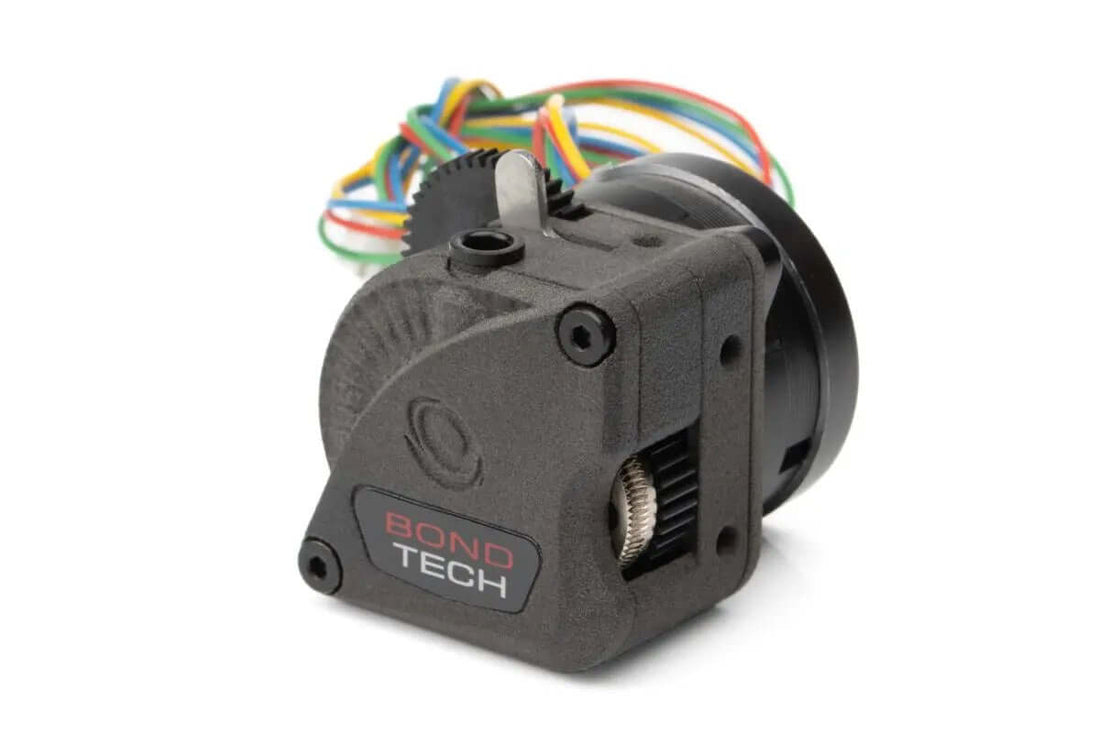

The Bondtech LGX® Lite is a filament feeder based on the LGX® Large Gears eXtruder and uses Bondtech’s new Dual Drive Technology based on larger drive gears.

Each LGX® Lite extruder is supplied with:

  • 1x LGX® Lite feeder;

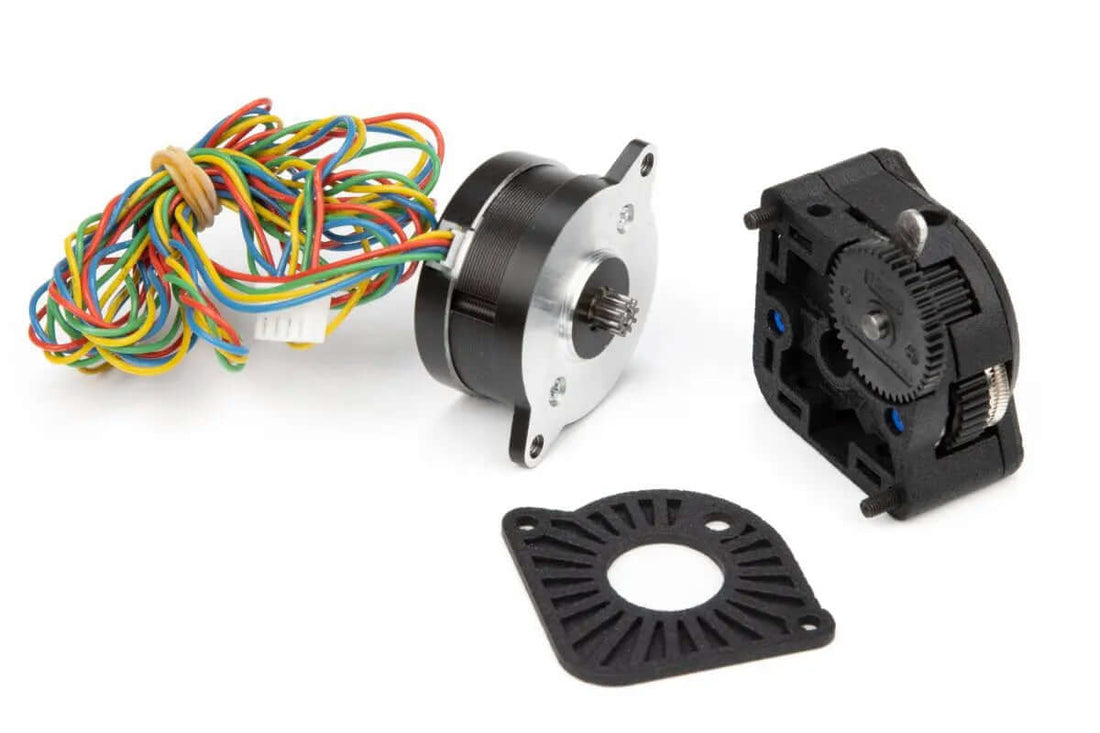

  • 1x LDO Nema14 Round 20mm pancake stepper motor;
    • 1m long lead cable
    • with JST-XH 4-pin connector
  • 1x 2mm Hex Key (recommended tool);
  • 1x Powered By Bondtech sticker.

Also shipping with additional accessories:

  • 1x Push-fit collar
  • 1x 30mm PTFE tube to use in the PTFE Tube Adapter.
  • 8x M3 square nuts for reinforcing mounting holes.



7 features of this Bondtech eXtruder:

  • Larger drive wheels, for increased filament grip;
  • Filament pre-tension lever, for repeated results;

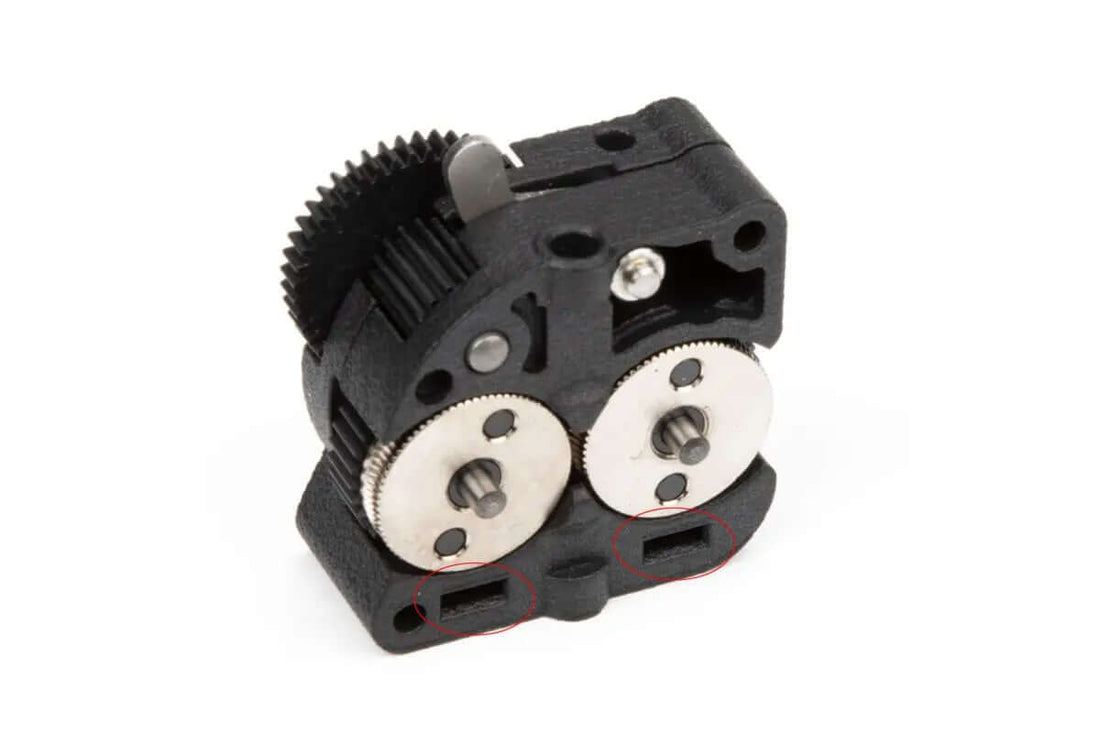

  • Drive wheels’ maintenance windows, for easy cleaning;
  • Compact, light & centered filament path, for increased performance and compatibility;

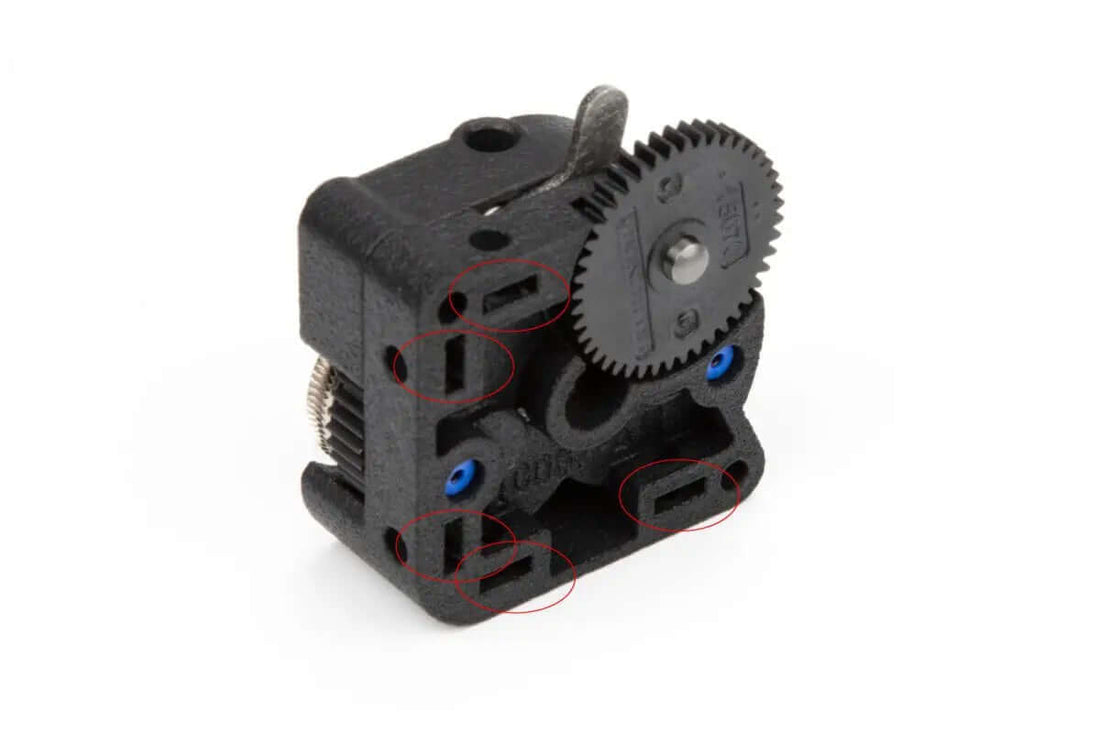

  • Multiple mounting hole patterns, for easy and flexible setup;
  • Compatible with Nema14 round stepper motors;
  • A small step for a greener Future, craft boxes without bleaching & no coating.
3D Printed Housing using PA12

The housing parts are professionally printed with nylon for maximum strength and precision and higher temperature resistance.
