What is it:

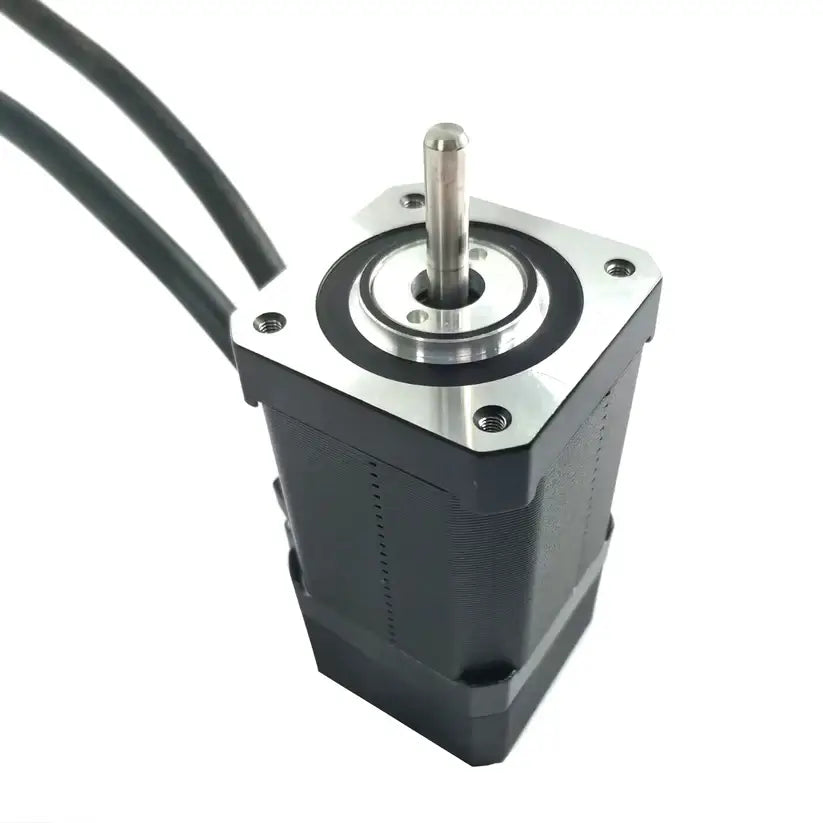

Closed loop stepper motor from LDO

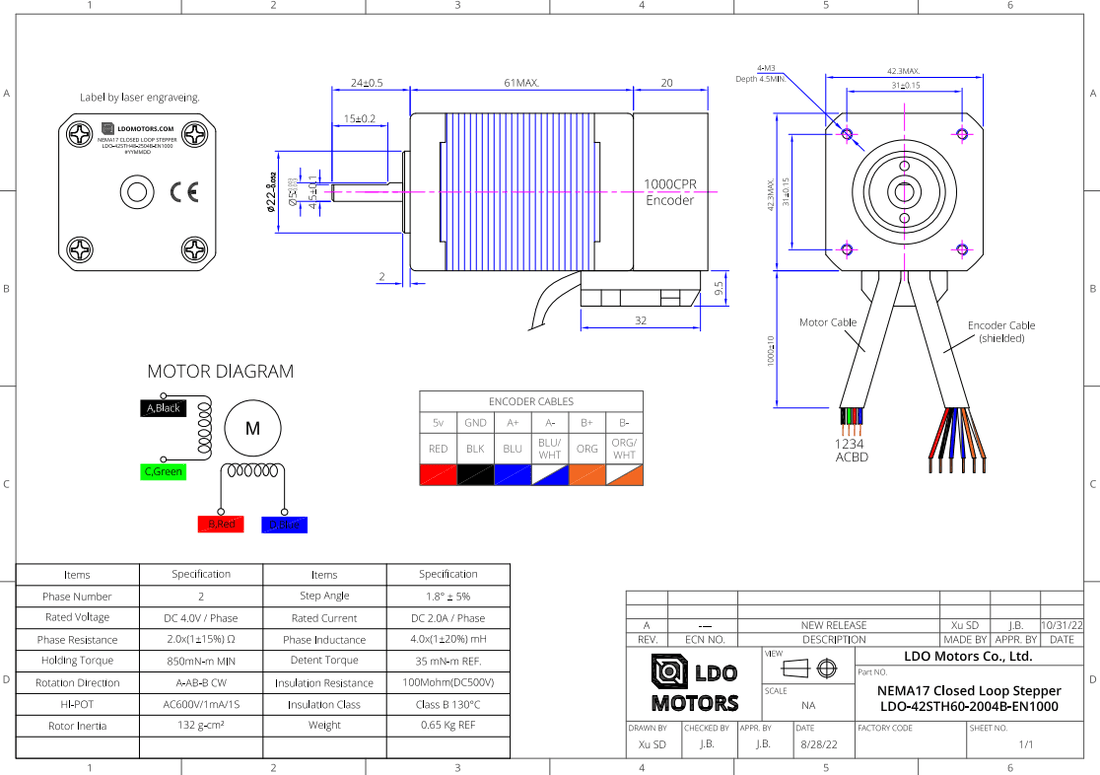

Specs:
- NEMA 17
- 1.8° Step Angle.
- 200 Steps Per Revolution.
- 2.0 Amp
- 850mN-m Holding Torque.
- 61mm Body. 20mm Encoder
- 22mm Output Shaft (5mm diameter) (15mm D-Shaped)
- Closed Loop
Note:
Requires connection to an encoder channel like this Duet 3D
