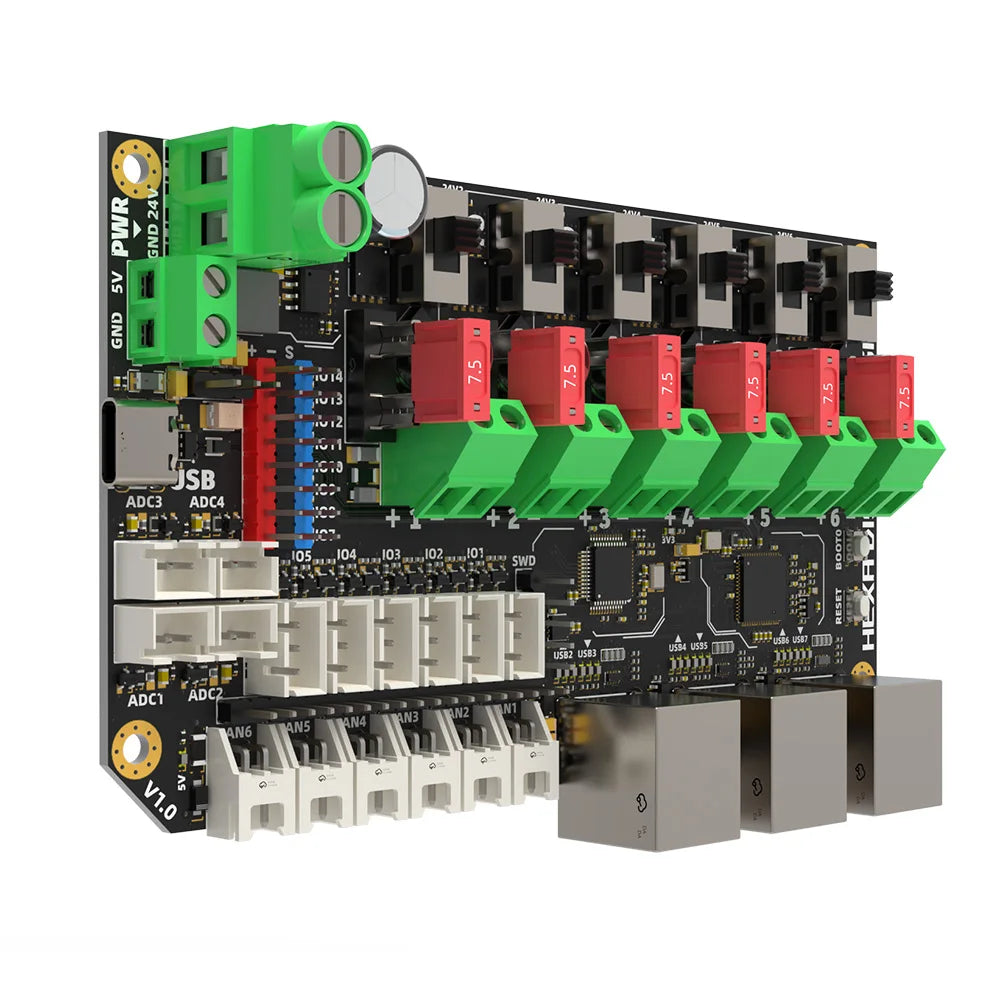

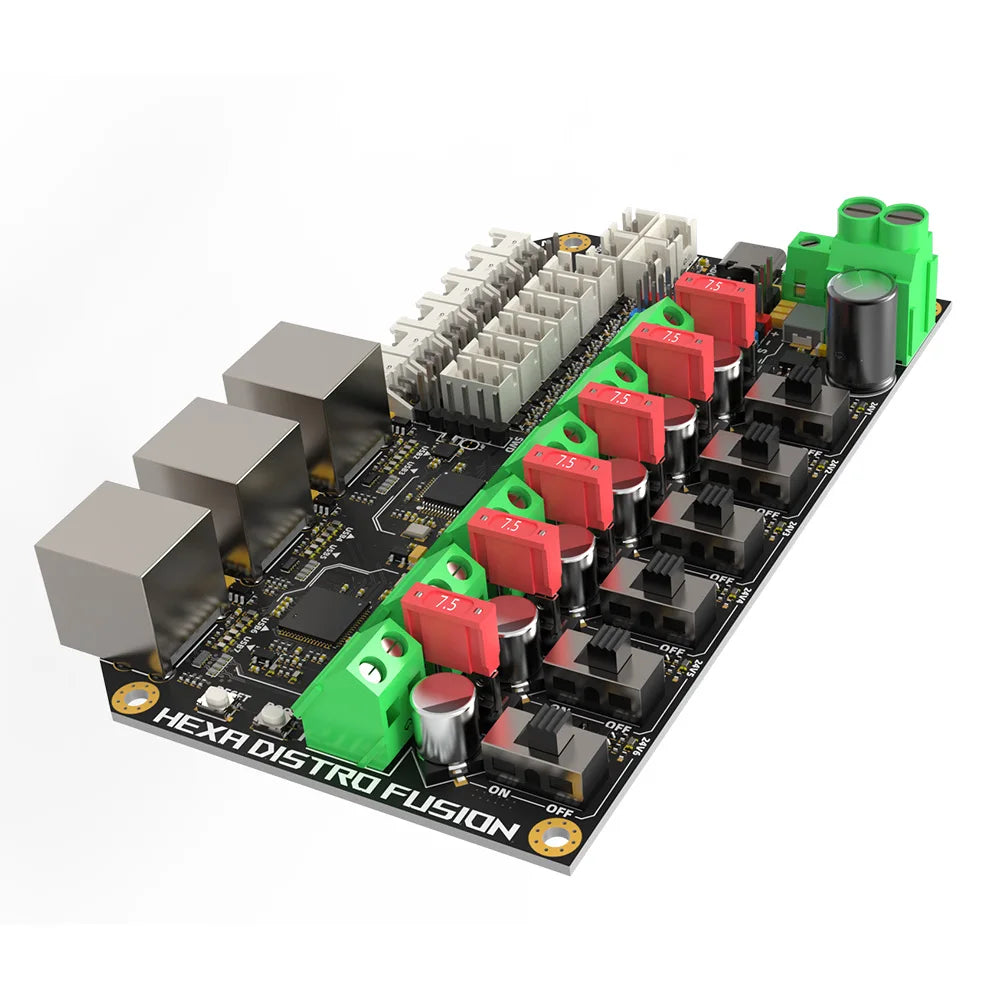

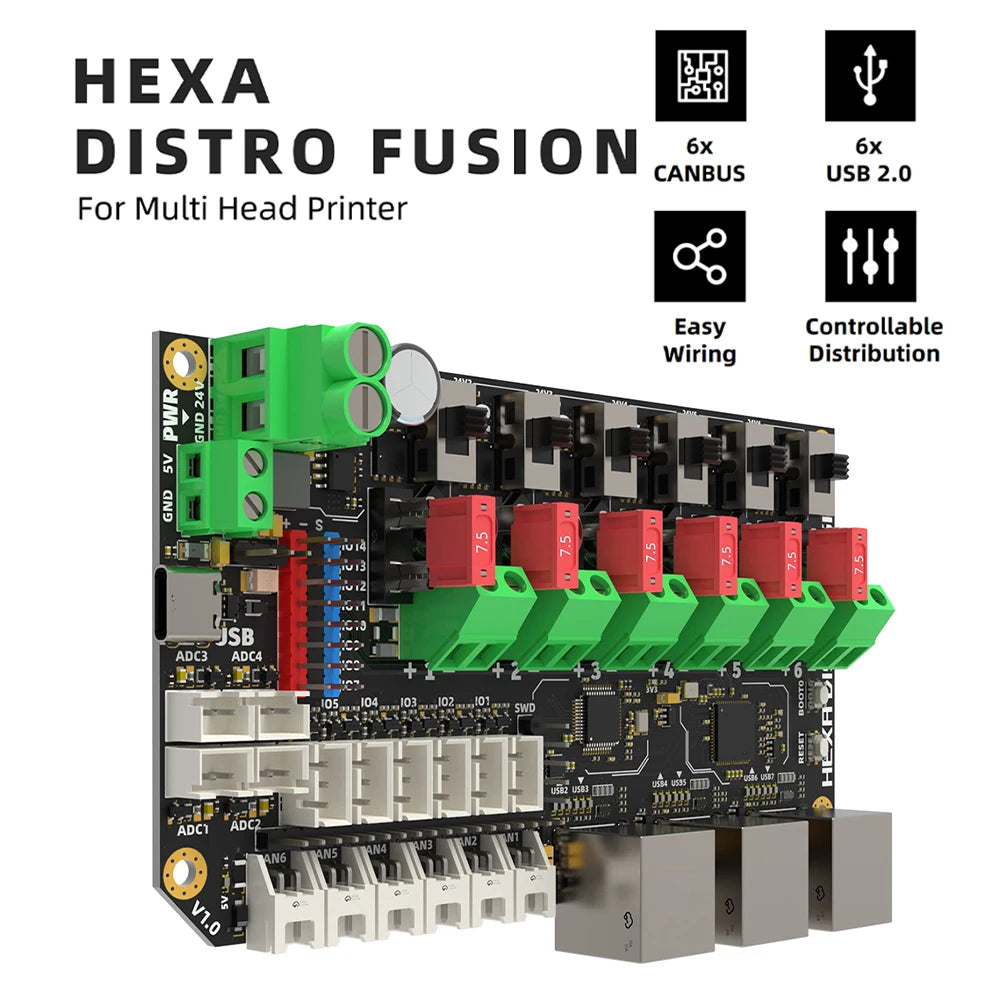

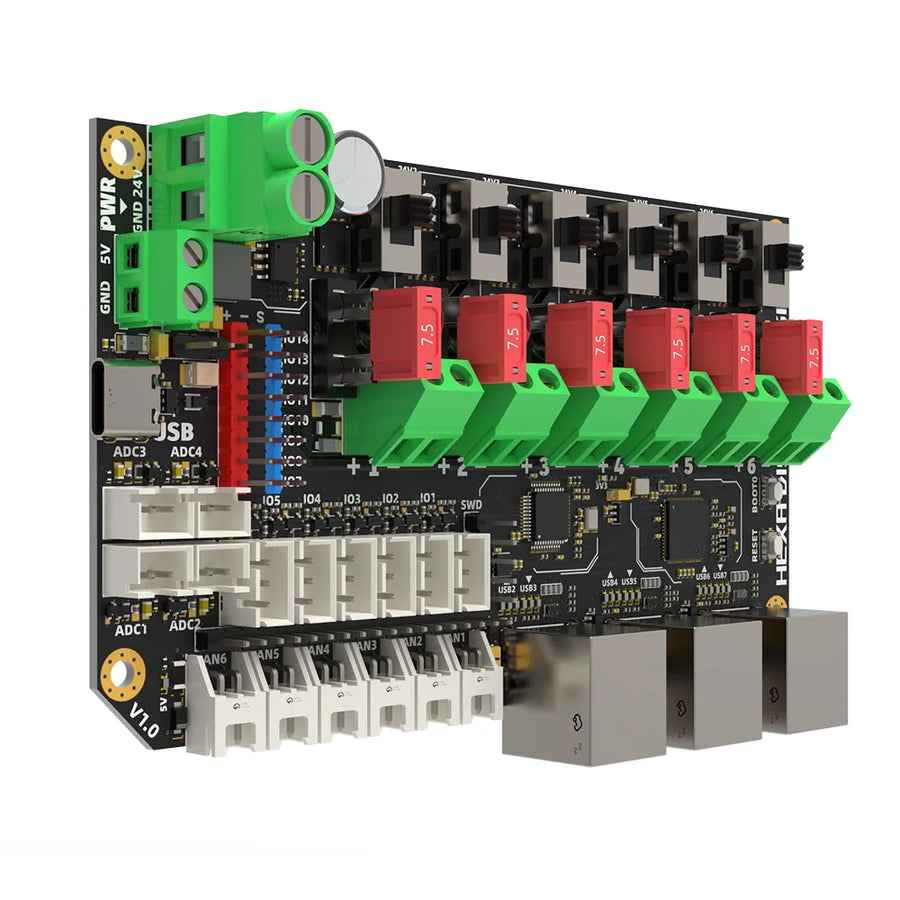

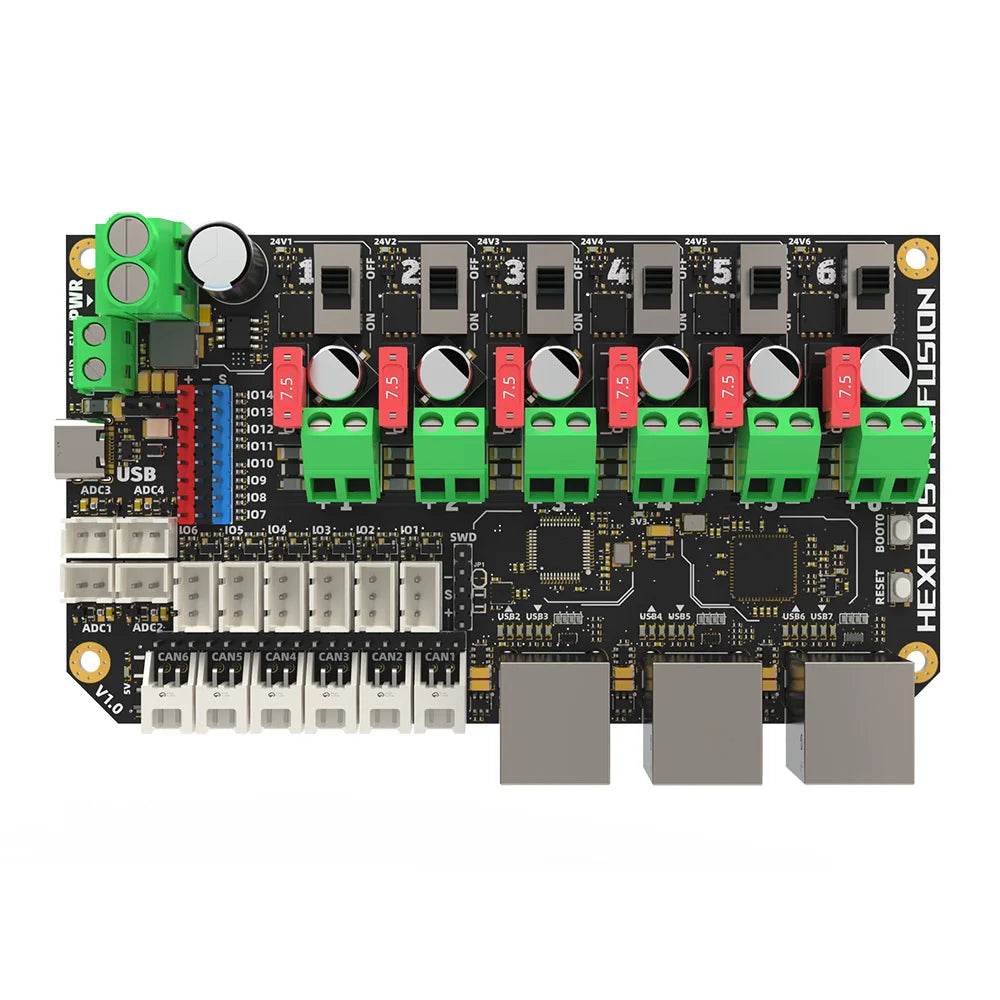

FYSETC Hexa Distro Fusion Board Based on USB2517 with CAN 2.0 Connectors For Voron Multi Head Printer

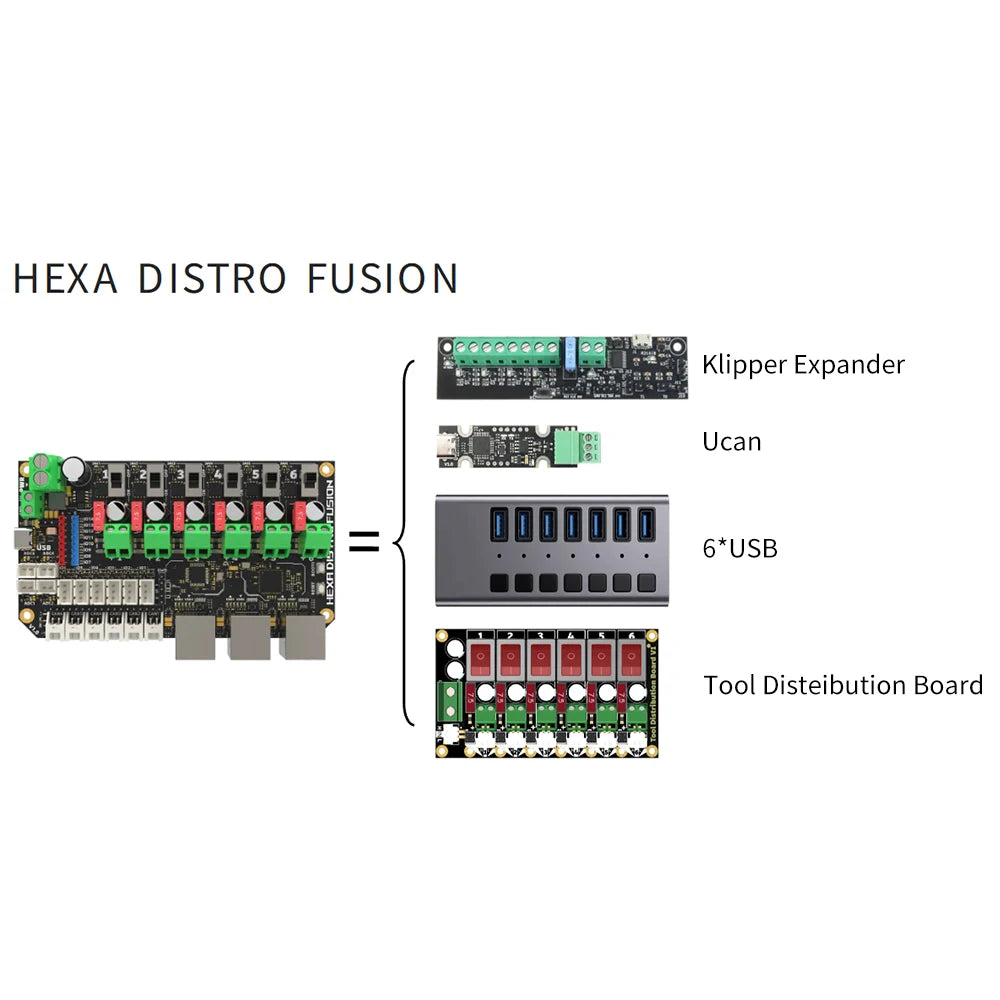

This board combines the functionality of the Klipper expander, Ucan board, USB expansion and Toolhead distribution boards.

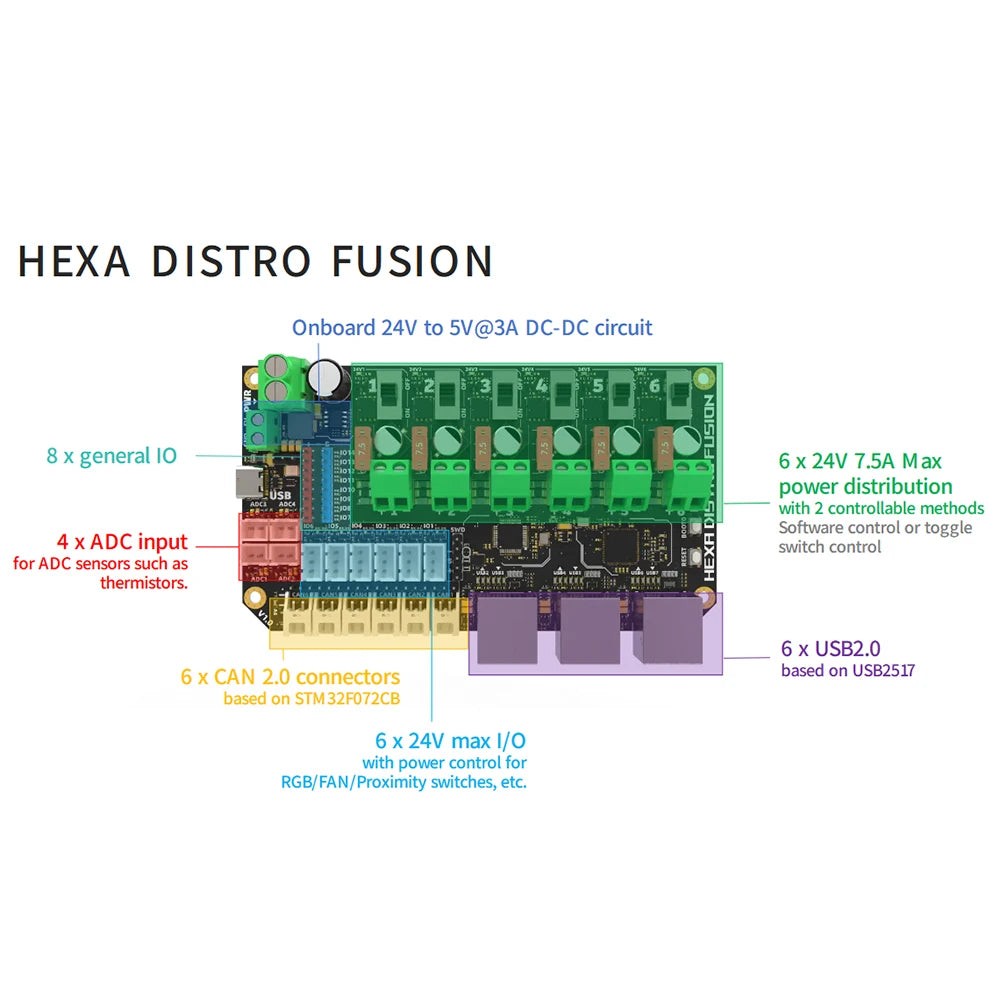

Specs:

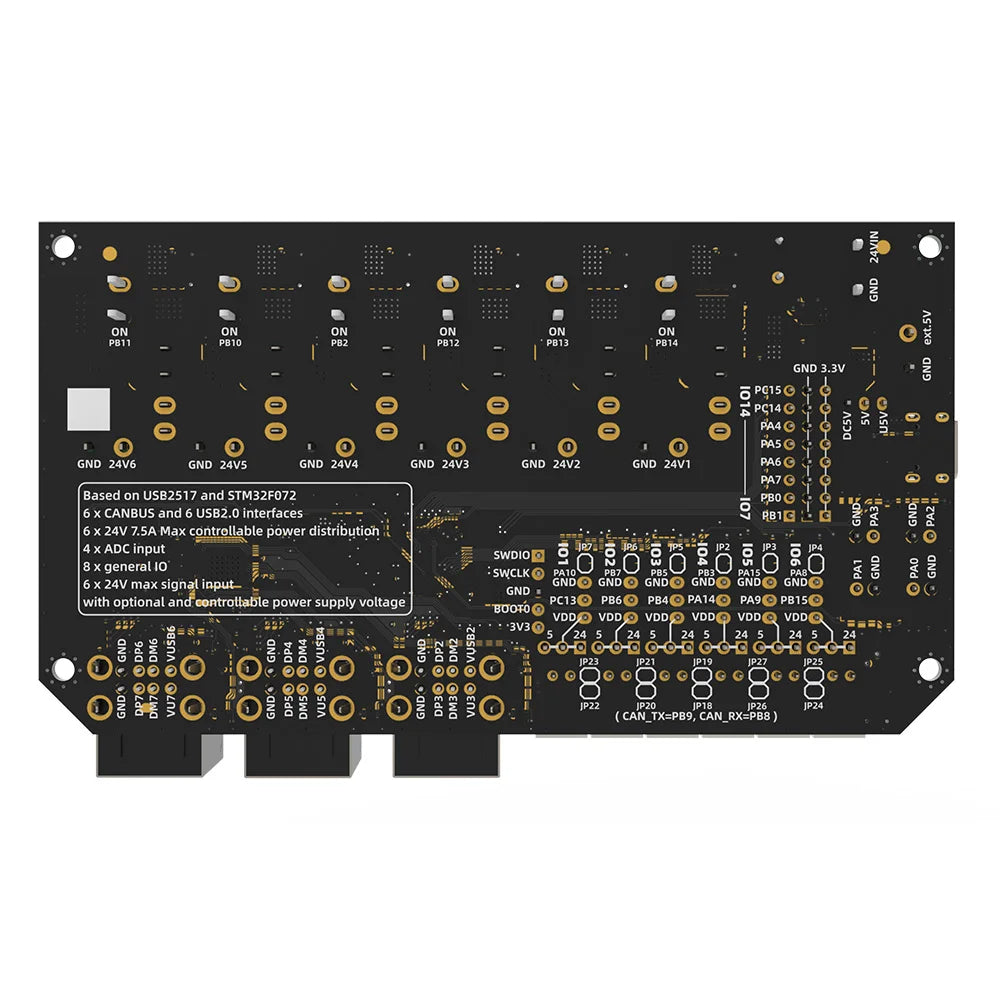

- 6 x USB2.0 based on USB2517
- 6 x CAN 2.0 connectors based on STM32F072CB
- 6 x 24V 7.5A Max power distribution with 2 controllable methods
- 4 x ADC input, for ADC sensors such as thermistors.
- 8 x general IO
- 6 x 24V max I/O with power control for RGB/FAN/Proximity switches, etc.
- Onboard 24V to 5V@3A DC-DC circuit
- USB working status LED indicators
- Onboard RESET and BOOT0 buttons for easy firmware update
