What is it?

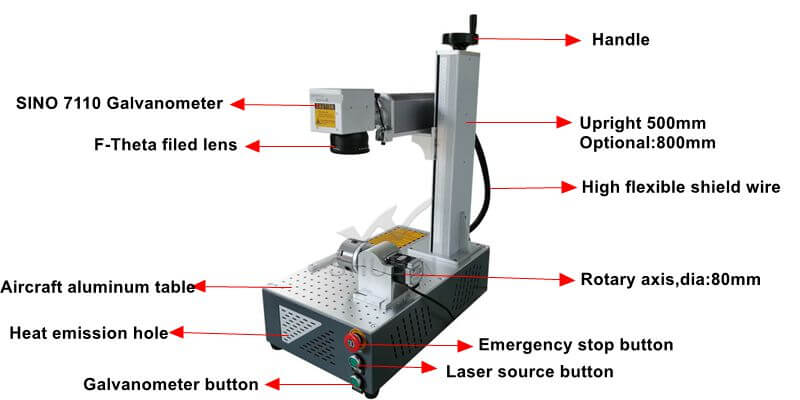

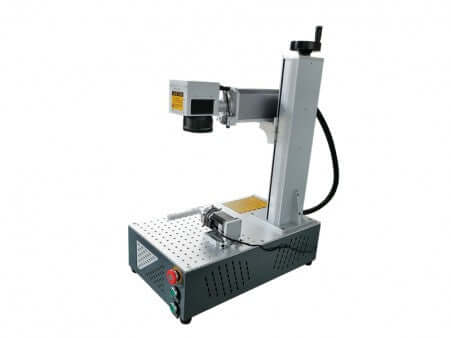

Fiber laser for marking or cutting metals like silver, alloy, aluminum, stainless steel, copper etc, and some non-metal materials, such as PVC, PC, black acrylic. Laser source is manufactured by JPT which ensures long lasting operation with constant power.
**This item has a 2-week Leadtime and will ship in a wooden box directly to your home. other models are available with more power or Fiber MOPA laser**
Specs:
Laser Parameter |
Laser source |
JPT |
Laser wavelength |
1064nm |
|
Average output power |
30W |
|
Software |
JCZ (EZCAD2.14.11) |
|
Modulation frequency range |
20KHZ-80KHZ/2000KHZ |
|
Galvo Parameter |
Maximum speed |
7000MM/S |
resolution |
0.001mm |
|
Repositioning precision |
±0.003mm |
|
Optical output characteristics |
Marking area |
110mm 150mm 175mm 200mm 300mm (specify on order notes) |
Minimum line width |
0.01mm |
|
Minimum height of characters |
0.2mm |
|
Cooling system |
Cooling way |
Air cooling |
System Properties |
Voltage |
110V/220V single phase |
Upright height |
500mm (optional:800mm) |
|
Environmental requirements |
0-35℃,90% humidity |
