What is it:

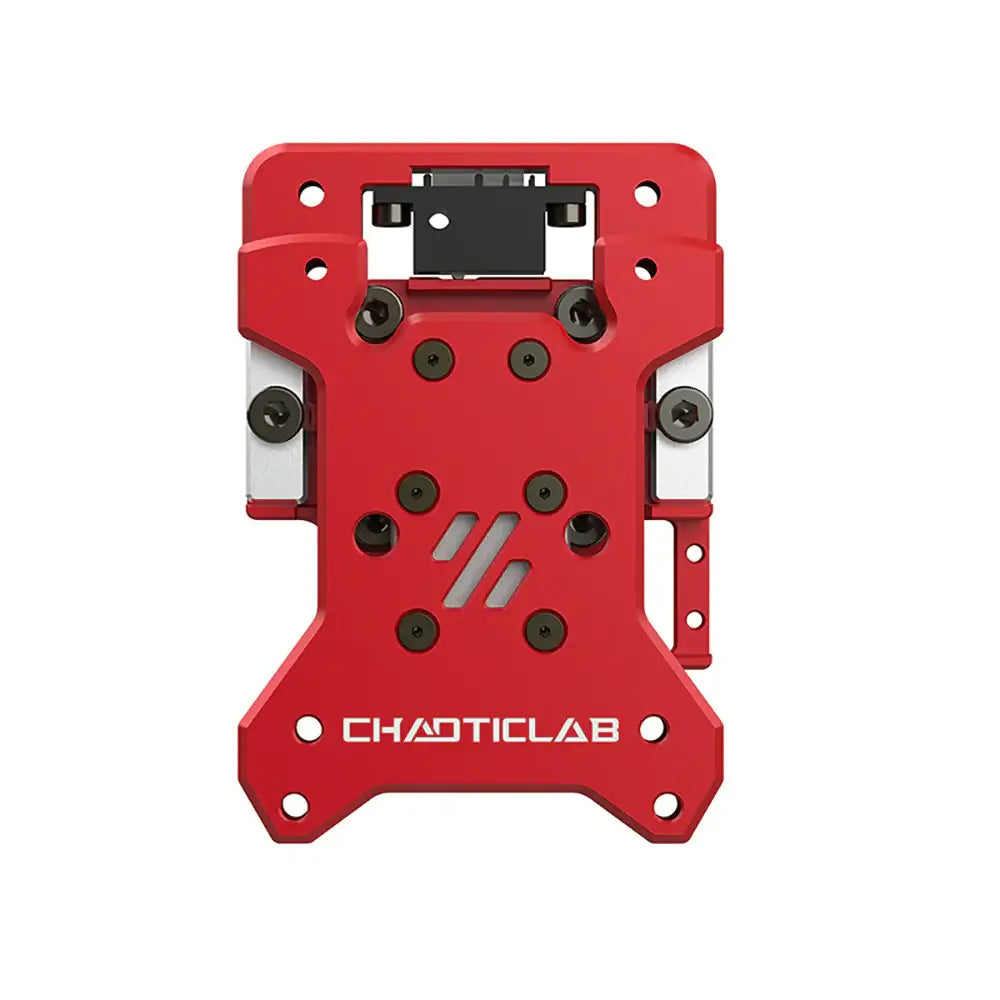

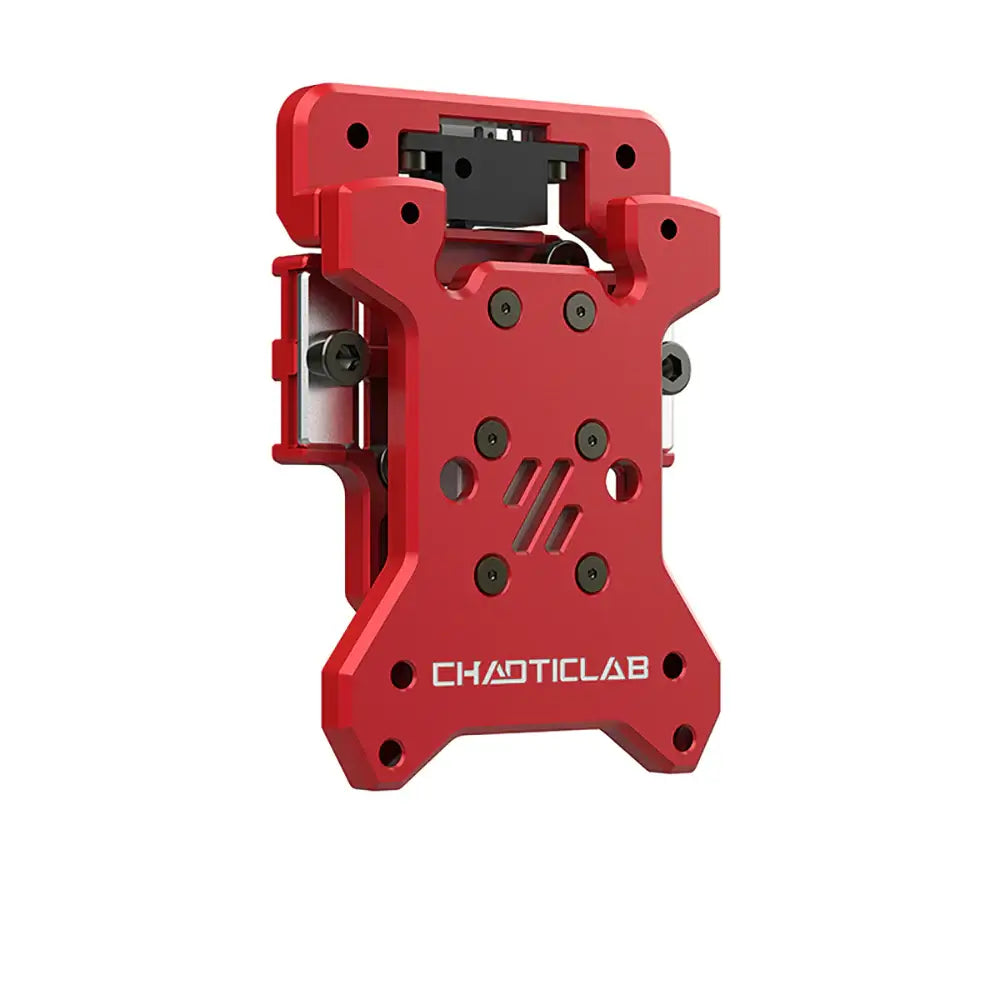

Smaller and lightweight, this full CNC version of tap features a Hiwin rail for excellent performance and durability.

Experience higher accuracy and reliability with the OMRON EE-SX4320.

Specs

  • Ultra-high precision: 0.4μm (0.0004mm)
  • Material: All Al6061 T6 aluminum structure. Enhanced wear resistance and high-temperature resistance
  • Size: 45mm*13mm*68mm
  • Ultra Light body: 59.8g

Notes:

The effective travel of the printer will not be affected (the printed version will reduce the Y travel by 3mm or the nozzle will hit the door)

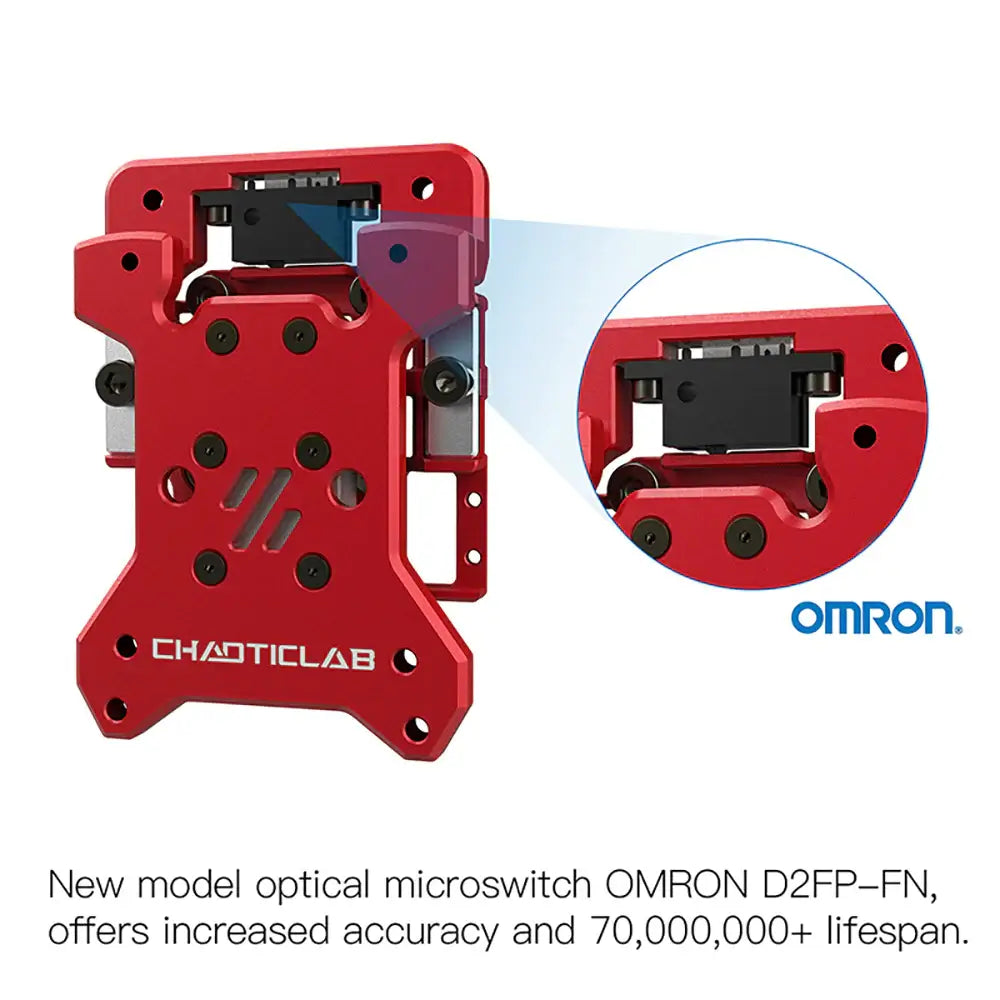

Omron D2FP-FN new optical microswitch. Lower noise, faster trigger, higher sensitivity and accuracy, and long service life.

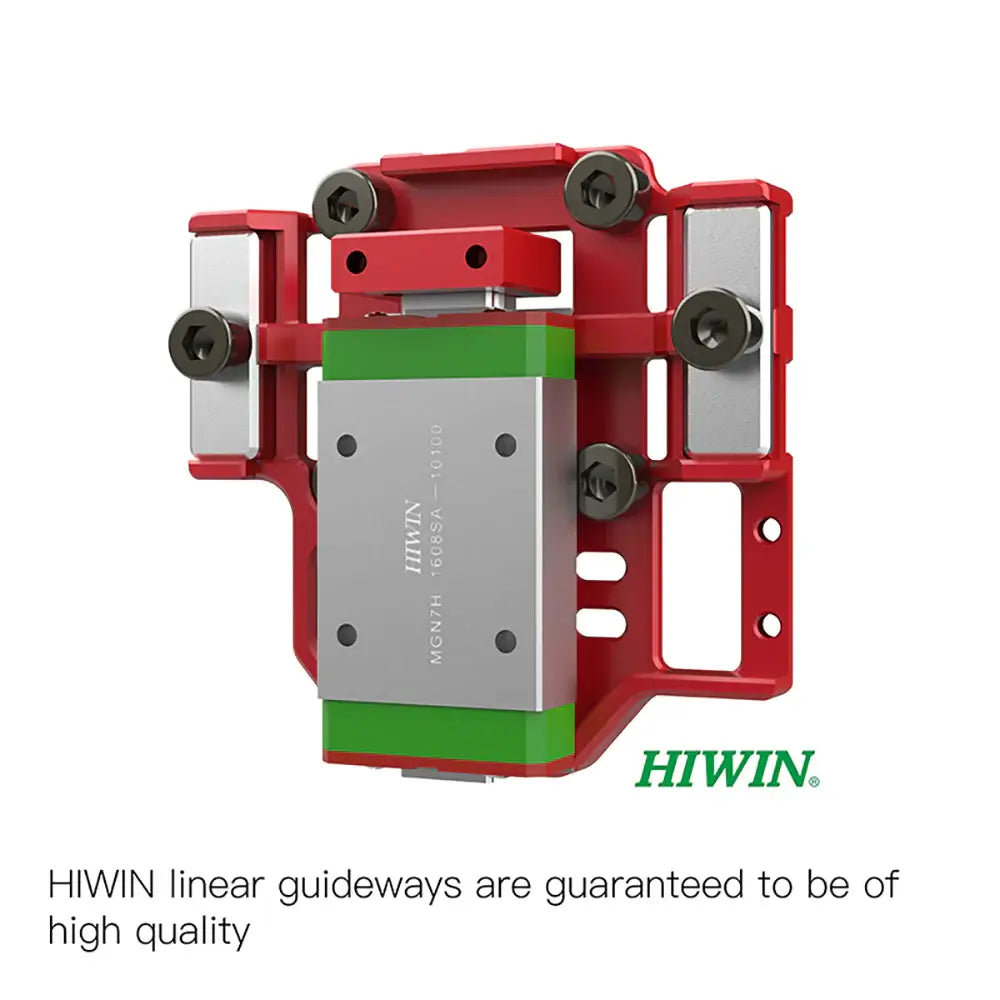

HIWIN pre-loaded linear guide rail, stronger stability, higher sliding precision

Life span: 70,000,000+ probes

Easy installation: No need to assemble and disassemble TAP itself! (Do not disassemble by yourself, otherwise, the product may be damaged!)

Suitable for: VORON V2.4 R1&R2 and VORON Trident printers

Not suitable for: Switchwire, V1.8, Legacy VORON V0

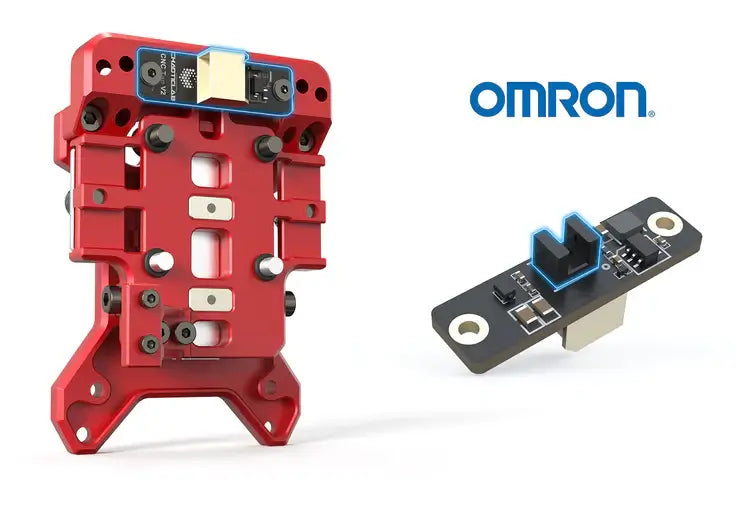

V2: Transmissive Photomicrosensor with 0.3mm Wide Aperture
V1:Contactless Optical Microswitch

5-24V

Expanding the voltage range in the upgraded V2 tosupport 5-24V for flexibility.

Product File:

CNC Voron Tap Build Guide
