Carbonara CF tube for Voron Printers
Carbonara CF tube for Voron Printers
Carbonara CF tube for Voron Printers

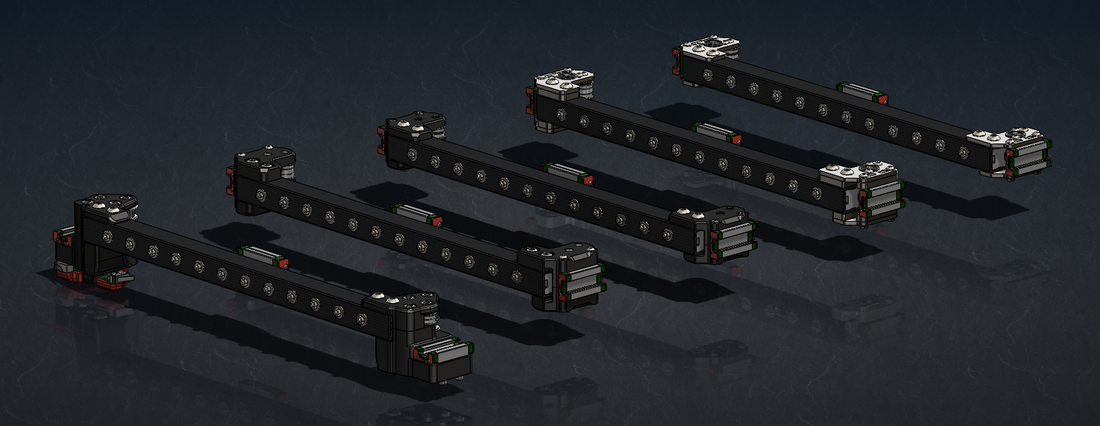

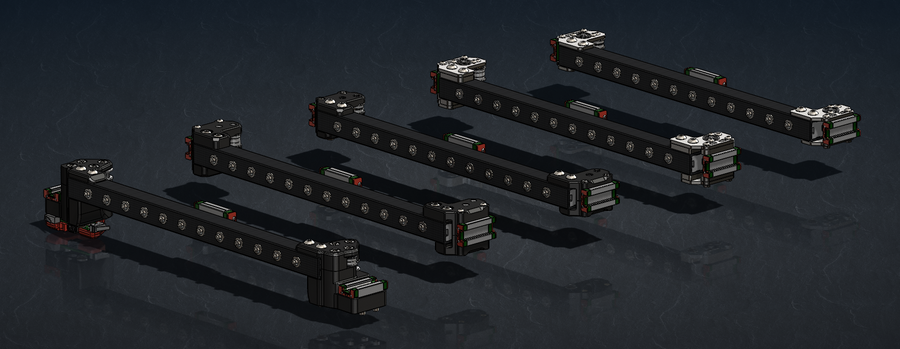

Upgrade your motion system with Carbonara, a high-endurance, high-performance carbon fiber X beam designed to replace your stock aluminum 2020 extrusion. Precision-engineered for Voron and Monolith 3D printers, Carbonara delivers enhanced stiffness and reduced weight—resulting in faster, more accurate prints.
Compatible with stock build sizes: 250, 300, and 350.
Built for strength. Designed for speed. Ready for serious printing.
Preorder information: Expected to ship by End of July Backed by our Preorder price Guarantee
Key features:
- High torsion resistance
- Made with high-temperature resin. 110°C short-term temperature resistance, good for 90°C chamber.
- Ultra light, up to 58% weight reduction from a standard 2020 aluminum extrusion (before hardware and inserts).
- Smooth 3K carbon strand finish
- Pre-drilled, easy installation
- Unbeatable price/performance
Tested for 800 hours at VERY high speeds, 500-1300mm/s @ 50.000-100.000m/s² with 80ºc chamber.

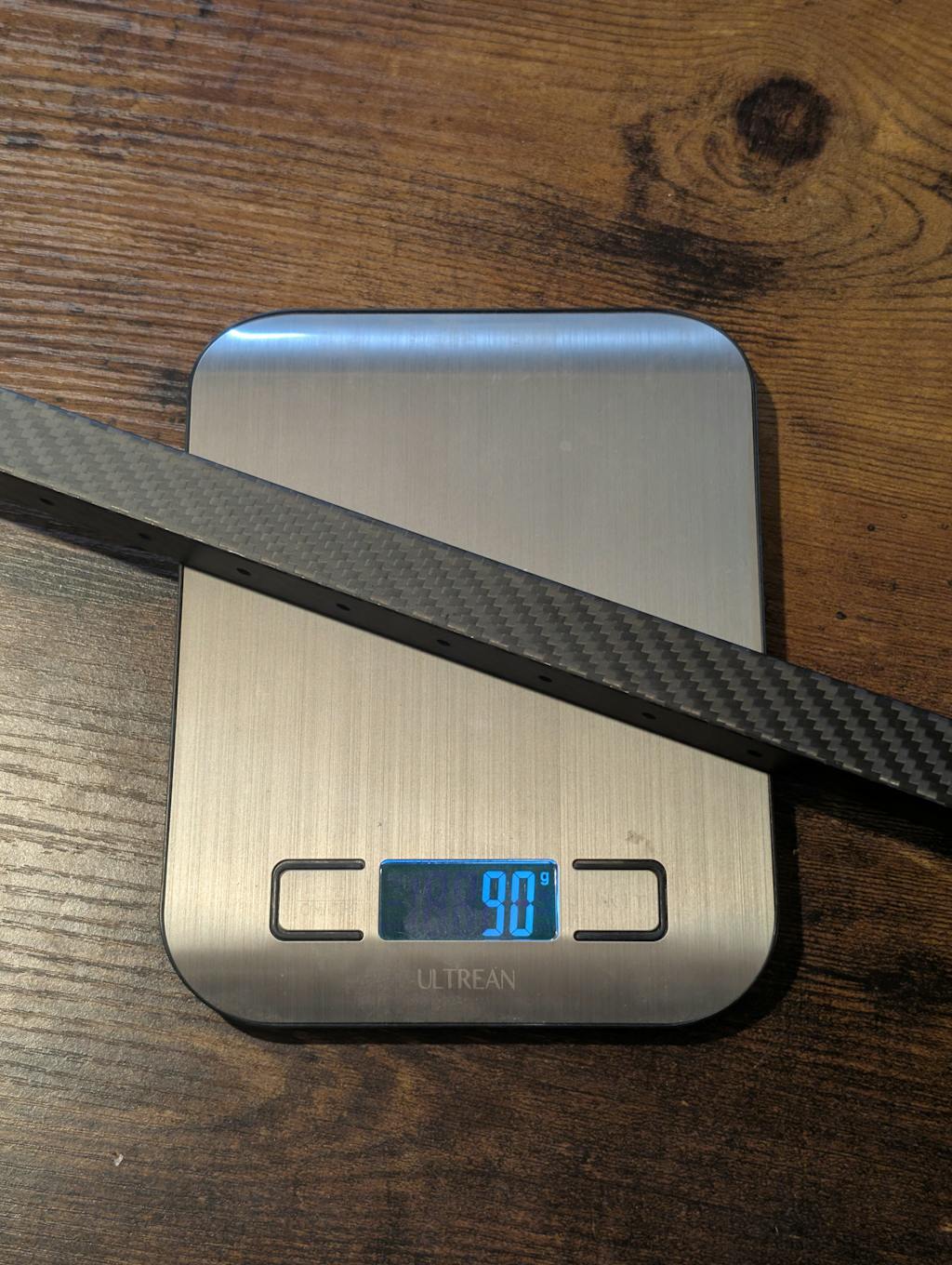

| Printer Build Size (mm) | X Gantry Length (mm) | Carbonara Weight (g) | 2020 extrusion Weight (g) | Weight Reduction |
| 250 | 330 | 64,7 | 157,1 | 58,8% |
| 300 | 380 | 74,5 | 181,0 | |
| 350 | 430 | 84,3 | 204,8 |
IMPORTANT!

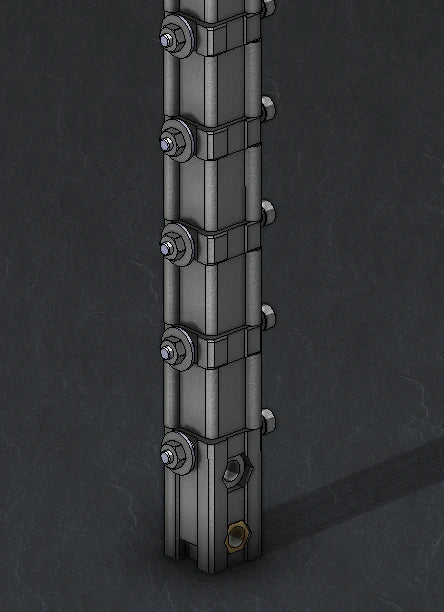

The printed inserts are a MUST to ensure maximum performance.
Please make sure they are all aligned and facing the same direction.
Hollow spacers aren't mandatory, they are only used to facilitate installation.

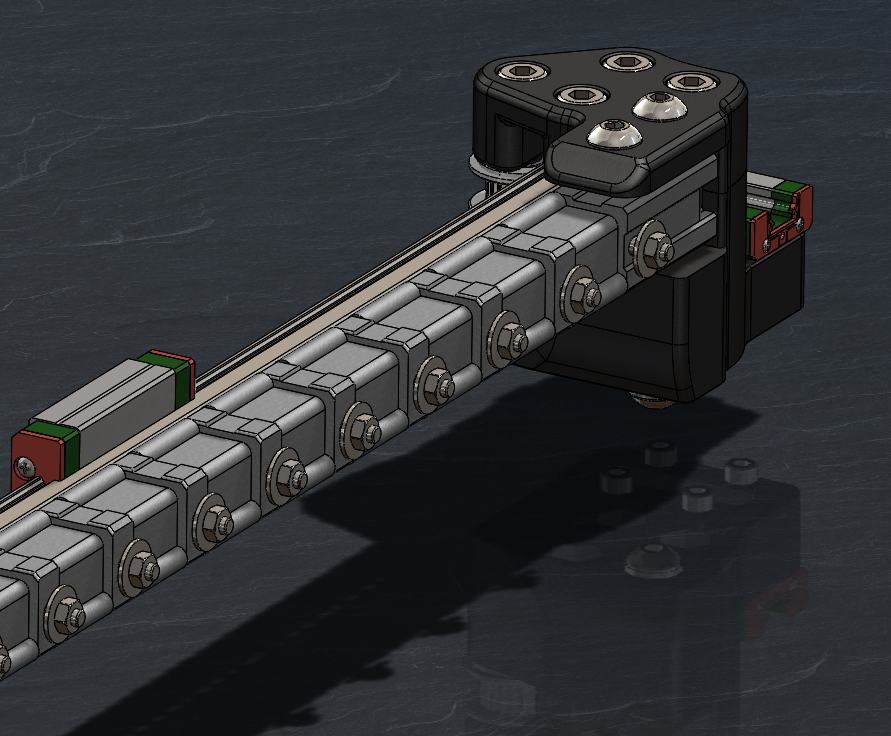

The indented part of the printed inserts is meant to face the linear rail.
More info
- BOM for the inserts and tube
- Actual tube size:
- 20x20x330mm for 250 printers
- 20x20x380mm for 300 printers
- 20x20x430mm for 350 printers
This project has been made in collaboration with the Monolith team Special thanks to:
If you wish to support Brazuka, Ko-Fi
Backed by our 45-day no questions asked return policy.
