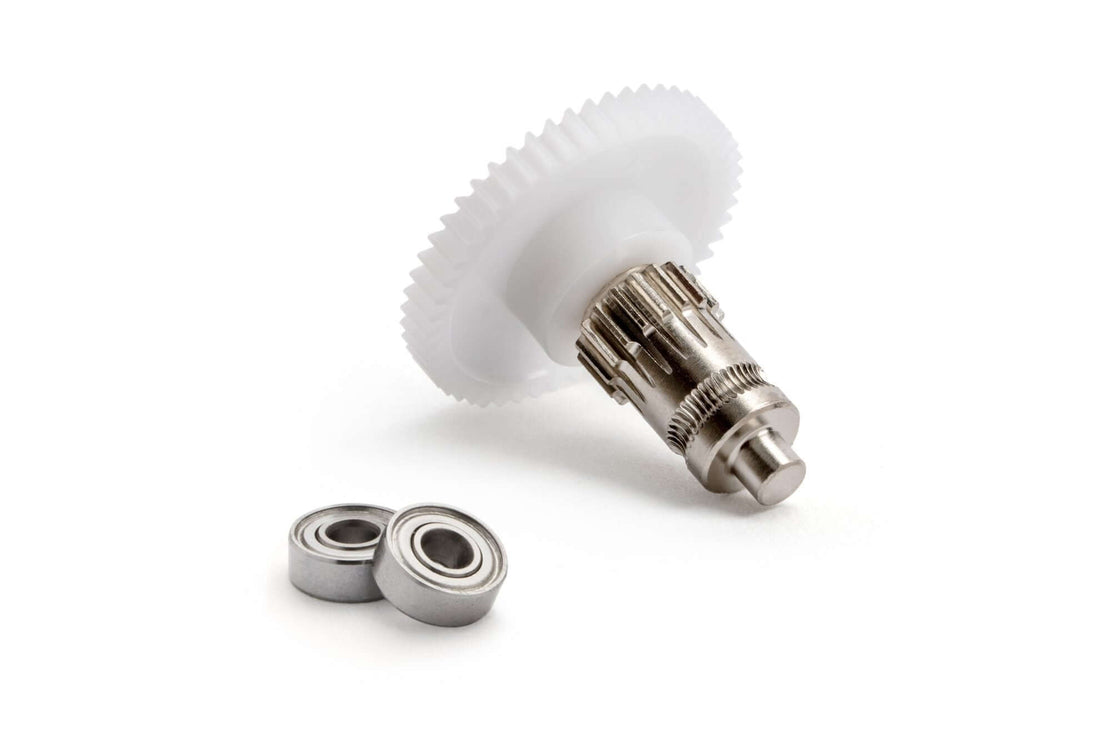

Bondtech BMG Integrated Drive Gear Assembly (IDGA)
This Integrated Drive Gear Assembly Set is compatible with:
- All Bondtech BMG series extruders;
- All Bondtech upgrade kits for Prusa i3;
- All Bondtech upgrade kits for Prusa Mini;
- All Bondtech DDX Direct Drive eXtruders for Creality;
- BMG-HT for Funmat HT;
- Other BMG type extruders using the original Bondtech main shaft assembly and primary drive gears…
- … for instance the Voron ClockWork 1,CW1.
It must be used with 3x8x3.0 mm ball bearings (INCLUDED).
This IDGA, Integrated Drive Gear Assembly, replaces the following mini drive train items:
- Main shaft;
- Main gear;
- Set screw;
- Primary drive gear.
Secondary drive gear, secondary shaft and secondary needle bearings ARE NOT SUPPLIED.
Technical Specification
- Shaft length: 27.6 +/-0.08mm
- Shaft length to support ball bearings : < 3.3mm - 3.3mm >
- Filament teeth’s center to end of shaft : < 21.84mm - 6.30mm >
- Number of drive gear teeth : 17
- Drive gear teeth length : 4mm
- Integrated drive gear Material: Hardened Steel
Materials Compatibility:- Flexible : yes;
- Rigid : yes;
- Abrasive : yes.
- Number of main gear teeth : 50
- Main gear teeth length : 3mm
