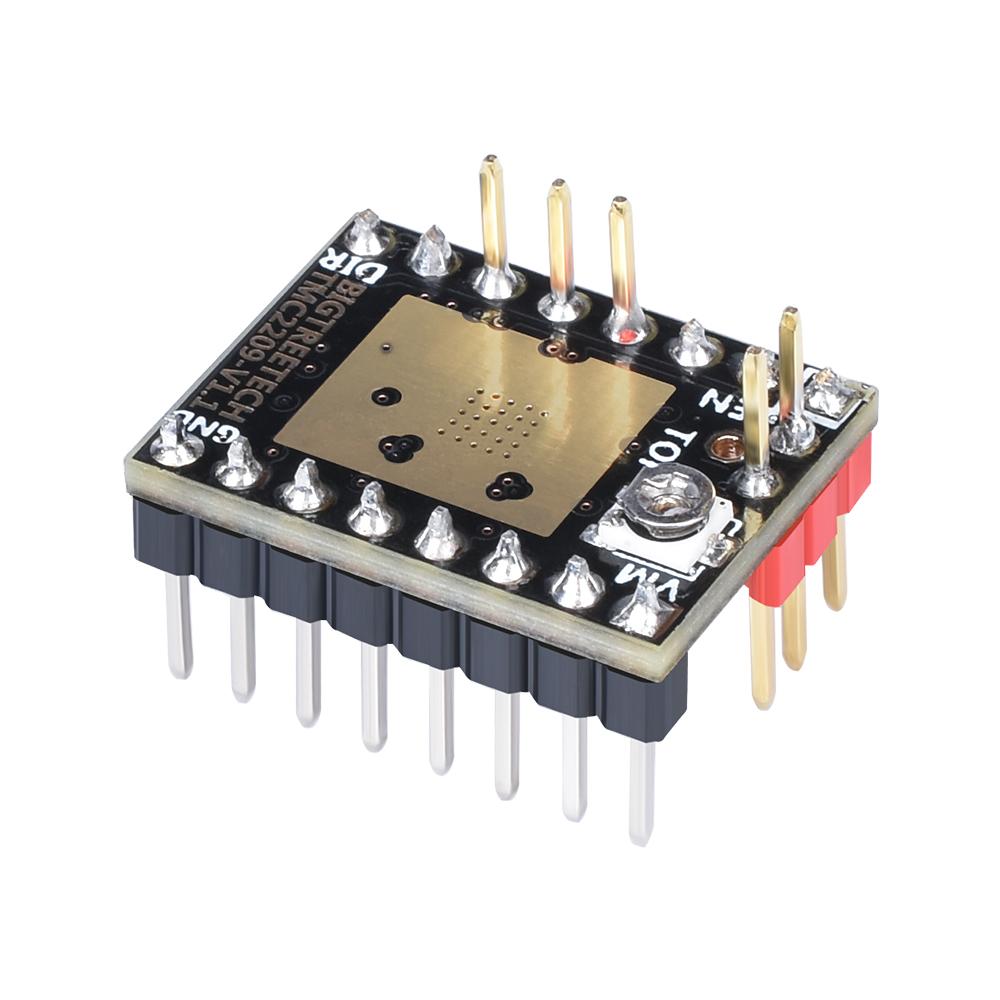

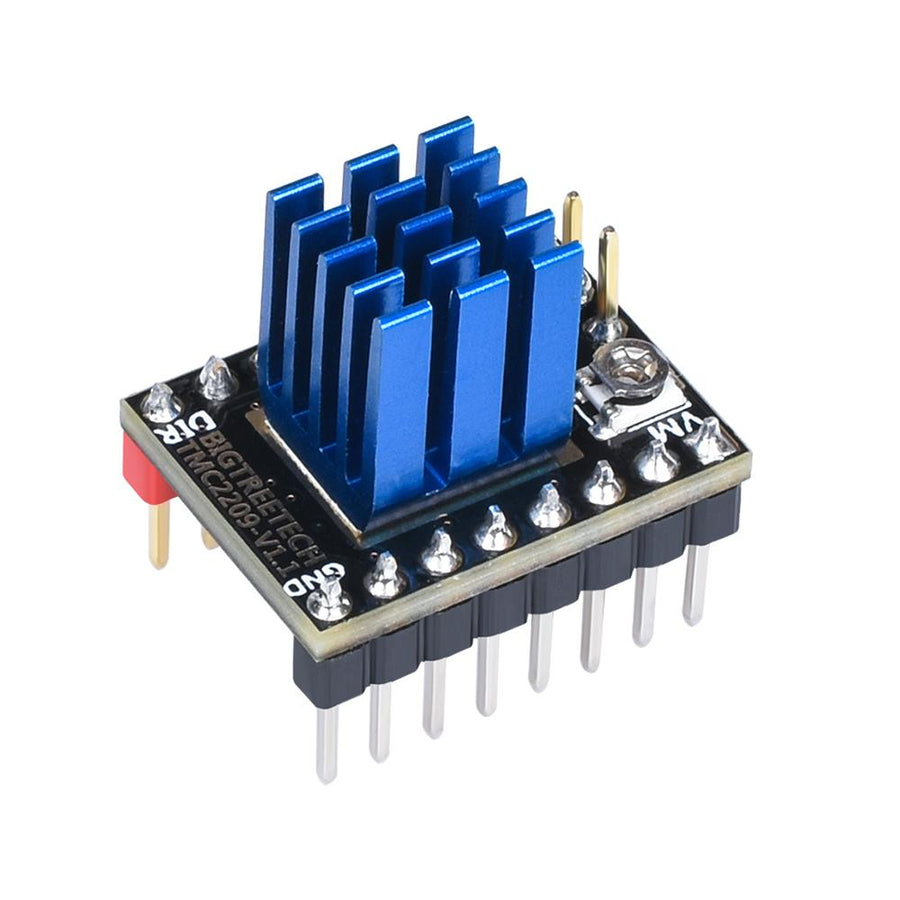

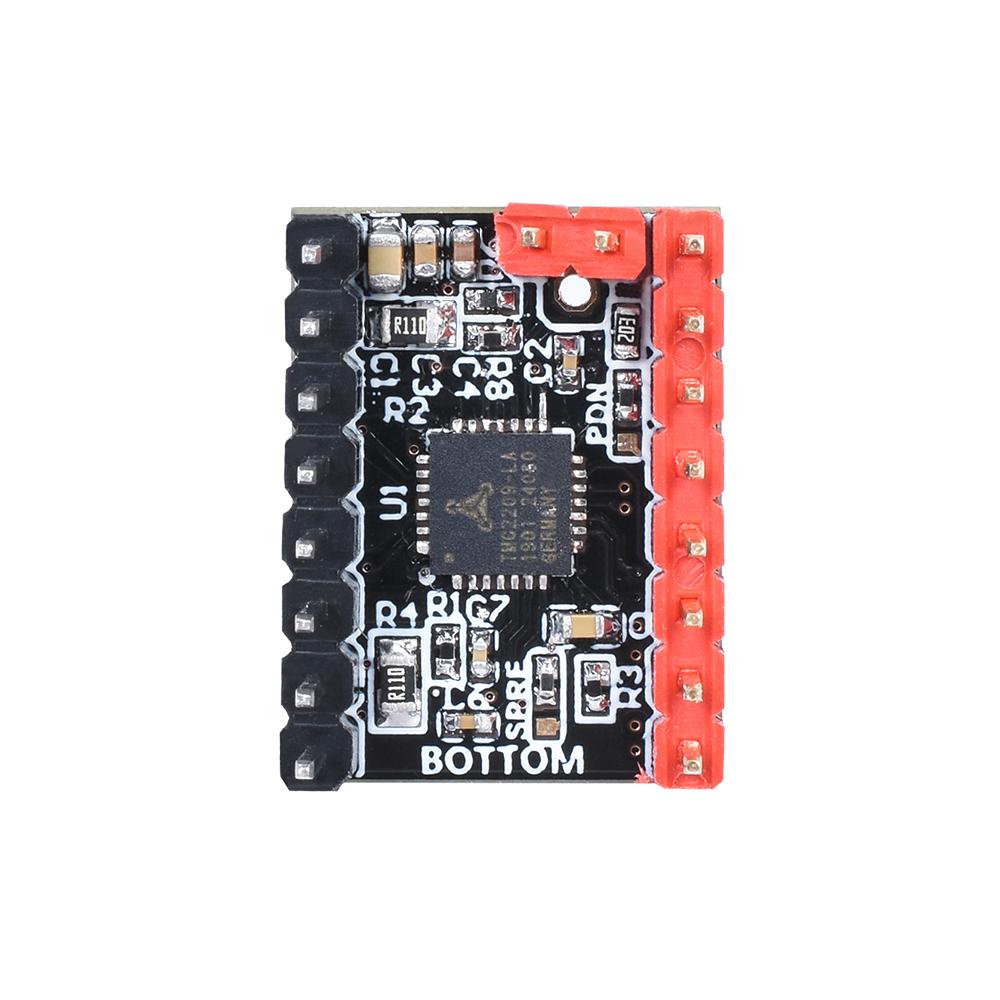

TMC2209 UART Stepper Motor Driver


  • Product Name:TMC2209 V1.2
  • Item Type: Stepper Motor Driver
  • Current:2.0
  • Motor voltage:5.5...28V
  • Logic voltage:3.3...5V
  • Coil current: 2.8A Peak

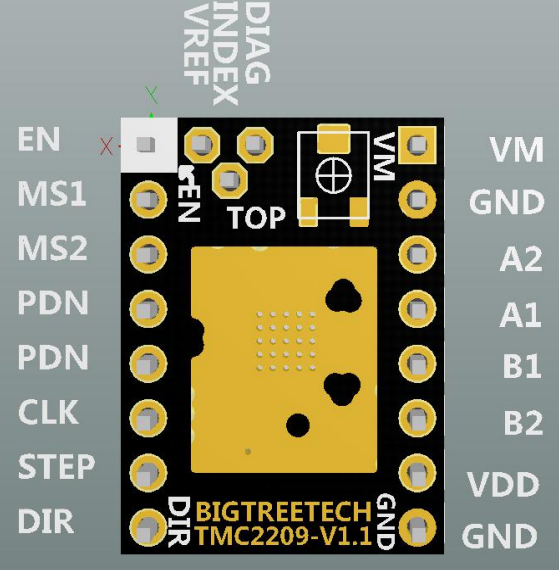

  • Interface: Step/DIR /UART
  • Extra function: CoolStep and stallGuard

The Flexible microPlyer interpolation unit can provide 256 micro steps.

Stallguard4™ locked-motor test can provide an abnormal signal when the motor rotates abnormally.

CoolStep™ current dynamic control can save 75% energy
