Style 5160 T pro HV (8-56v)

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Bigtreetech TMC 5160T PRO High Voltage driver

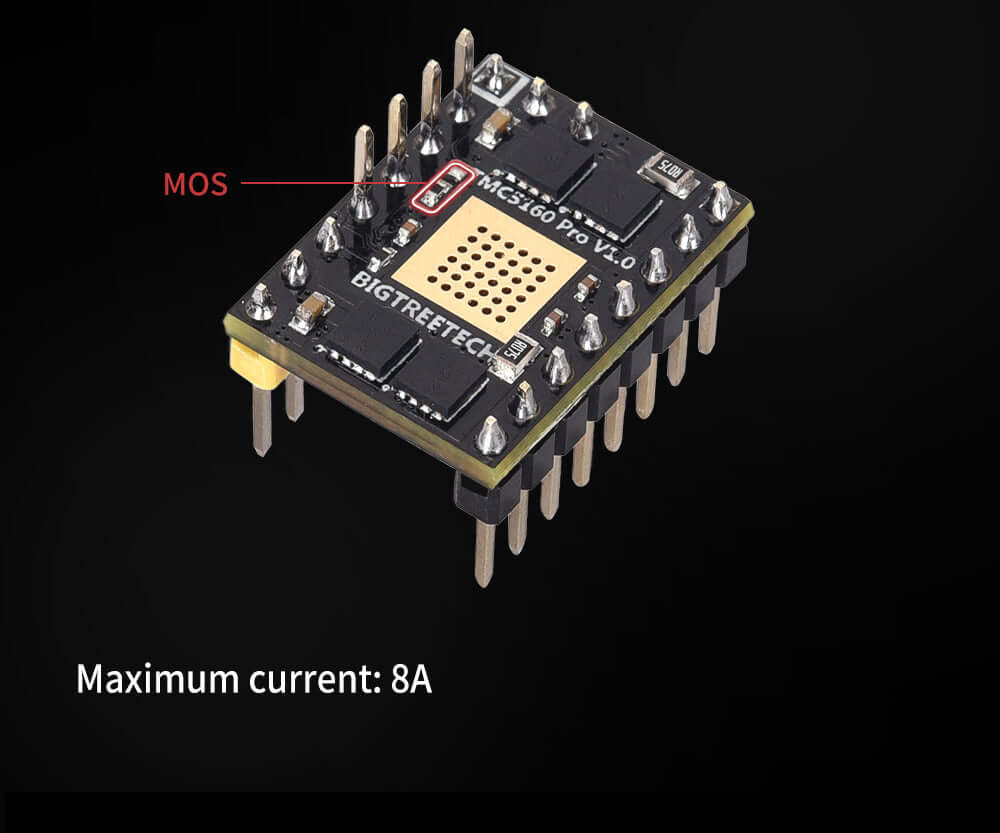

BIGTREETECH TMC5160T Pro is a high-performance stepper motor control chip that operates via an externally enhanced power MOSET has it, the maximum current can reach 20 A, low heat development during operation.

Note: Available in HV 8-56V and Non HV 8-35V

Specs:

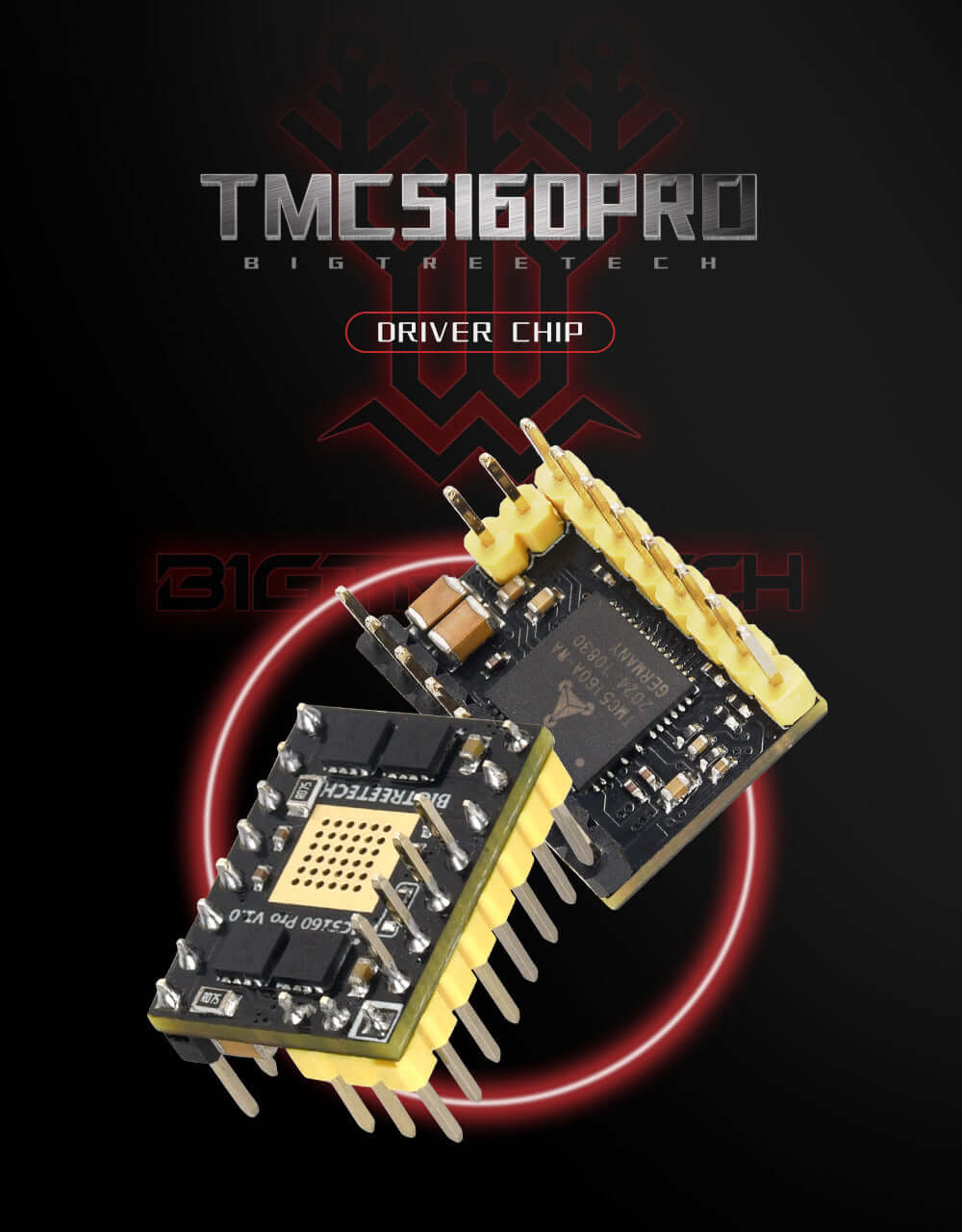

  • Driver chip: BIGTREETECH TMC5160T Pro Adopts TMC5160T-TA chip, BIGTREETECH TMC5160T Pro V1.0 stepper motor driver is a high-performance stepper motor control chip with size 15.3 mm * 20.4 mm.
  • Powerful Yet Low-heat: TMC5160T Pro V1.0 SPI stepper driver operates via an externally enhanced power MOSET has it, the maximum current can reach 20 A, low heat development during operation. The Maximum subdivision is 256. Supports SPI mode, & SD mode.
  • Optimized Drive Performance: Based on the unique TRINAMIC functions StallGuard2, coolStep, dcStep, SpreadCycle and StealthChop, the TMC5160T Pro V1.0 greatly optimizes drive performance, comparing speed and motor torque, optimizing energy efficiency, smoothness and noiselessness.

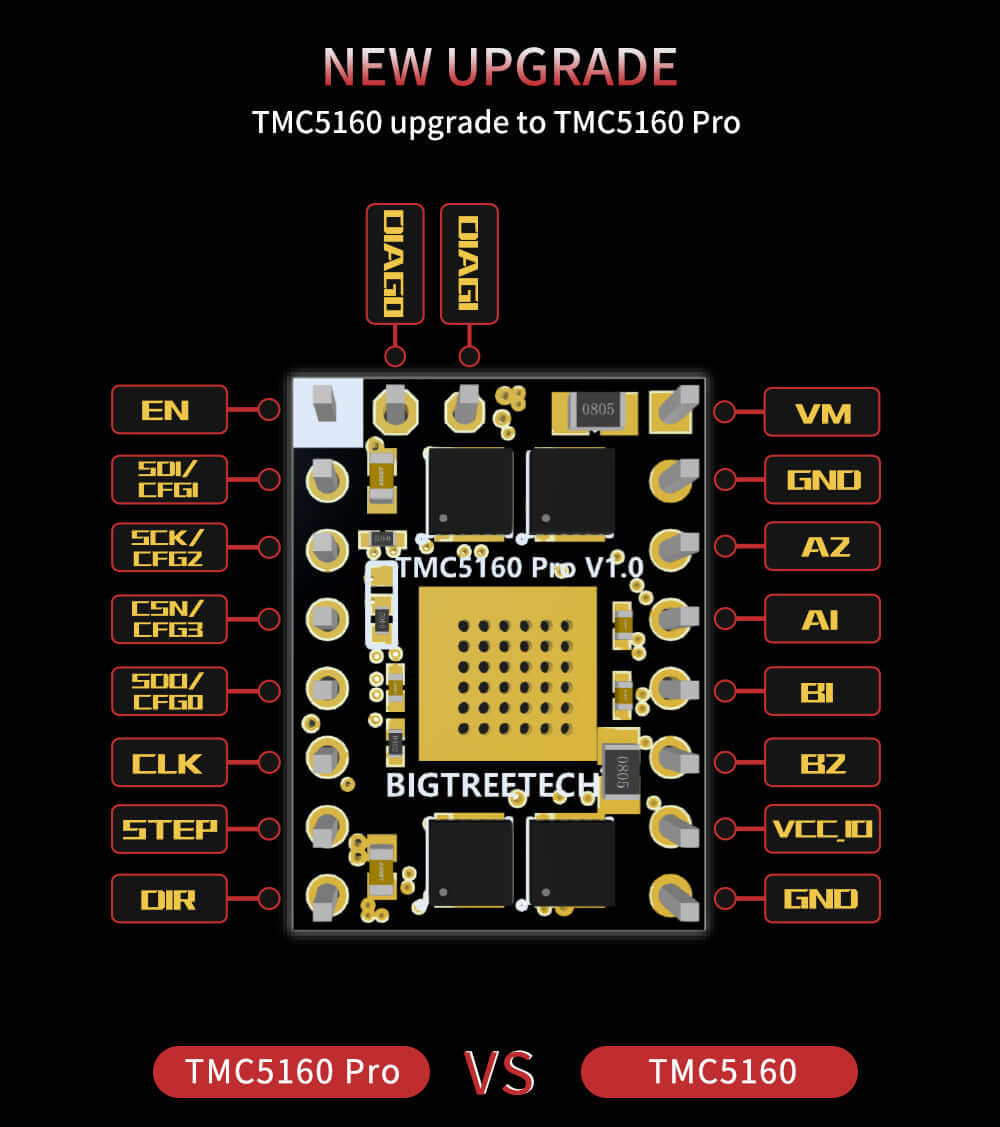

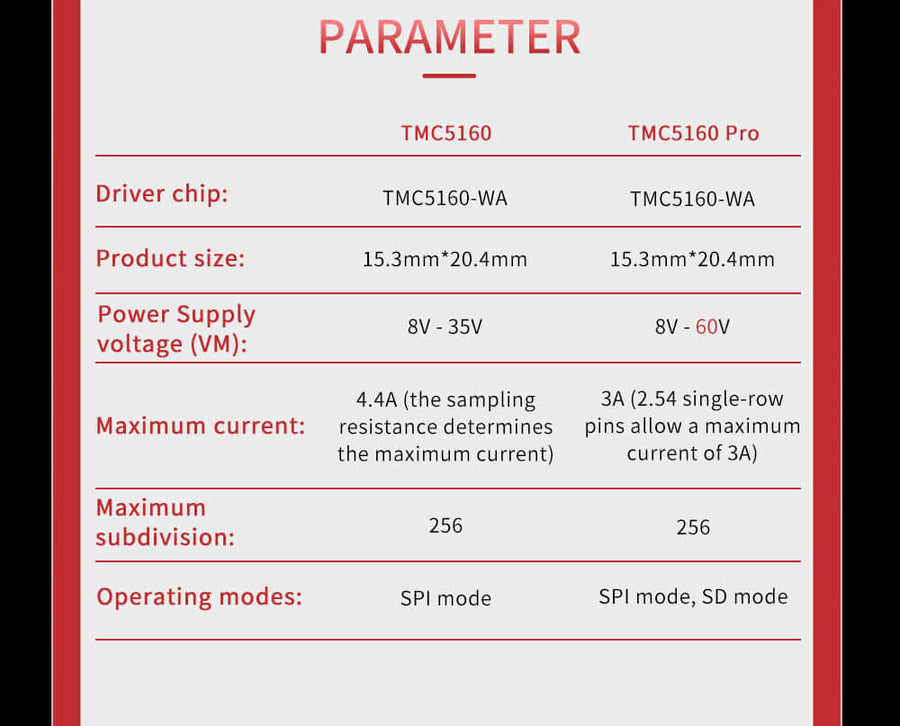

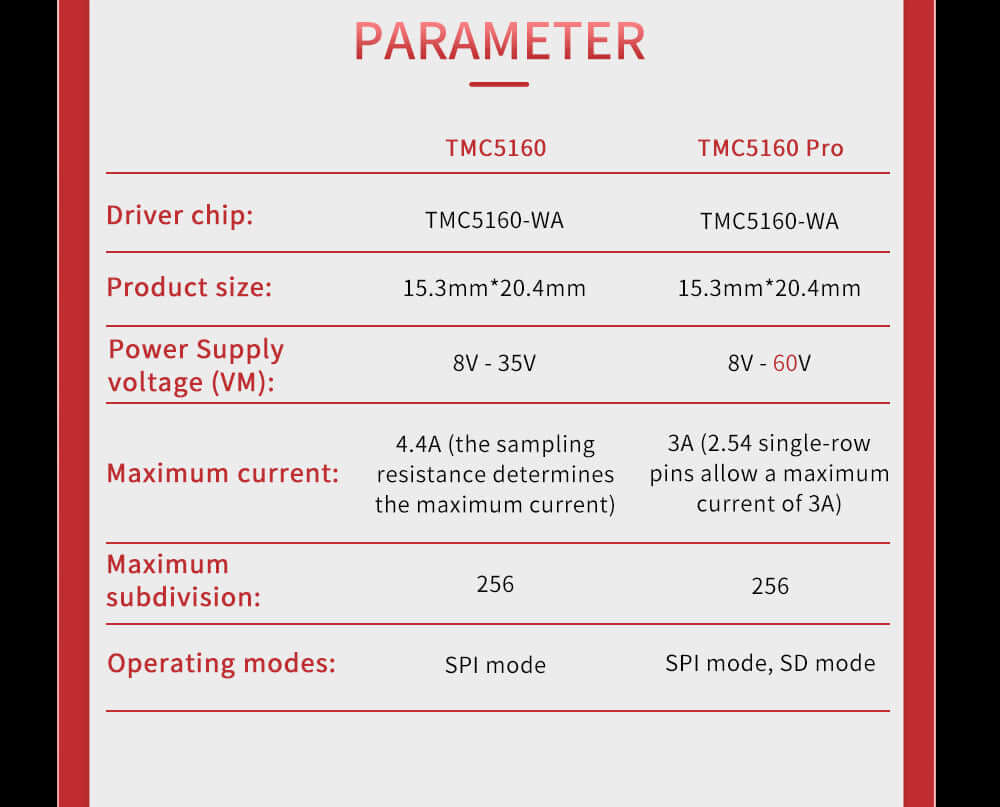

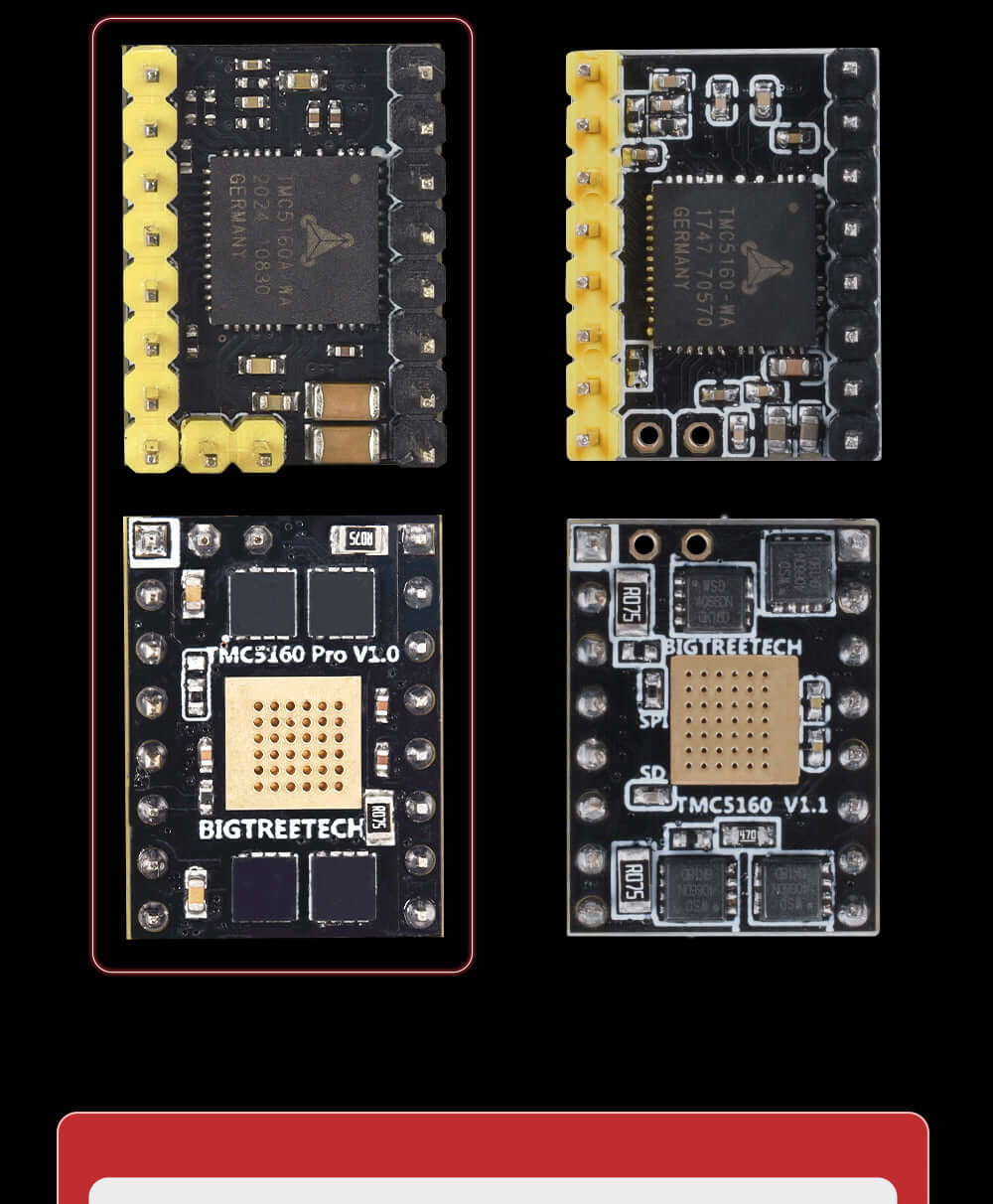

  • Excellent Option: With selectable power supply voltage from 8V to 56V(Recommended no more than 48V for safety issues), TMC5160T Pro V1.0 allows for maximum Current of 3A. Upgraded from TMC2100, TMC2130, & TMC5160 series, TMC5160 Pro V1.0 is an ideal option with higher voltage and motor current.
  • Widely Compatible: BTT TMC5160T Pro stepper driver compatilbe with BIGTREETECH Octopus Pro / SKR V1.4 Turbo/SKR 3/ Manta M4P/Manta M5P/Manta M8P 3D Printer control board, support high speed / voltage printing, suitable for Voron 2.4, VZbot, CoreXY, i3 series 3D Printer.


**While the manufacturer states these are 60v capable, we recommend extreme caution on anything above 48v. use at your own risk**

Backed by our 45-day no questions asked return policy.
