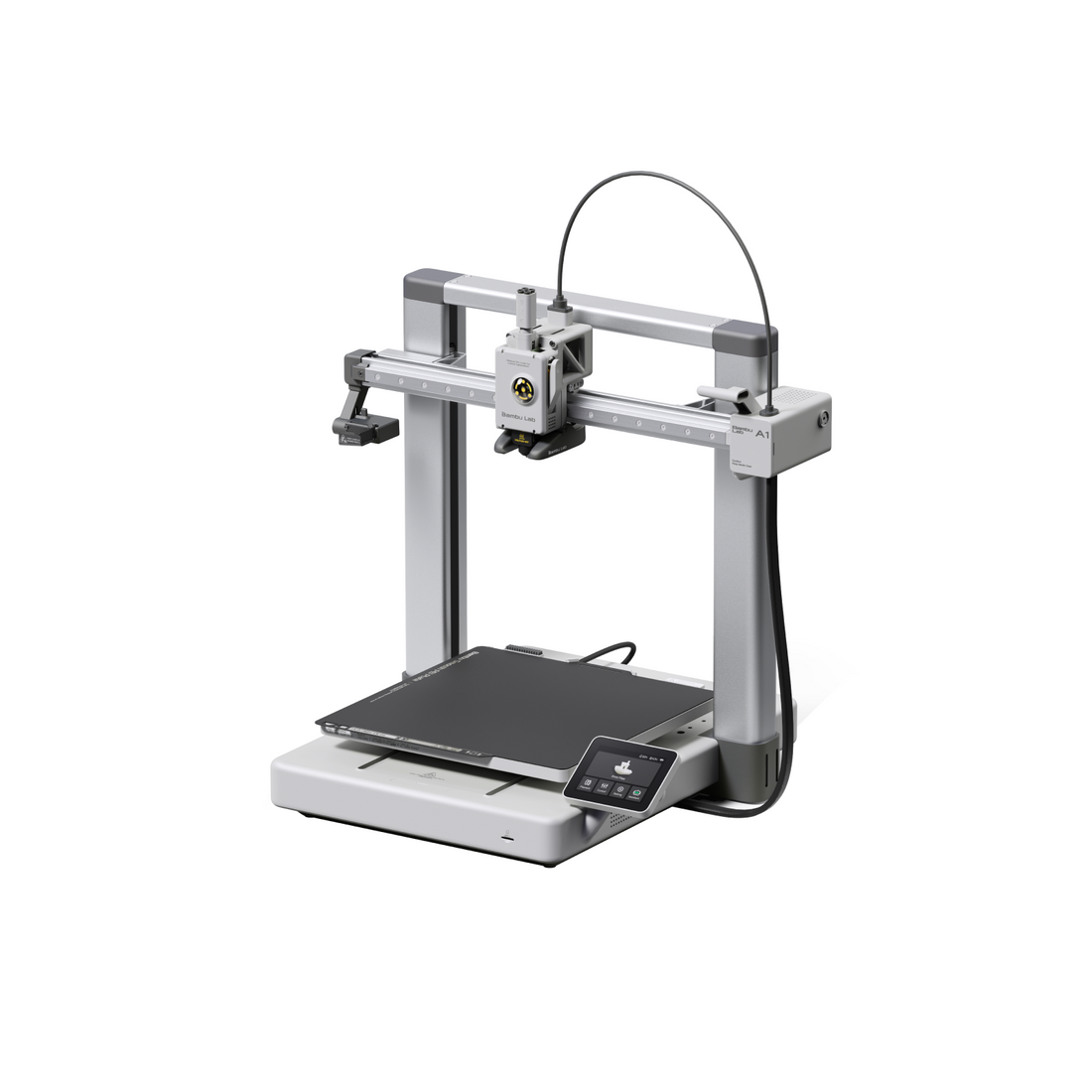

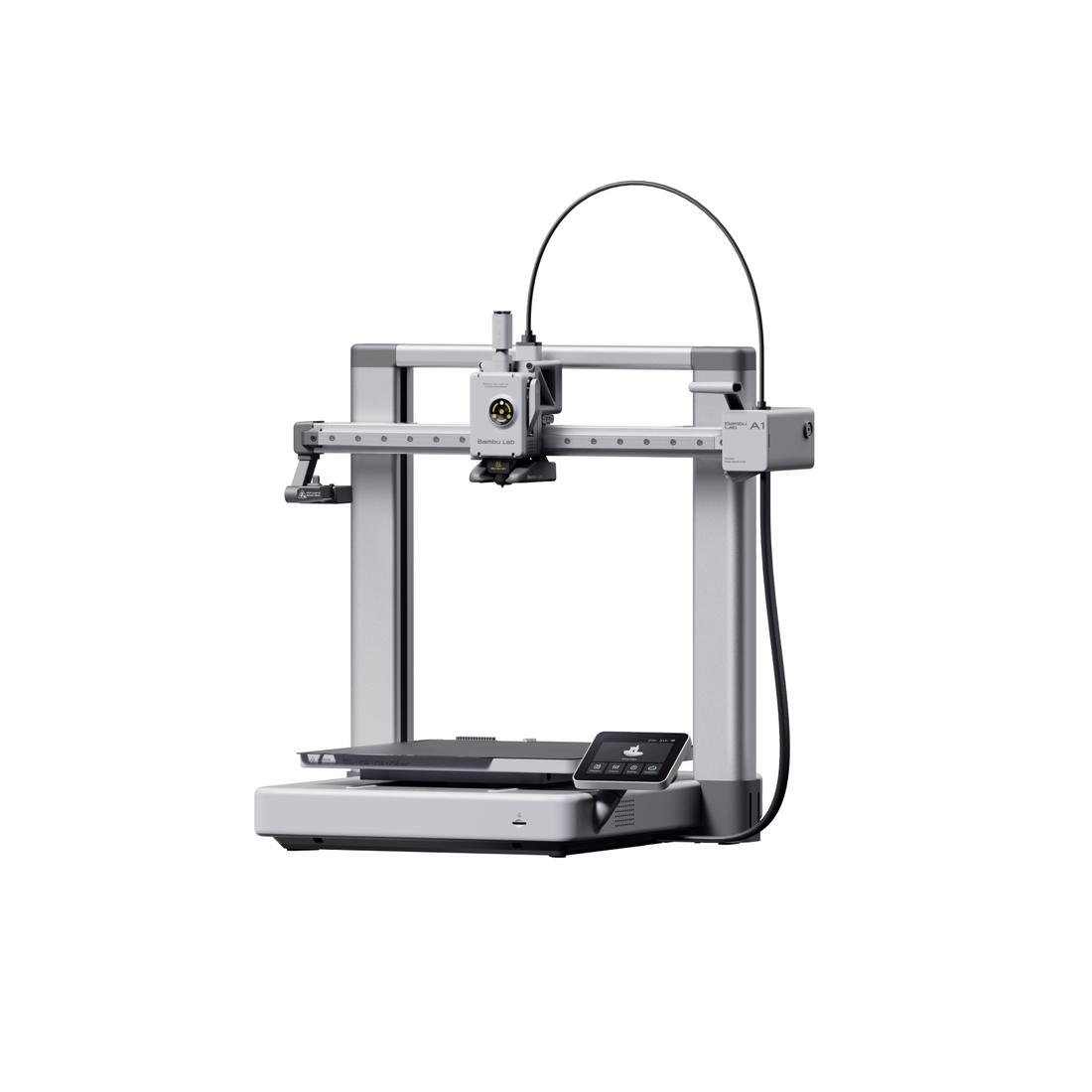

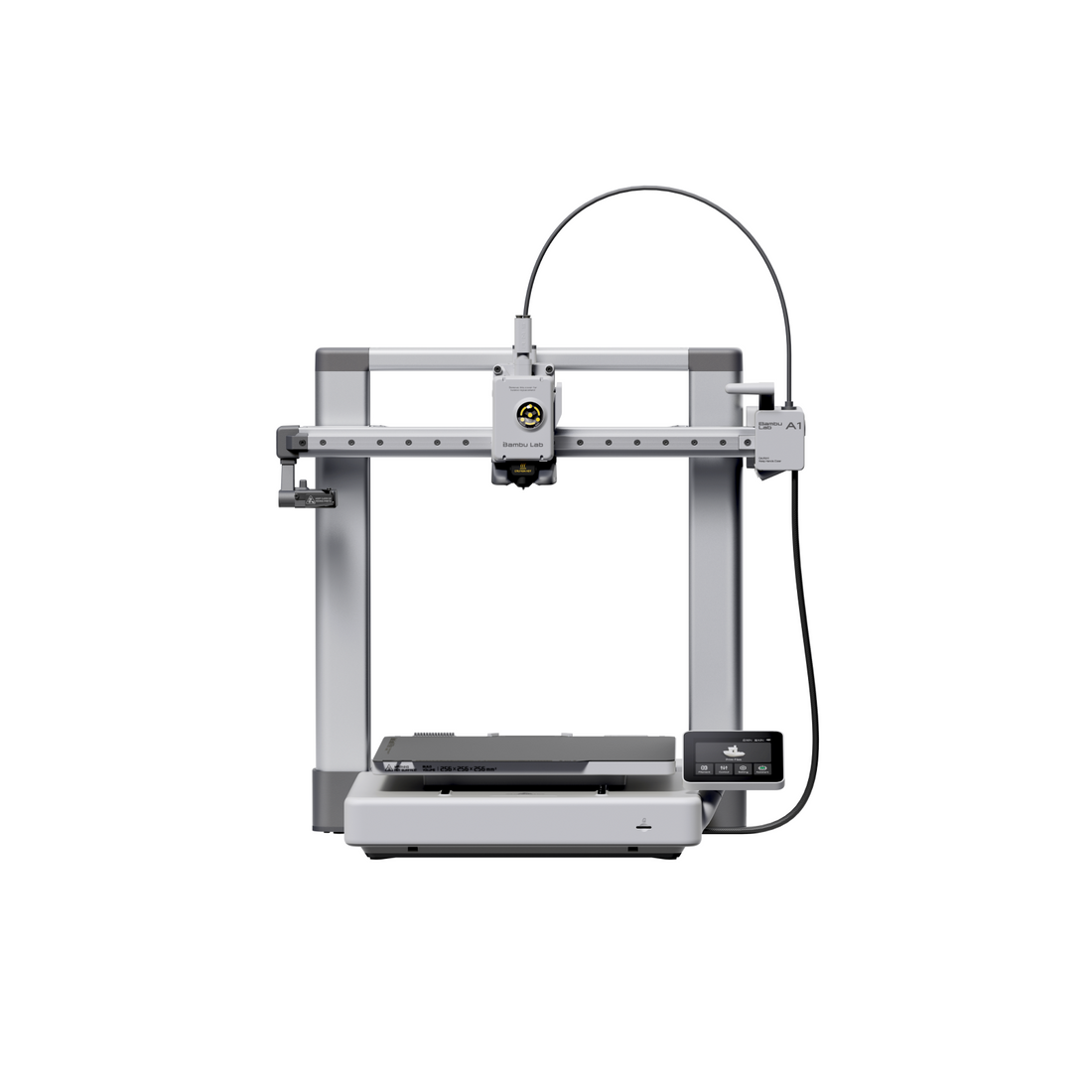

| Item | A1 Specification | |
| Body | Build Volume(W*D*H) | 256*256*256 mm³ |
| Toolhead | Hot End | All-Metal |
| Nozzle | Stainless Steel | |
| Max Hot End Temperature | 300 °C | |
| Nozzle Diameter | 0.4 mm (Included) 0.2 mm, 0.6 mm, 0.8 mm |
|
| Heatbed | Build Plate | Bambu Textured PEI Plate (Included) Bambu Smooth PEI Plate Bambu Dual-Texture PEI Plate Bambu High Temperature Plate (Smooth PEI) Bambu Cool Plate |
| Max Build Plate Temperature | 100°C | |
| Speed | Max Speed of Tool Head | 500mm/s |
| Max Acceleration of Tool Head | 10000mm/s² | |
| Supported Filament | PLA, PETG, TPU, PVA | Ideal |
| ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced Polymer |
Not Recommended | |
| Sensors | Chamber Monitoring Camera | Low Frame Rate Camera (Up to 1080P) Timelapse Supported |
| Filament Run Out Sensor | Yes | |
| Filament Odometry | Yes | |
| Power Loss Recover | Yes | |
| Filament Tangle Sensor | Yes | |
| Physical Dimensions | A1 : 385*410*430 mm³ , Package size : 596*536*325 mm³ , Net weight 8.3 kg , Gross weight 13 kg A1 Combo : Package size 560*540*430 mm³ , Gross weight (AMS lite included) 13.5 kg |
|
1,Do you have an official unboxing guide?
A: Yes, please refer to this wiki link for the unboxing video guide
2. What is the maximum print size of the A1?
A: 256 * 256 *256 mm³. For more details, please check here.
3. What Filaments can A1 Print?
A: 1. Low-temperature filaments such as PLA, PETG, TPU, and support materials for PLA and PETG (Support for PLA, PVA, HIPS, etc.).
2. Conventional high-temperature filaments such as ABS, ASA, PC, PA, PA-CF/GF, PET-CF/GF, PPA-CF/GF, etc.
Kind Reminder:
The standard nozzle is made of stainless steel. When printing filaments containing hard particles (CF, GF, etc.) such as PLA-CF/GF, PLA Glow-in-the-dark, PETG-CF/GF and PAHT-CF/GF, it is necessary to replace the nozzle with hardened steel to prevent excessive wear.
Due to the A1's open-frame design and lower chamber temperature, there is a risk of reduced interlayer strength and increased warping for large-sized models and models with high filling density when using conventional high-temperature filaments such as ABS, ASA, PC, PA, PA-CF/GF, PET-CF/GF, PPA-CF/GF, etc. on the A1. However, these high-temperature filaments can be used on the A1 to print small-sized models with low filling density. The printing results may vary depending on the filaments' dry and wet state, the characteristics of the model itself, printing parameters, and the ambient temperature. For more details, please check here.
4. Is it OK to enclose the A1?
A: We don't recommend enclosing the A1. For more details, please check here.
5. Can you use multiple AMS lite units with the A1 for up to 16 color prints?
A: The A1 can only support one AMS lite, which means it can print with a maximum of 4 colors. For more details, please check here.
6. Can I use the AMS on the A1?
A: Yes. To connect the printer to the AMS, an AMS HUB (SA013) accessory is needed. The AMS hub accessory is specifically designed for A1-series 3D printers, serving as a standardized hub for seamless connectivity and integrated functionality between the AMS, AMS 2 Pro, and AMS HT.

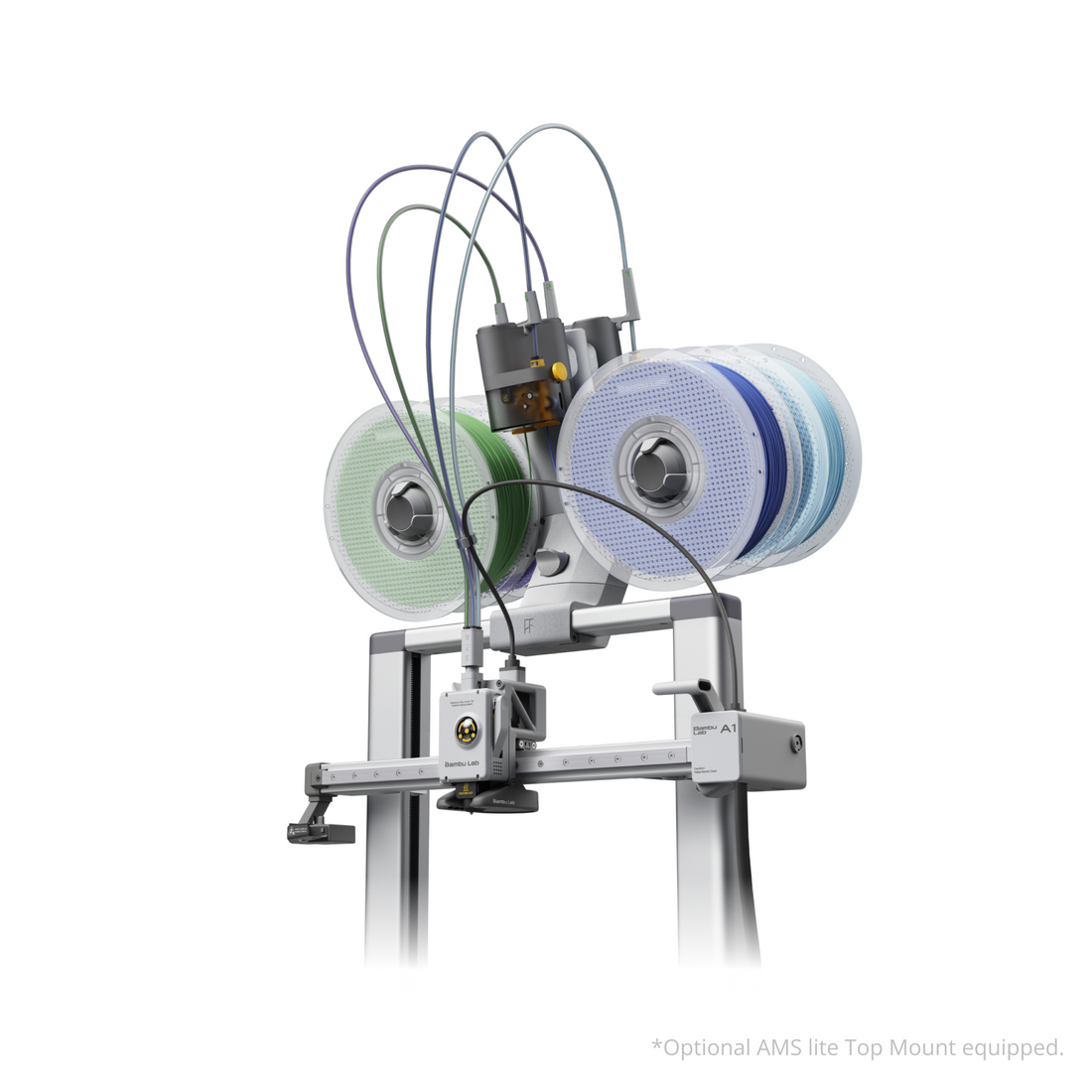

7. Can AMS lite be mounted on the beam of the A1 to reduce space occupation? If so,how should I proceed with the operation?
A: Please visit our MakerWorld model website, where you will be able to find the model supports, installation tutorial, and purchase links for accessory screws. Additionally, you can also refer to our wiki page for more related information.
For more details, please check here.
8. If I install AMS lite on the beam, will the filament spool slide down, or will it affect the accuracy of vibration compensation?
A: As long as the AMS lite is correctly installed, the filament spool should not slide down, even if the previous two spools have a certain forward tilt angle. Additionally, to avoid affecting the accuracy of vibration compensation, you can add reinforcement to the column. For more details, please check here.
