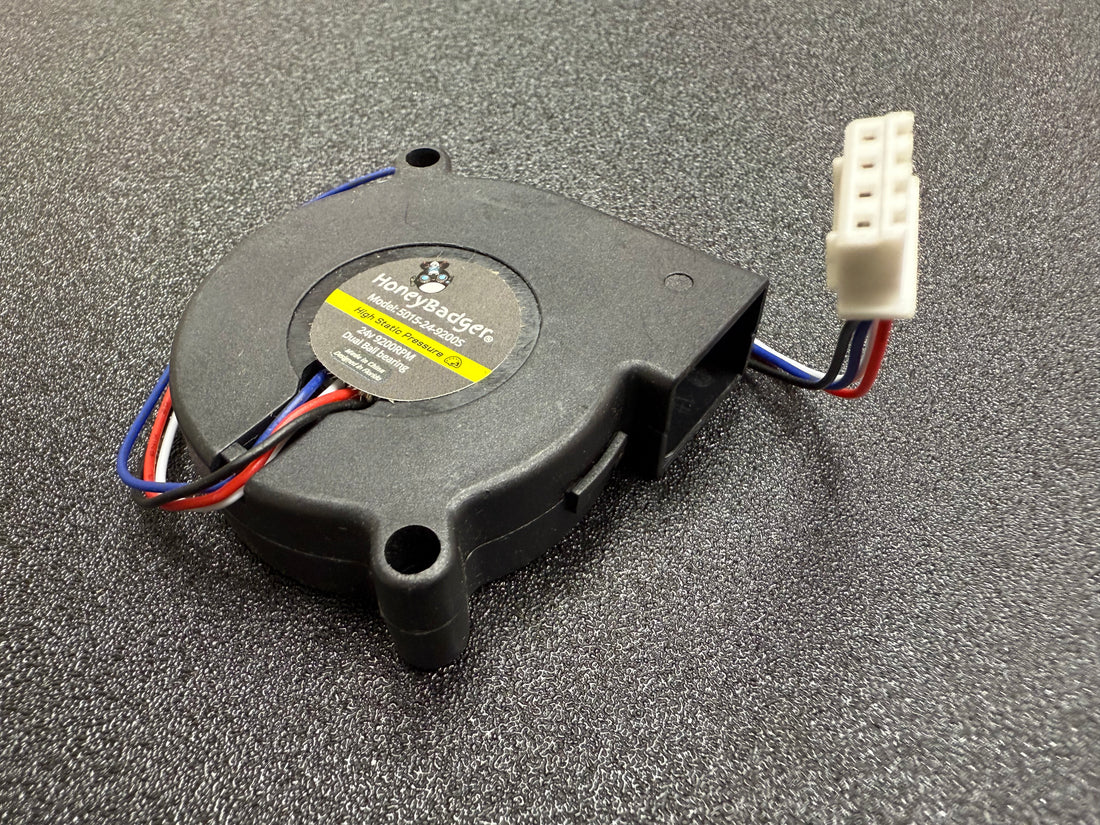

HoneyBadger Performance Series 5015 Blower Fans | 2–4 Wire, PWM & Tach Options

After extensive testing and multiple sample iterations, we’re proud to release our HoneyBadger P-Series fans. This 5015 blower fan is built around a durable, high-quality motor designed to withstand demanding 3D printing environments. With Class A insulation rated up to 95 °C, it’s engineered to handle the heat—making it a reliable choice even inside fully enclosed printer.

Available Versions & Specifications

2-Wire — 6400 RPM (Standard PWM)

• Construction: Dual ball bearing

• Operating Voltage: 12–26.5 V DC (Rated 24 V)

• Input Power: 1.68 W ± 15%

• Speed: 6400 RPM ± 10%

• Max Airflow: 4.15 CFM

• Max Air Pressure: 29.18 mmH₂O

• Insulation: Class A (95 °C)

3-Wire — 7200 RPM (PWM Control)

Runs 100% or off unless connected to a true 3-pin PWM header

• Construction: Dual ball bearing

• Operating Voltage: 12–26.5 V DC (Rated 24 V)

• Input Power: 2.64 W ± 15%

• Speed: 7300 RPM ± 10%

• Max Airflow: 5.41 CFM

• Max Air Pressure: 36.45 mmH₂O

• Noise: 43.2 dB

• Insulation: Class A (95 °C)

• Wiring: Red = Positive, Black = Negative, Blue = PWM

4-Wire — 9200 RPM (PWM + Tach)

• Construction: Dual ball bearing

• Operating Voltage: 12–26.5 V DC (Rated 24 V, draws 0.19 A)

• Speed: 9200 RPM ± 10%

• Max Airflow: 5.68 CFM

• Max Air Pressure: 57.4 mmH₂O

• Noise: 48 dB

• Insulation: Class A (95 °C)

• Wiring: Red = Positive, Black = Negative, Blue = PWM, White = Tach

4-Wire Wide-Mouth — 9200 RPM (PWM + Tach)

Same specifications as the standard 4-wire version, with a wide-mouth outlet for increased airflow focus.

• Construction: Dual ball bearing

• Operating Voltage: 12–26.5 V DC (Rated 24 V, draws 0.19 A)

• Speed: 9200 RPM ± 10%

• Max Airflow: 7.1 CFM ± 10%

• Max Air Pressure: 57.4 mmH₂O

• Noise: 48 dB

• Insulation: Class A (95 °C)

• Wiring: Red = Positive, Black = Negative, Blue = PWM, White = Tach
