H2C Induction Hotend (Right)

The H2C Induction Hotend (Right) is a high-performance 3D printer hotend designed for H2C toolheads that use induction heating, delivering fast heat-up, stable temperatures, and consistent extrusion—especially at higher print speeds. The Right version is shaped and oriented specifically for the right-side mounting position in the H2C toolhead system, ensuring proper alignment with the carriage, ducting, and wiring path.

Multi-Material Printing with Less Waste

The Vortek System uses up to six interchangeable induction-heated hotends to achieve true multi-material printing with significantly reduced purge waste compared to single-nozzle systems. The hotend swap mechanism eliminates purge flushing during filament changes (H2C under 7 filaments), saving both material and time.

Real High-Flow, Real Time Saved

	H2C Max Volumetric Speed
Induction Stainless Steel Nozzle (0.2mm)	2 mm³/s
Induction Hardened Steel Nozzle (0.4mm)	25 mm³/s
Induction Hardened Steel Nozzle (0.6mm)	30 mm³/s
Induction Hardened Steel Nozzle (0.8mm)	30 mm³/s
High Flow Induction Hardened Steel Nozzle (0.4mm)	40 mm³/s
High Flow Induction Hardened Steel Nozzle (0.6mm)	40 mm³/s
High Flow Induction Hardened Steel Nozzle (0.8mm)	40 mm³/s

*Tested with Bambu PLA Basic.

Filament Compatibility

Filament	Induction 0.2 mm Stainless Steel	Induction 0.4 mm Hardened Steel	Induction 0.6 mm Hardened Steel	Induction 0.8 mm Hardened Steel	Induction 0.4 mm High Flow Hardened Steel	Induction 0.6 mm High Flow Hardened Steel	Induction 0.8 mm High Flow Hardened Steel
PLA Basic	√	√	√	√	√	√	√
PLA Matte	√	√	√	√	√	√	√
PLA Lite	√	√	√	√	√	√	√
PLA Basic Gradient	√	√	√	√	√	√	√
PLA Silk+	√	√	Not recommended	Not recommended	√	Not recommended	Not recommended
PLA Silk Dual Color	√	√	Not recommended	Not recommended	√	Not recommended	Not recommended
PLA Silk	√	√	Not recommended	Not recommended	√	Not recommended	Not recommended
PLA Metal	√	√	√	√	√	√	√
PLA Marble	X	√	√	√	√	√	√
PLA Sparkle	X	√	√	√	√	√	√
PLA Wood	X	√	√	√	√	√	√
PLA Galaxy	Not recommended	√	√	√	√	√	√
PLA Glow	X	√	√	√	√	√	√
PLA Translucent	Not recommended	√	√	√	√	√	√
PLA tough+	√	√	√	√	√	√	√
PLA-CF	X	√	√	√	Not recommended	√	√
PLA Aero	X	√	Not recommended	Not recommended	√	Not recommended	Not recommended
PETG HF	√	√	√	√	√	√	√
PETG Basic	√	√	√	√	√	√	√
PETG Translucent	Not recommended	√	√	√	√	√	√
PETG-CF	X	√	√	√	Not recommended	√	√
ABS	√	√	√	√	√	√	√
ABS-GF	X	√	√	√	√	√	√
ASA	√	√	√	√	√	√	√
ASA Aero	X	√	Not recommended	Not recommended	√	Not recommended	Not recommended
ASA-CF	X	√	√	√	Not recommended	√	√
PC	√	√	√	√	√	√	√
PC FR	√	√	√	√	√	√	√
TPU for AMS	X	√	√	√	√	√	√
TPU 95A HF	X	√	√	√	√	√	√
TPU 85A	X	X	X	X	X	X	X
TPU 90A	X	√	√	√	Not recommended	Not recommended	Not recommended
PAHT-CF	X	√	√	√	Not recommended	√	√
PET-CF	X	√	√	√	Not recommended	√	√
PA6-CF	X	√	√	√	Not recommended	√	√
PA6-GF	X	√	√	√	Not recommended	√	√
PPA-CF	X	√	√	√	Not recommended	√	√
PPS-CF	X	√	√	√	Not recommended	√	√
Support for ABS	X	√	√	√	√	√	√
Support for PLA/PETG	√	√	√	√	√	√	√
Support for PA/PET	X	√	√	√	√	√	√
Support for PLA (New Version)	√	√	√	√	√	√	√
PVA	X	√	√	√	√	√	√

Learn more about filament compatibility on Bambu Lab Wiki.

1. If you print only single-color filament, we recommend using the Fixed Hotend (Induction Hotend) for printing.
2. If you need multi-color printing with the AMS, connect the AMS to the right-side Fixed Hotend.
3. If you want to use the second hotend for support-material printing, we recommend using the Liftable Hotend.
4. TPU85A is only supported on the right-side Fixed Hotend. TPU95AHF/90A is expected to be supported on the left-side Liftable Hotend starting from firmware version U2.
5. PET-CF / PPA-CF / PPS-CF are supported only on the left-side Liftable Hotend.
6. CF/GF-reinforced filaments are not compatible with stainless steel nozzles.

Compatibility

H2C and H2C Laser

Product Specifications

Max. Printing Temp.	350 ℃	Length	56.2 mm
Packaging Weight	0.015 kg	Packaging Size	606030 mm

Qidi Q2

Qidi Q2

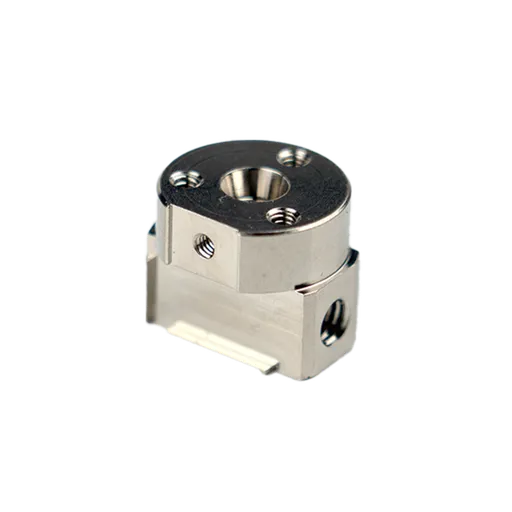

HeatBlock neXtG/neXtG Fiber
