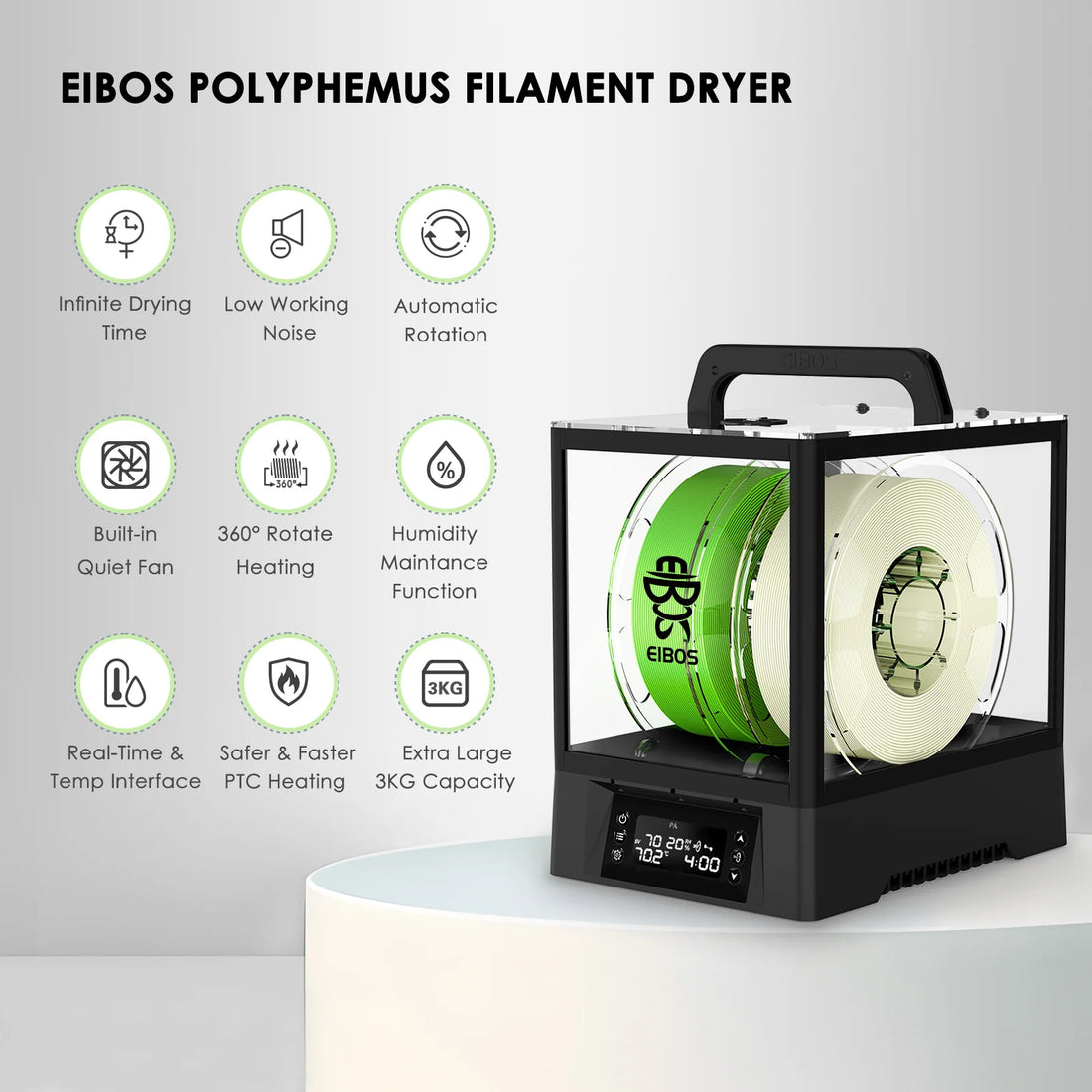

EIBOS: Polyphemus
We believe that the next generation of drying machines should have these key elements:

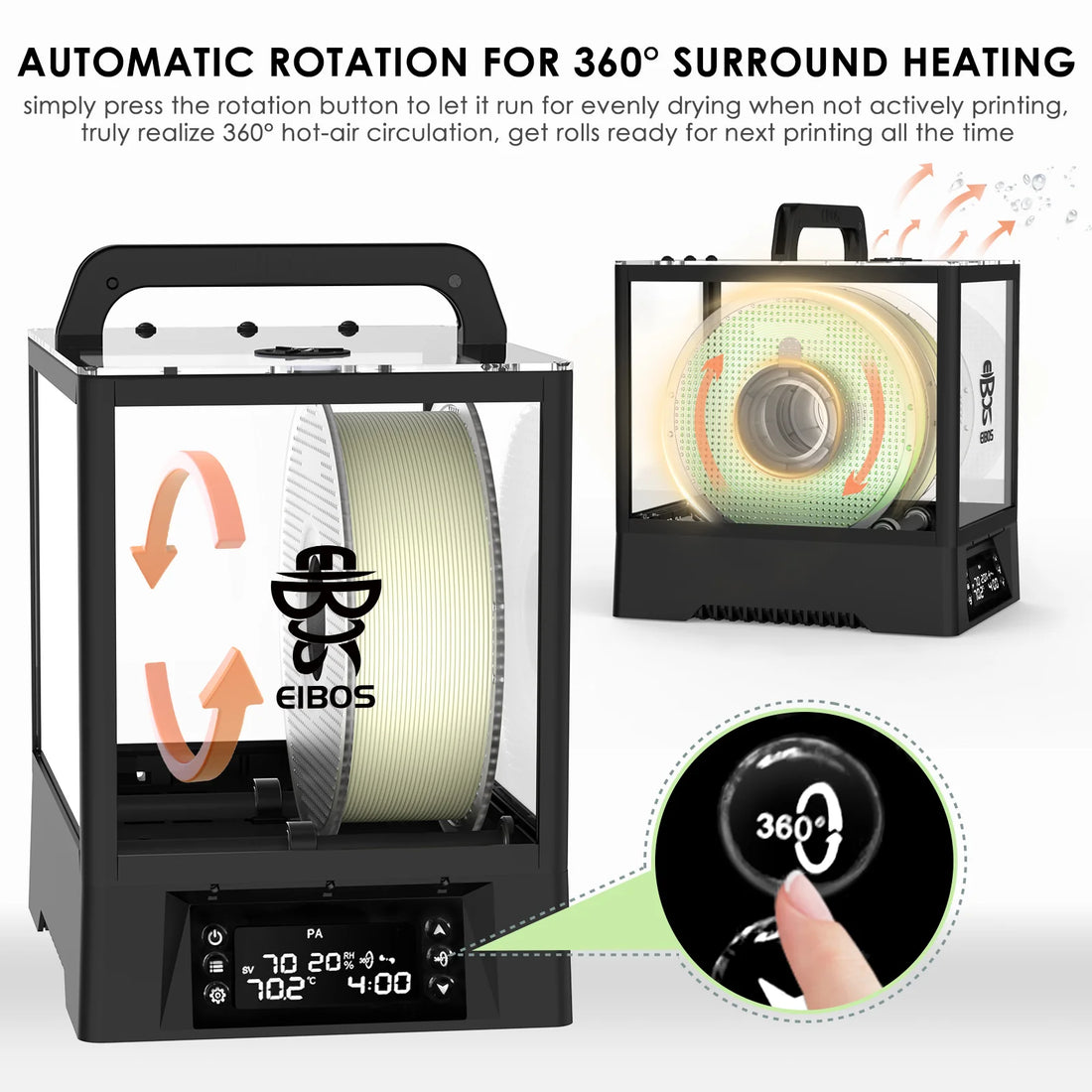

360 Rotating Head
Polyphemus is equipped with an advanced rotating motor that can achieve 360° automatic rotation and heating,the temperature difference between parts is only 1°C, which means consistent drying results no matter where the filament is located.
Regular Heating VS Rotating Heating
For Regular Heating, there is a temperature difference of 36℃ between the spool near the heating port and the spool far from the heating port. Othe other hand, for Rotating Heating, the temperature difference between different direction is only 1℃.

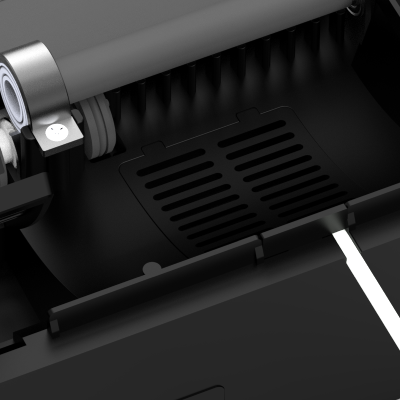

Multiple hot air outlet design
Adopting an innovative design with multiple hot air outlets to ensure that the hot air can be evenly distributed throughout the space. This uniform hot air distribution not only improves heating efficiency, but also greatly enhances safety and protects the integrity of the filament.
PTC heating components
Polyphemus uses efficient PTC heating elements, and the internal temperature can quickly reach 200 degrees Celsius. This technology improves drying efficiency and shortens waiting time. At the same time, the PTC element has a self-regulating temperature control function, which monitors the temperature in real time to avoid the risk of overheating.
V0 fireproof material
The shell is made of the highest fireproof grade V0 material, which is heat-resistant and fire-proof, ensuring safety and reliability in high temperature environments.
Multi-material drying

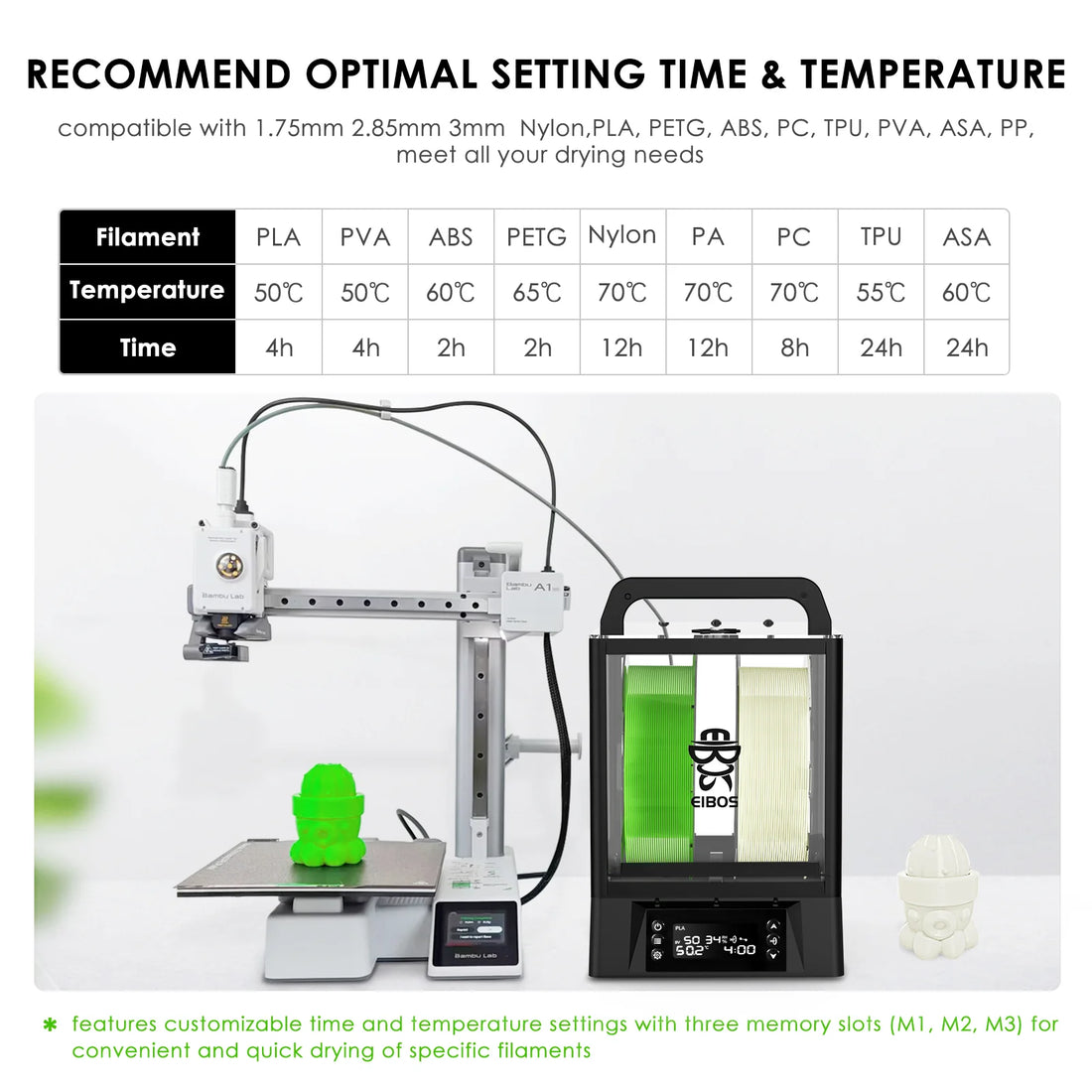

The program has built-in baking parameters for 9 commonly used 3D printing materials.The system also provides 3 customizable material slots (M1, M2, M3). Users can modify baking parameters, and the system will memorize them for quick access.
Automatic Humidity Control Function

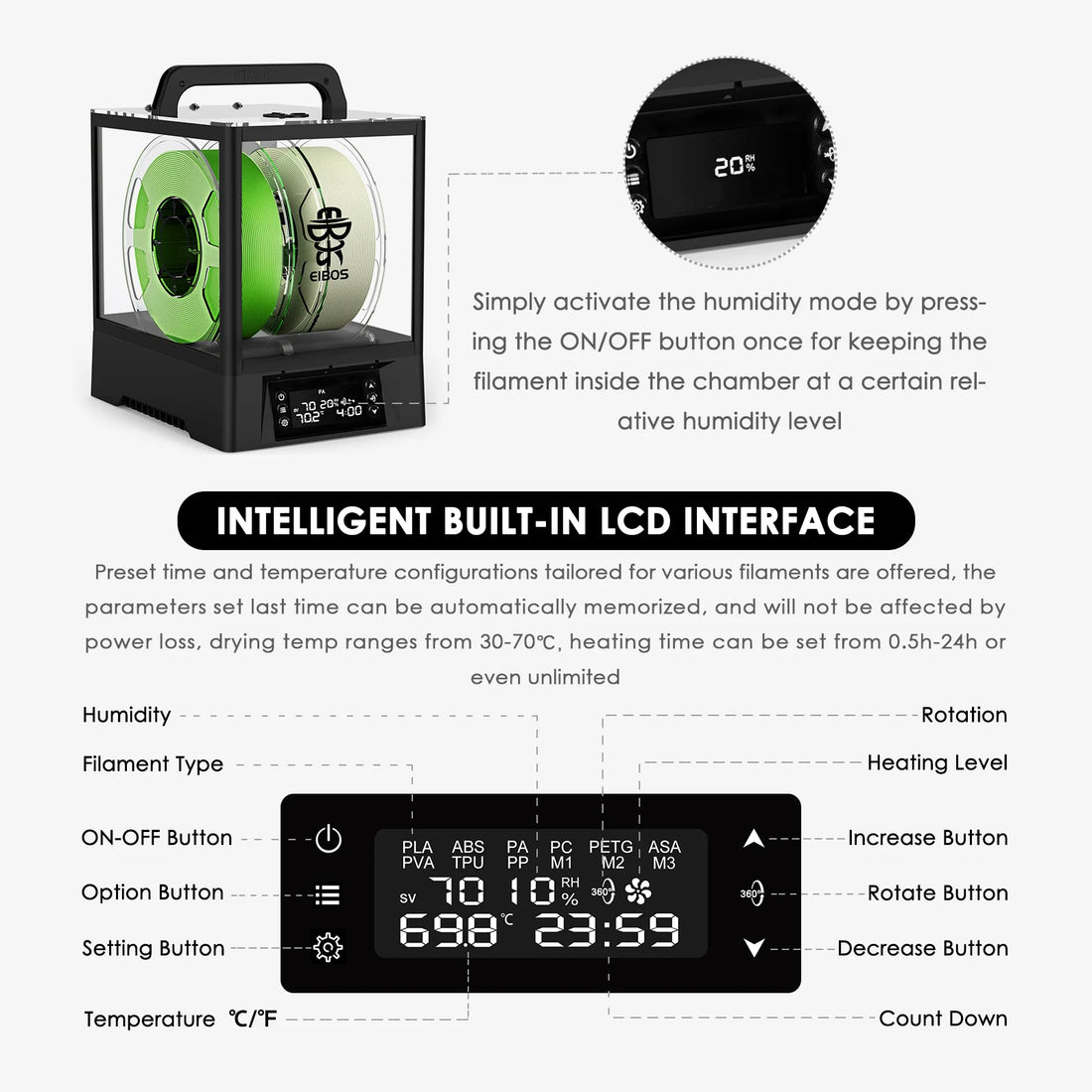

When heating is not required, you can activate the humidity mode and freely set the desired humidity level. The system will automatically activate the heating to regulate the internal humidity according to the set value. This ensures that the filament is always ready for printing.

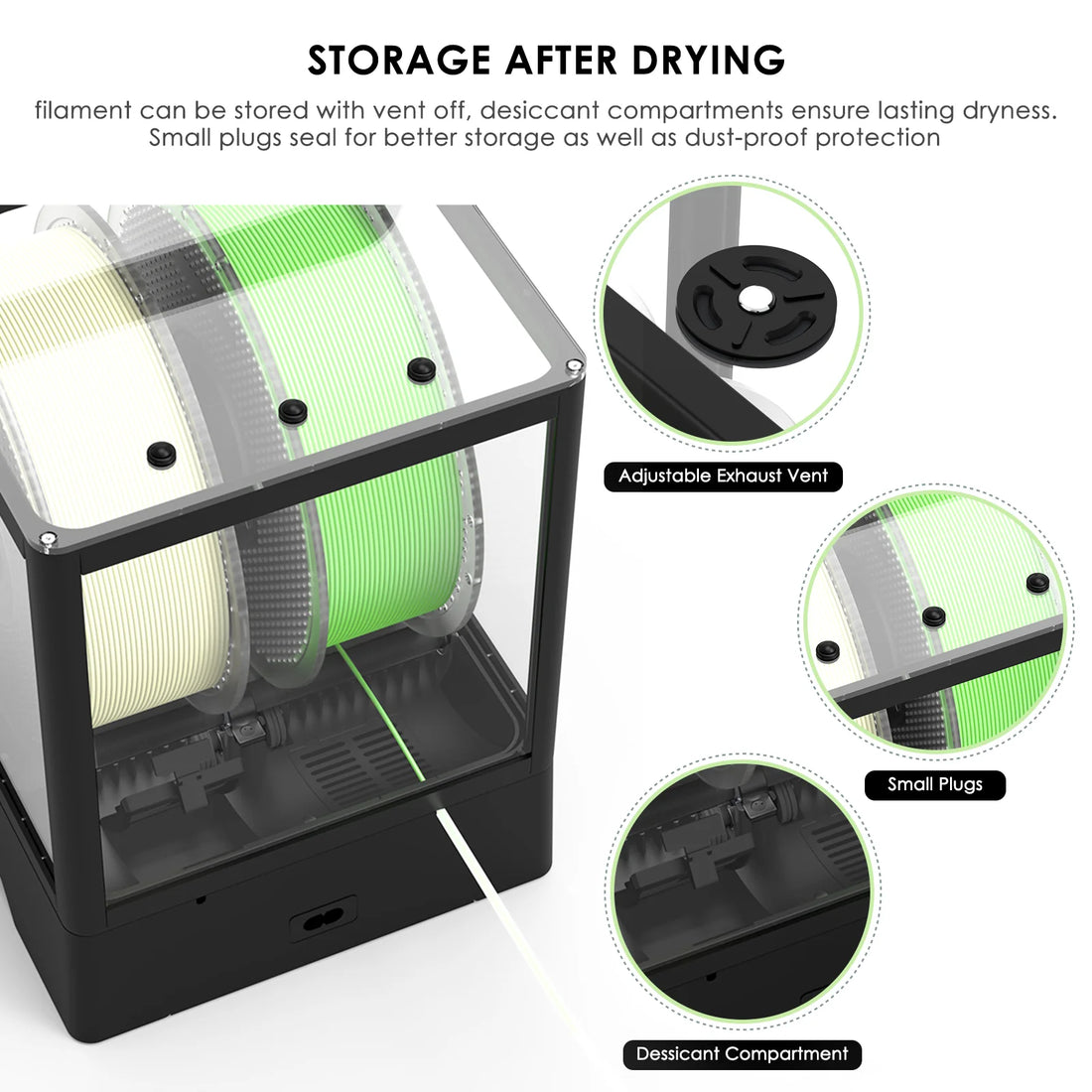

More elaborate design
Rotating exhaust port
Desiccant compartment
Small Plugs

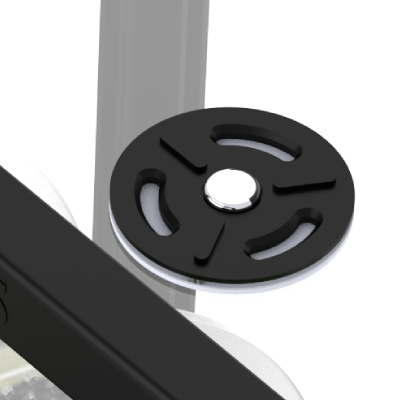

There is an adjustable exhaust vent on the top of the lid. When heating is not needed, you can close the exhaust vent to control the internal humidity and temperature.
POLYPHEMUS also provides a dedicated compartment where you can place desiccant to further ensure a dry environment for your filament.

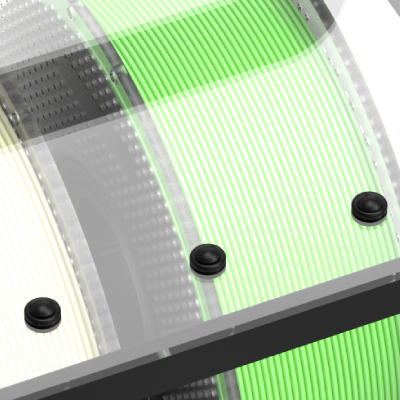

Comes with three silicone stoppers to prevent moisture from entering and help create the desired dry environment
Polyphemus Tech Specs
| Input | US:AC120V 60Hz EU/UK/AU:AC 230V 50Hz |
|---|---|
| Rated Power | 130W |
| Package Size | 330x250x160mm |
| Product Size | 275x205x317mm |
| Net Weight | 2.2kg |
| Total Weight | 2.9kg |

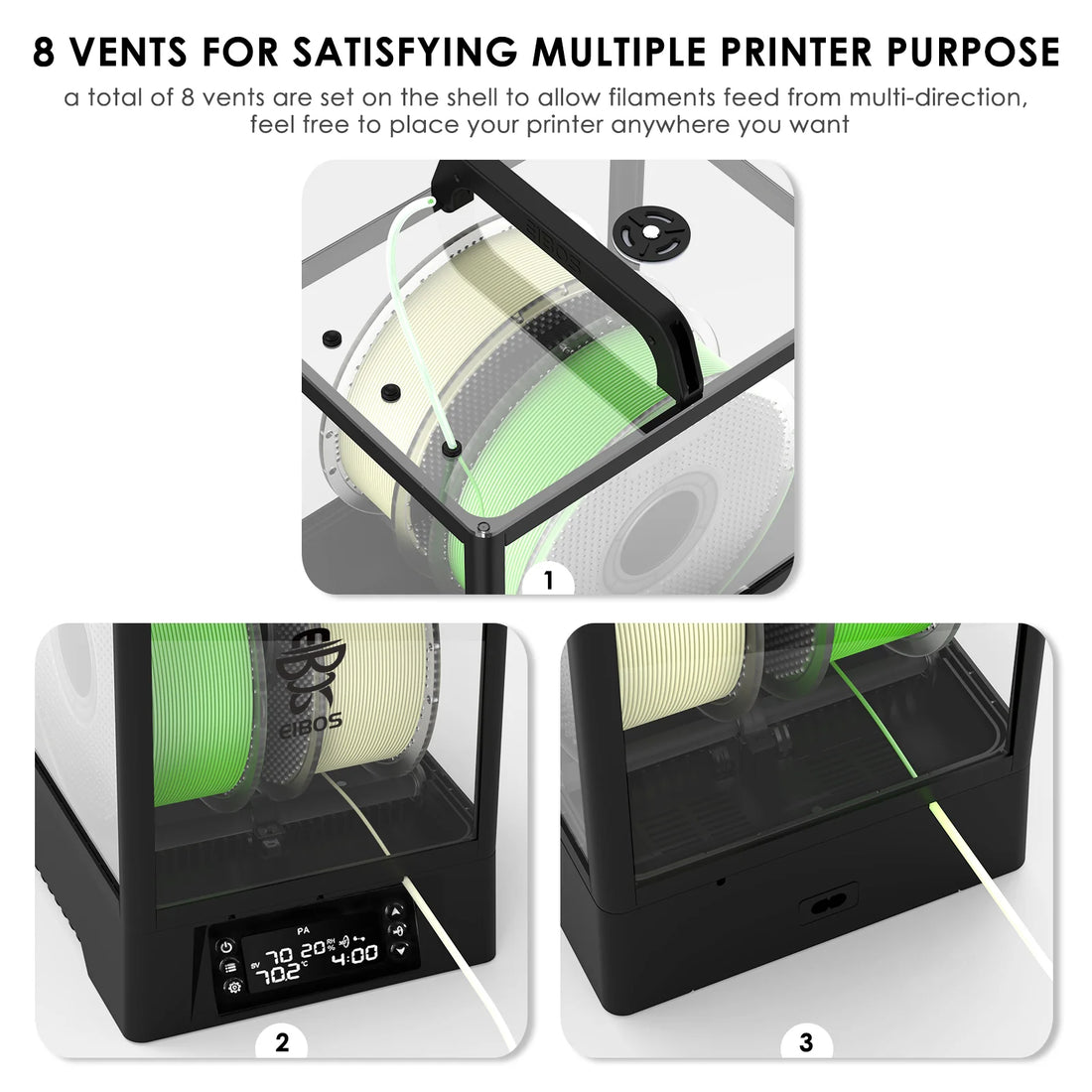

| Filament Outer Holes | 8 |
| Desiccant Tank | 2 |
| Power Loss Memory | Yes |
| Applicable Filament | PLA, ABS, PA, PC, PETG, ASA, PVA, PP, M1, M2, M3 |
| Humidity Range | RH10%~99% |
| Temperature Range | 30~80°C(Based on 25°C environment temperature) |
| Filament Size | ф1.75mm |
| Lifespan of Motor | 1500h (The motor is replaceable) |

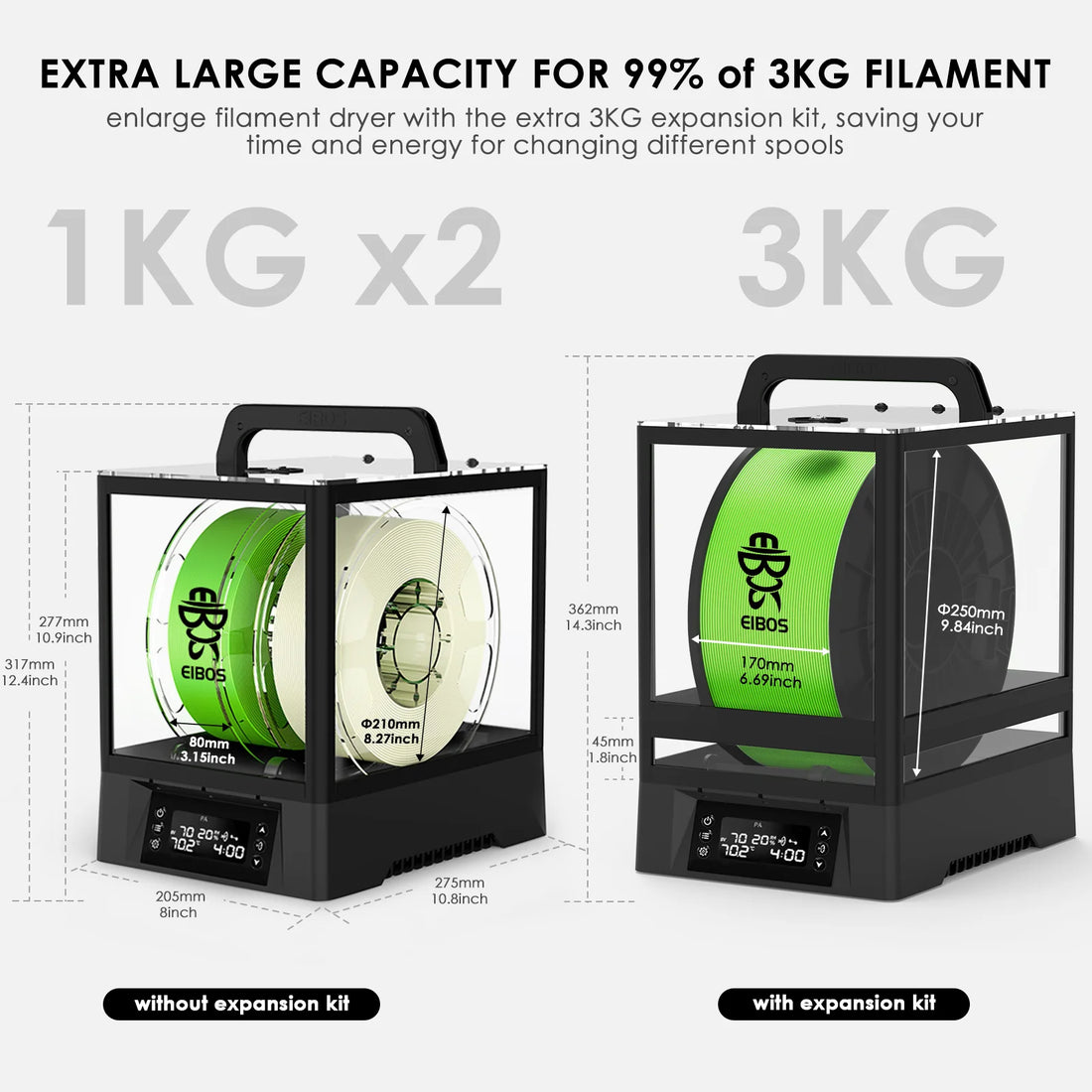

| Max Spool Size | Double Spools ф210x80mm Single Spool ф210x170mm By utilizing expansion parts, the capacity of the device can be increased to accommodate dimensions of up to ф250mm x 170mm. |
