What is it:

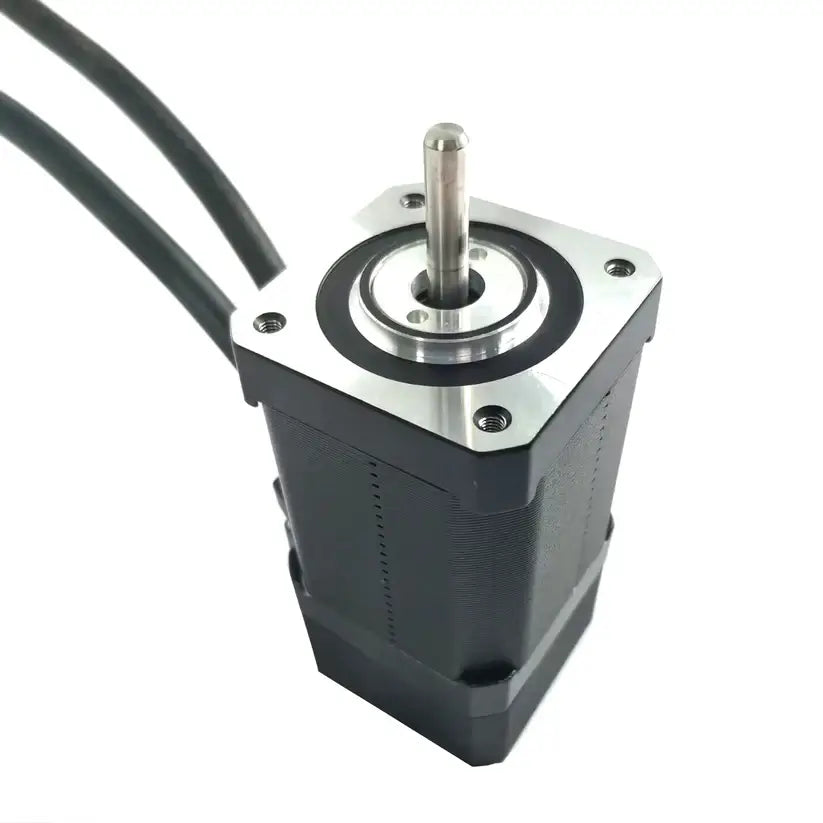

Closed loop stepper motor from LDO

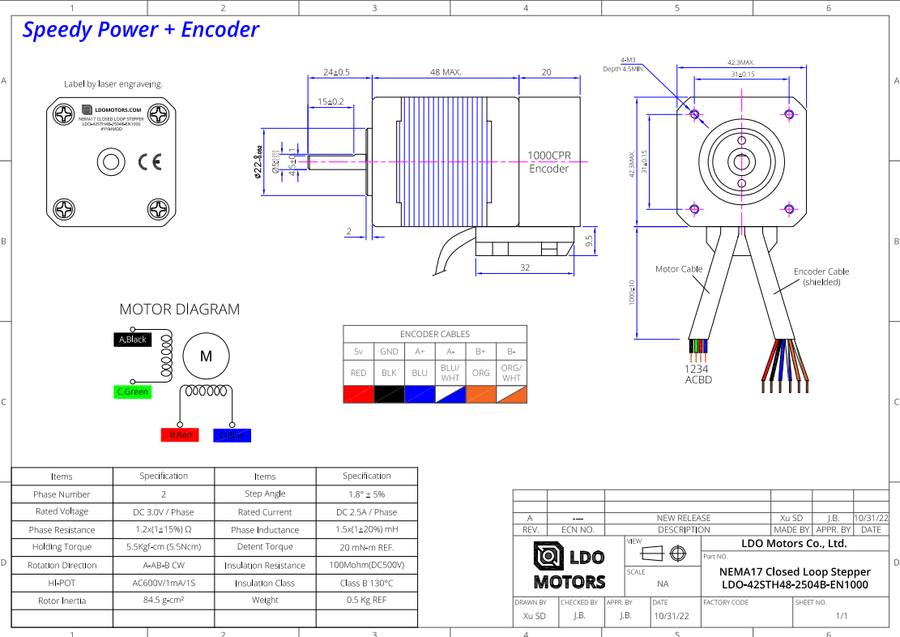

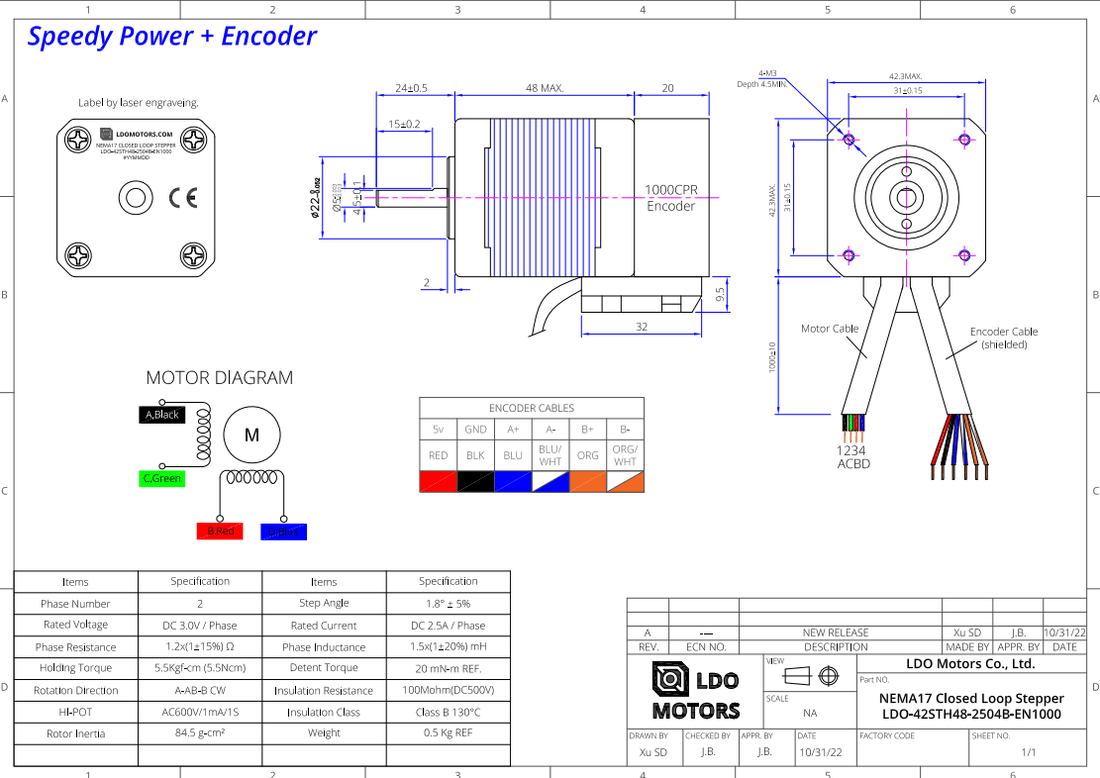

Specs:
- NEMA 17
- 1.8° Step Angle.
- 200 Steps Per Revolution.
- 2.5 Amp
- 5.5Ncm Holding Torque.
- 48mm Body. 20mm Encoder
- 22mm Output Shaft (5mm diameter) (15mm D-Shaped)
- Closed Loop
requires connection to an encoder channel on the board like this
Duet 3D
