What it is
HoneyBadger P-Series fans, these 3010 fans have a durable fan motor and high static pressure which can take on any modern toolhead Type. 24V capable fans

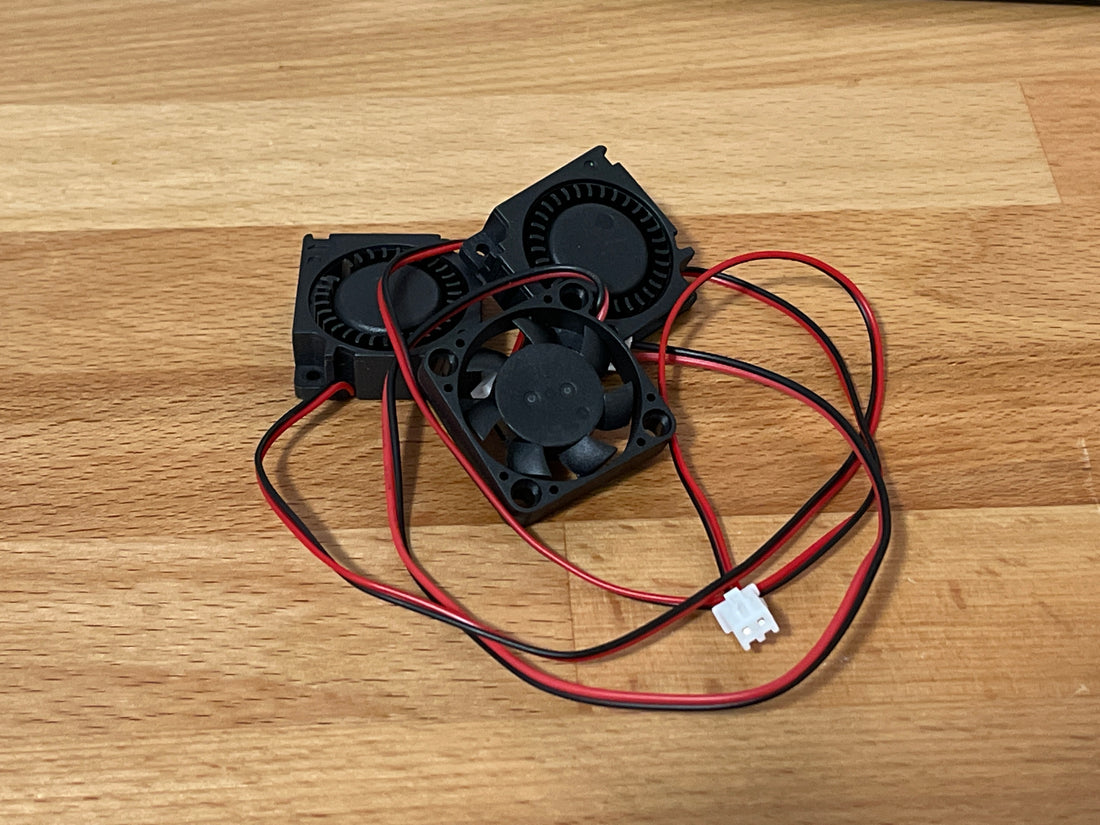

What is included:
- HB Performance 3010 Axial fan x1
- HB Performance 3010 Blower Fan x 2
Note: All fans are 24v, and designed for the Mini SB toolhead. V0.2 Bom mentions an additional 3010 fan used in the electronics which is not included in this kit.
Specs:
Model: 3010B-24V-13000 Construction type: Dual ball bearing Voltage: 24V Operating Voltage: 12~26.5 (VDC) Input Power: 0.75(W)±10% Speed: 13000 (RPM) ±10% Max Air flow: 3.13(CFM) Max Air Pressure: 15.18(mmH2O) Noise: 37.8（dBA） Insulation: Class A (105℃)
Model: 3010A-24V-13800 Construction type: Dual ball bearing Voltage: 24V Operating Voltage: 12~26.5 (VDC) Input Power: 1.44(W)±10% Speed: 13800 (RPM) ±10% Max Air flow: 5.89 (CFM) Max Air Pressure: 10.87 (mmH2O) Noise: 32.7（dBA） Insulation: Class A (105℃)
** check polarity of fans before plugging them in**
