What is it:

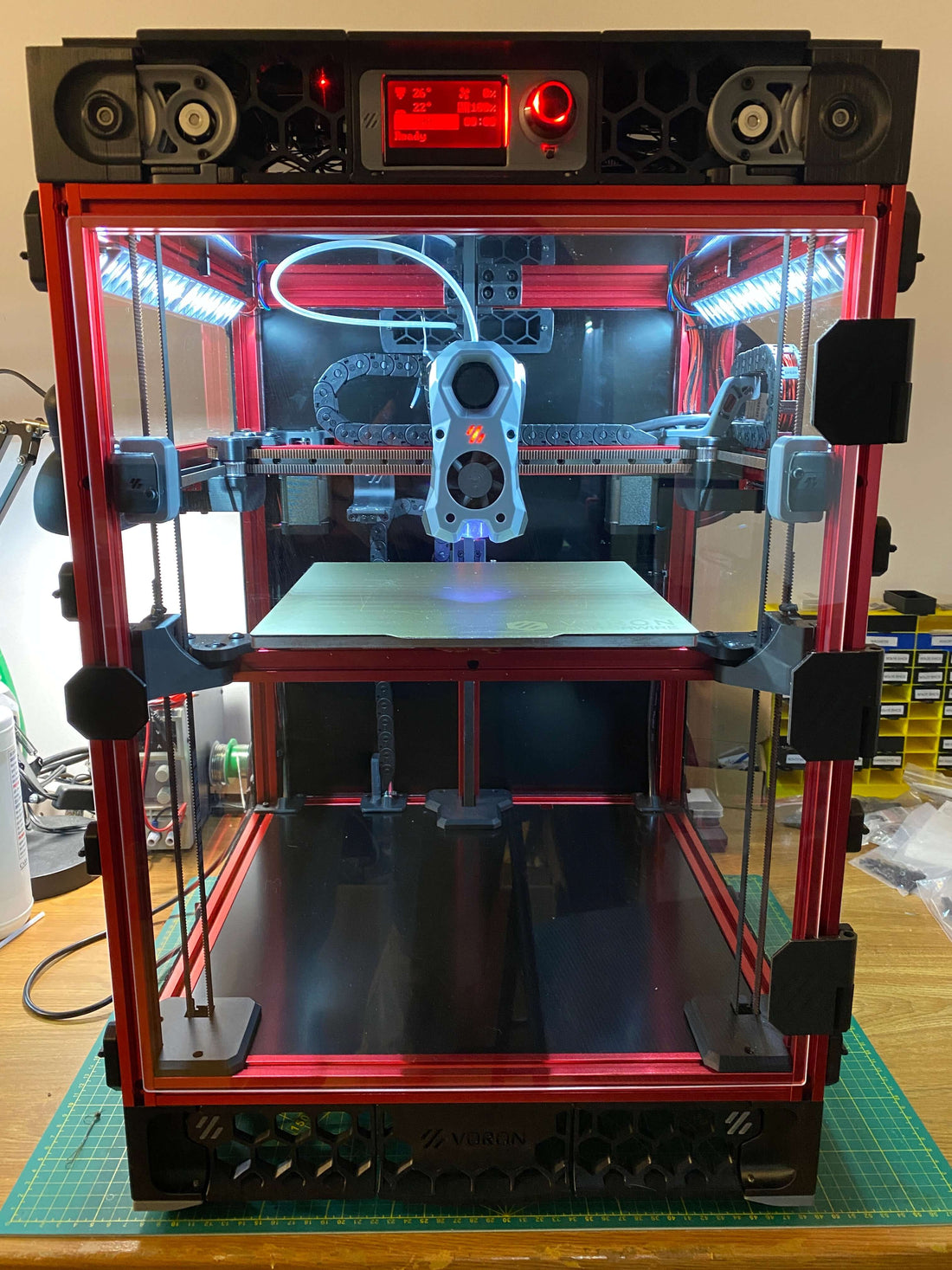

A mod of the Voron Trident that replaces the 3 leadscrews with belts and modified Z-Drives from a 2.4. This is in the very early stages of development and though a fully-functional printer has been built, some of the parts are not yet fully tested. The existing printer is producing excellent prints, though many changes will be coming in the following months.

This first version places the Low Voltage Electronics up top, though I do hope to create a version in the future which is more closely matched to a stock Trident Build. The second version will have the Z drives and low voltage electronics located on the bottom, same as in a standard Voron Trident or 2.4.

Link to Github

Preorder information - These are expected to arrive in the next 14-20 days around mid to late december.

Specs:

  • HB Nema 17 motors x3
  • Extra hardware from the BOM listed below
6mmx188mm GT2 Belt Loop 3
9MM 2GT Belt (Meters) 3.5
Pulley 2GT 16 Tooth, 6mm 3
Pulley 2GT 80 Tooth, 6mm 3
Pulley 2GT 20 Tooth, 9mm 3
Idler 2GT 20 Tooth, 9mm 3
5x60 D-Shaft 3
Bearing 625-2RS 9
M5x30 BHCS 3
M5x10 BHCS 12+
M5x40 SHCS 6
M3x16 SHCS 3
M3x40 SHCS 18
M3 Heatsets 20
M3x8 SHCS

Yes



What you need to source

  • printed parts
  • miscellaneous modifications to panels might be needed depending on which version you will run, at this time only top electronics version is available.
