What is it?

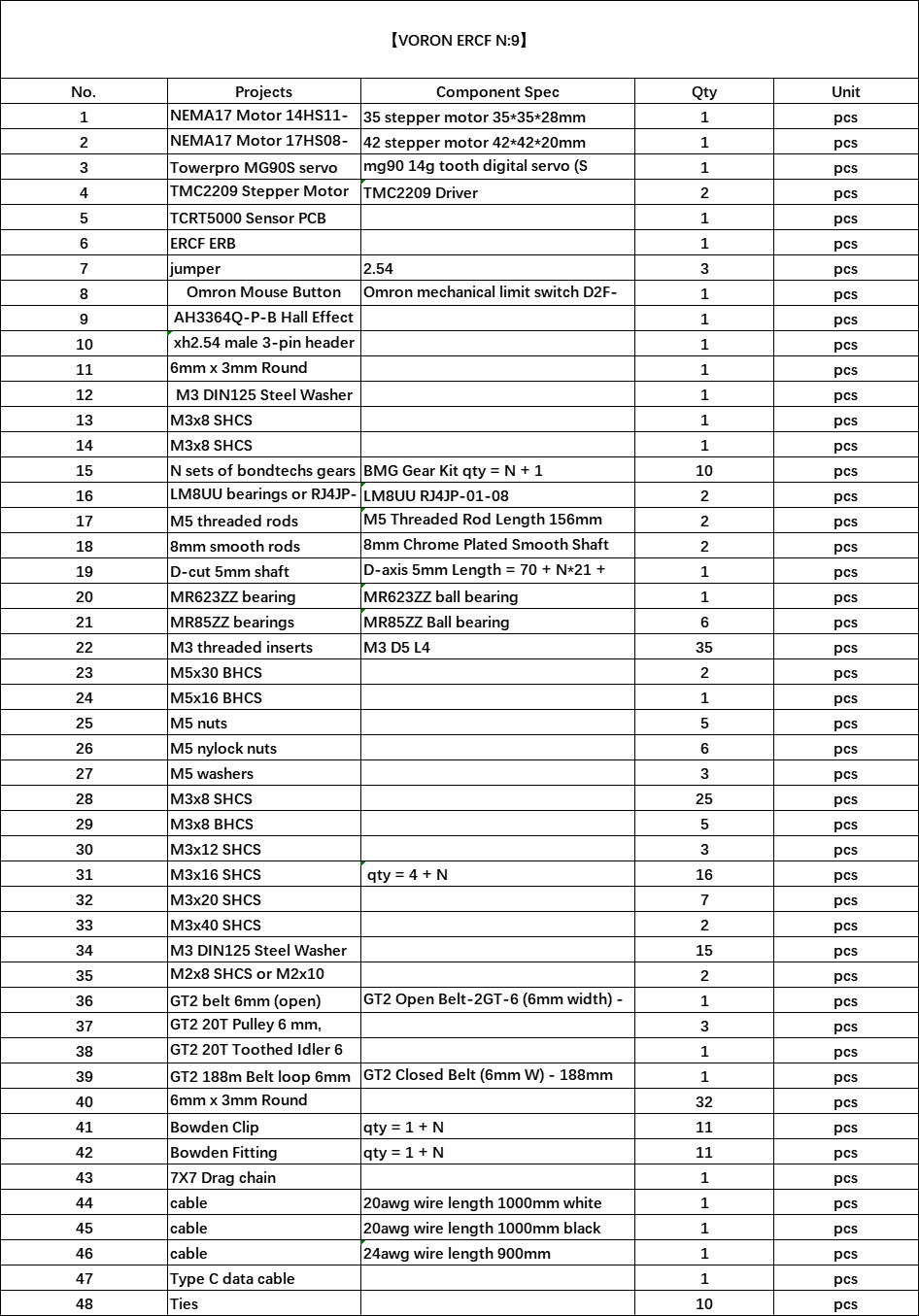

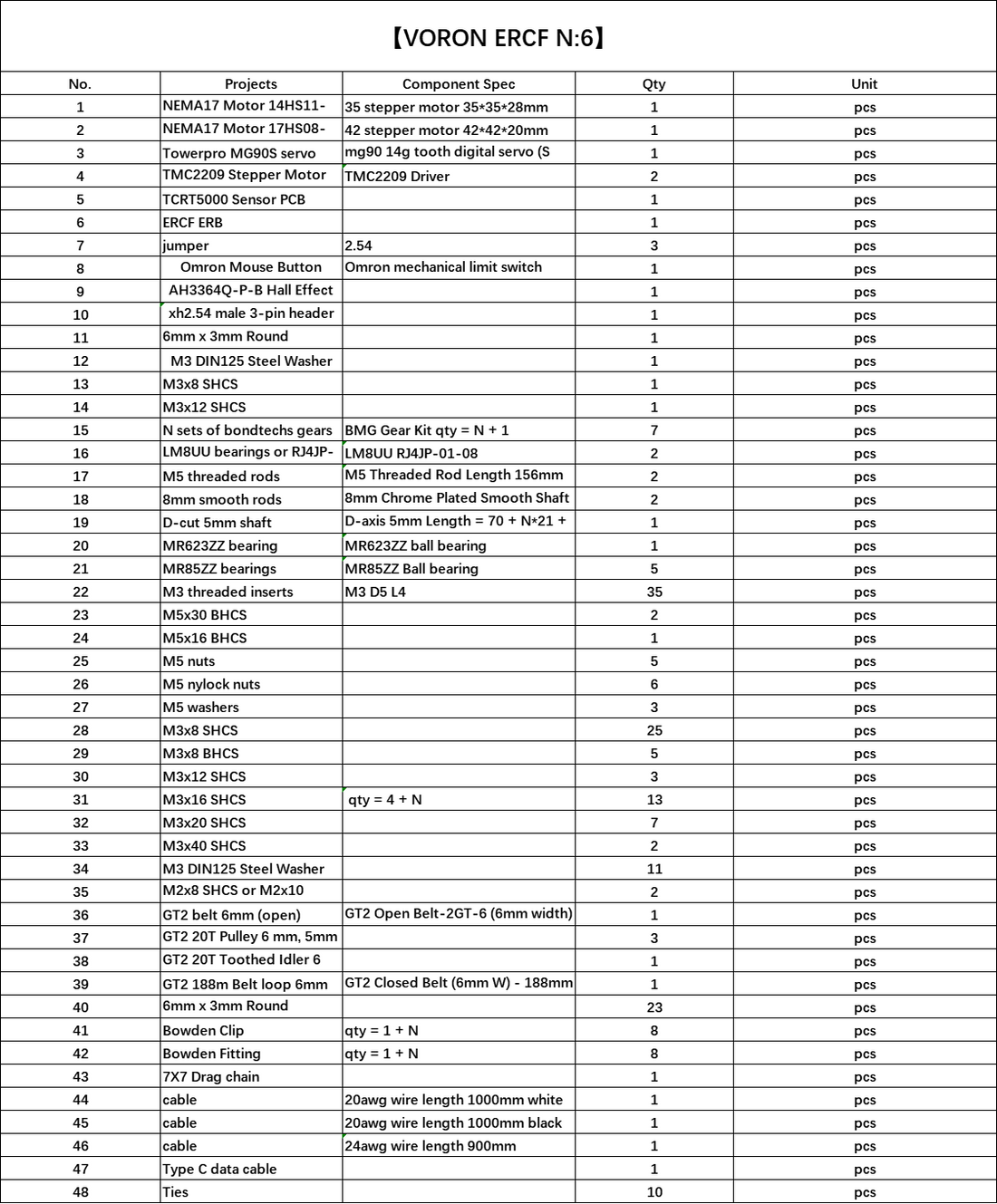

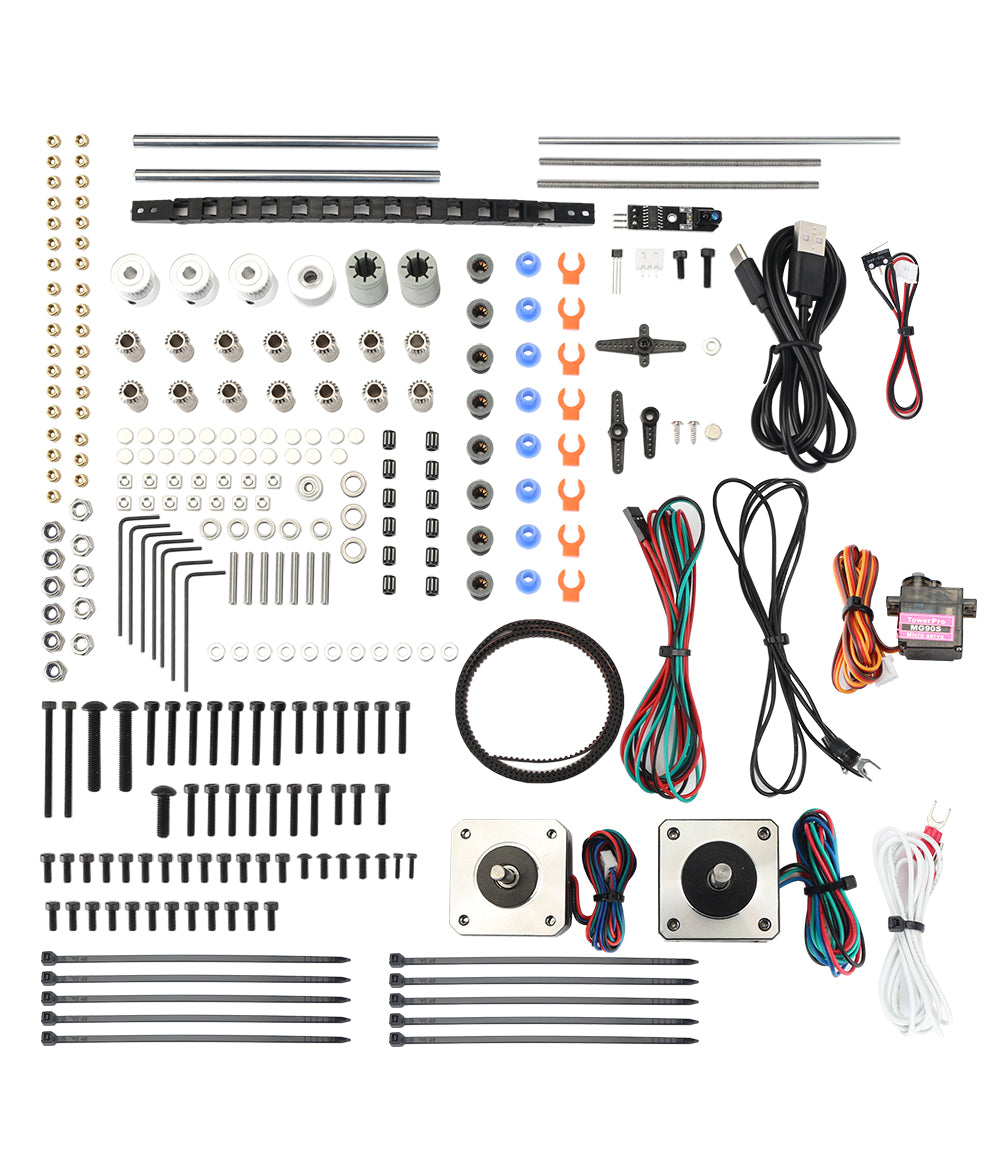

this kit includes all the parts you need to build an ERCF including the ERB Easy board (not pictured) and two tmc 2209 (not pictured). This will enable multi filament and multi color printing on Klipper Printers. Kit is manufactured by Fysetc.
What do i need to source?
- Printed parts
Carrot patches Available here (optional)
- PTFE tubing Available here
1.Compatible models: VORON Switch wire, VORON Trident, VORON 2.4 R2 can also be used on any 3D printer running Klipper and possibly RRF.

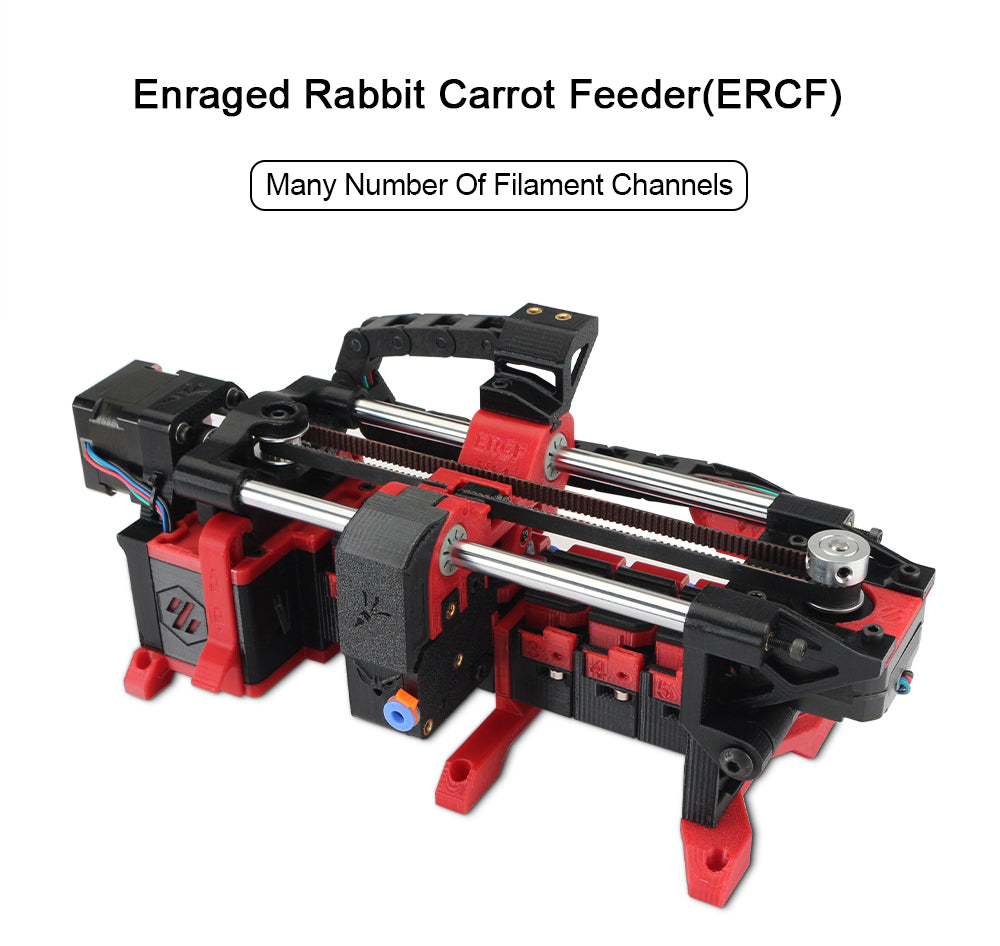

2.Product function description: Rabbit multi-color extruder system is a consumable switching device that can realize a single machine to automatically switch a variety of different consumables or materials to print models in the same printing process.
(1) It can realize automatic switching of consumables for multi-color printing, and can be compatible with a large number of consumables units)

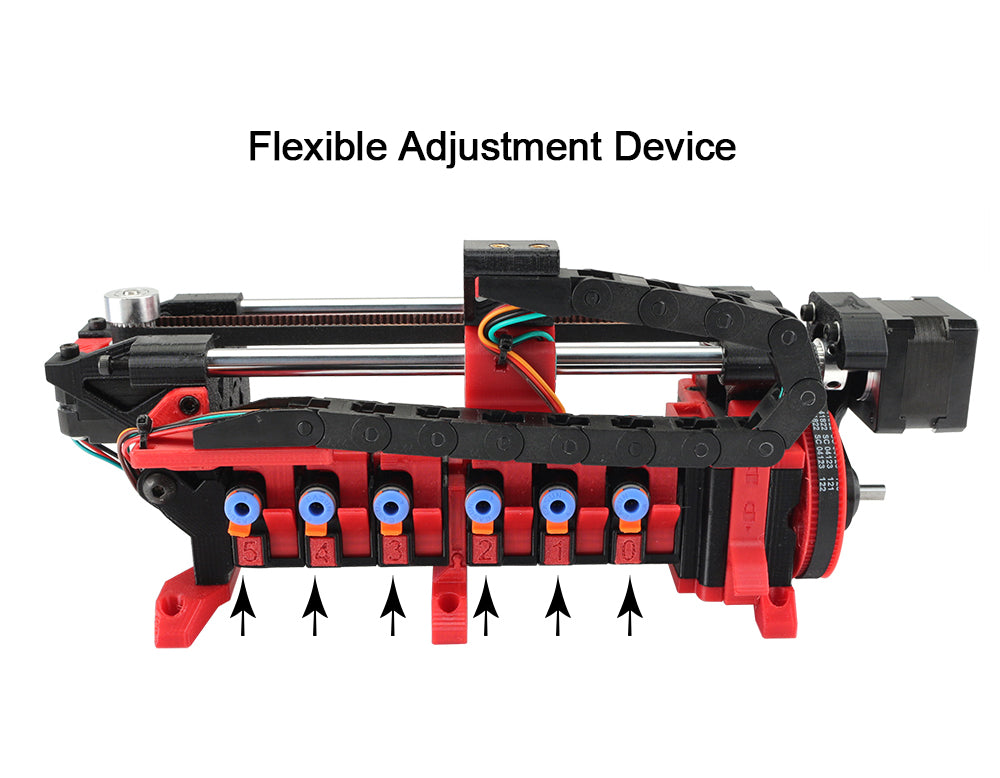

(2) The modular assembly method can flexibly adjust the number of consumable units that can be replaced by the device as needed

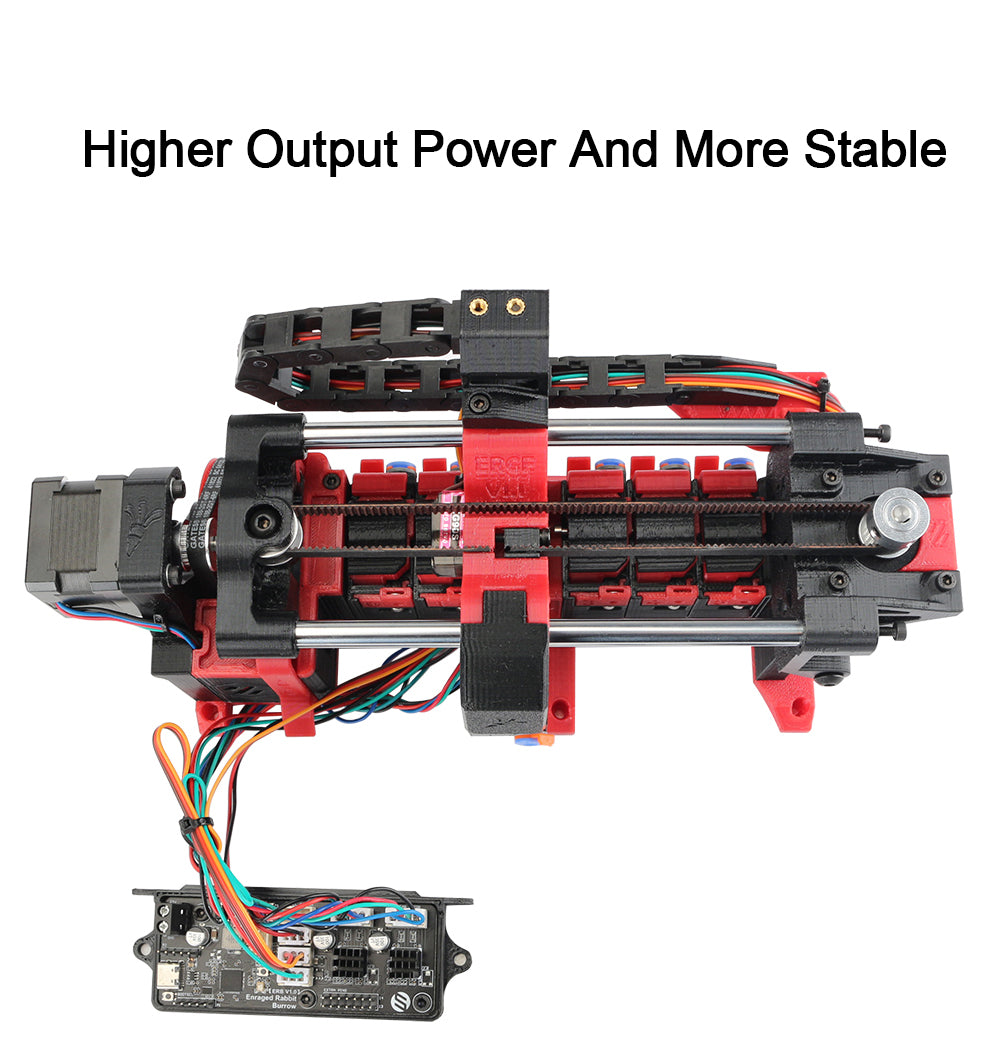

4.(1) The self-produced ERB module is selected for the hardware. Compared with other modules, the self-produced ERB module is based on the RP2040 MCU. Improved performance

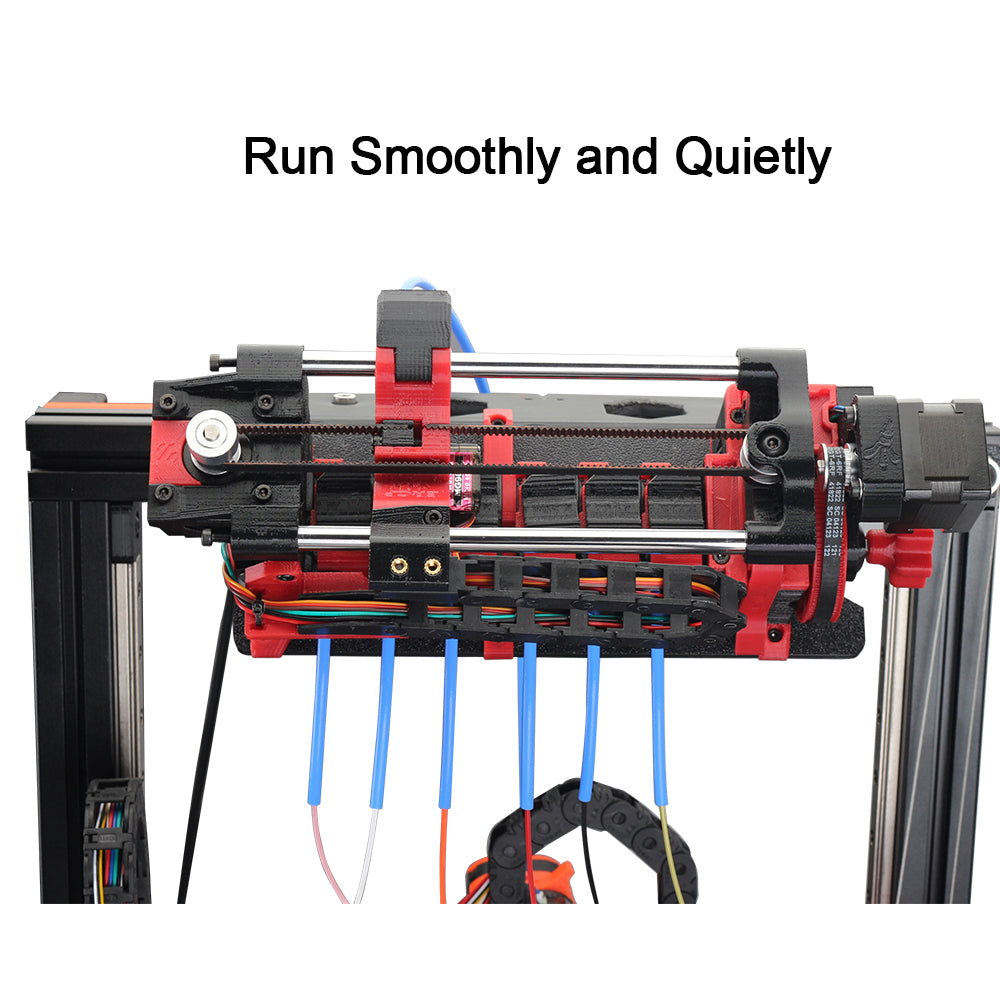

(2) The movement module part of the structure adopts chrome-plated optical shaft and engineering plastic bearing to make the device run smoothly and silently. The difference between the metal bearing is that the engineering plastic bearing and the optical shaft cooperate with a small gap and have a higher running accuracy.
